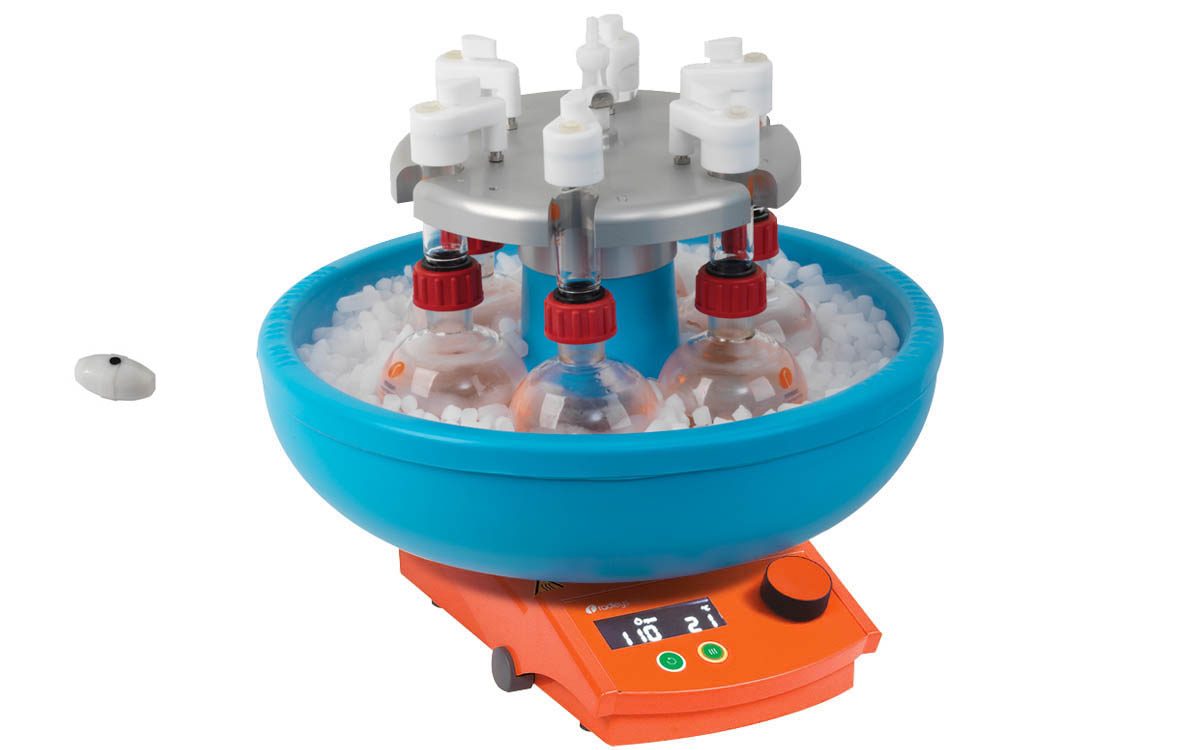

Cooled Carousel 6 Plus Reaction Station

The innovative Cooled Carousel 6 Plus allows chemists to perform sub-ambient reactions in a range of flasks from 5 ml to 250 ml with the option of an inert, moisture-free atmosphere.

Cooled Carousel 6 Plus Reaction Station

  • Simultaneously performs up to six cooled and stirred reactions to -78 ˚C
  • Powerful, even stirring – reservoir fits on to a Carousel stirring hotplate
  • Robust HDPE cooling reservoir is compatible with a wide range of cooling mixtures, including dry-ice/acetone for manually controlled cooling from ambient down to -78 ˚C
  • Round design makes all reaction flasks visible and allows easy addition of reagents and solvents, with no need to lean into the fumehood
Cooled Carousel 6 Plus Reaction Station

  • Insulated foam core maintains low temperatures for long periods, whilst protecting the stirrer from freezing. Also reduces condensation and ice formation on outer surfaces
  • HDPE lid keeps your reaction cooler for longer, minimises ice formation on your flasks (maintaining visibility of the contents) and prevents spitting from the cooling mixture
  • The robust HDPE reservoir is virtually unbreakable
The Cooled Carousel 6 met its requirements well. The outer of the plastic bath remained at a hand-touchable temperature throughout all experiments.Sutherland Research Group, Aston University

Key features

Cooled Carousel 6 Reaction Station
  1. Chemically-resistant Easy-On PTFE caps feature a quick-thread for fast attachment to the glass tubes and push-on connections to the stainless steel gas outlets

  2. Robust HDPE cooling reservoir is compatible with a wide range of freezing mixtures including dry-ice/acetone for manually controlled cooling from ambient to -78 ˚C

  3. Rare earth elliptical PTFE stirring bar provides powerful stirring and a deep vortex

  4. No electrical or moving parts ensures maintenance free operation. Easy to set up with minimal training time

  5. Carousel Tech Stirring Hotplate – powerful stirring with digital control

  6. Compact size has a small benchtop footprint and is easy to store

  7. Fits on all Carousel Stirring Hotplates

  8. Utilises the single rotating magnetic field of the hotplate stirrer to stir all the positions evenly and powerful

  9. Insulated foam core maintains low temperature for long periods, whilst protecting the stirrer from freezing. Also reduces condensation and ice formation on outer surfaces

  10. Round design makes all reaction flasks visible; with no need to lean into the fume cupboard

  11. Central inlet/outlet for vacuum and gas, combined with a radial gas distribution system and gas-tight PTFE caps allow reactions under an inert atmosphere

Easy-On PTFE reaction caps

Easy-On PTFE caps

The PTFE caps are an essential component of the Carousel 6 Plus. Manufactured from a chemically-resistant PTFE the caps are attached to the reflux tube/flask using a quick-thread and feature an Easy-On push connection to the radial gas system. The caps include an on/off valve for isolation and removal from the inert gas system. A replaceable silicone Suba-Seal septum allows the addition or removal of reagents or samples using a suitable syringe.
More info

Carousel 6 Plus Glassware

Wide range of flask sizes

Standard Flasks

  • Choice of sizes: 5 ml, 10 ml, 25 ml, 50 ml, 100 ml, 170 ml and 250 ml
  • Precision engineered round bottom design ensures an excellent fit with the Carousel’s wells, maximising heat transfer
  • Flasks feature a B24/B29 Rodaviss joint for connection to the detachable Reflux Tube
  • Reflux Tubes feature a quick-thread for an excellent gas tight seal up to 1 psi
  • Optional single piece 250 ml Long Neck design
    More info

Range

Cooled Carousel 6 Plus

RR99947   Cooled Carousel 6 Plus (Reservoir, Head, Stand + Cover)

Cooled Carousel 6 Plus Components

RR99501   Cooled Carousel 6 Plus Cooling Reservoir
RR99948   Cooled Carousel 6 Plus Head
RR99503   Cooled Carousel 6 Plus Stand
RR99515   Cooled Carousel 6 Plus Cover (with gas connectors)

Carousel 6 Plus Cooling Accessories

RR99905   Digital Thermometer (-250 °C to +400 °C) and 200 mm Probe
RR99906   Digital Thermometer (-250 °C to +400 °C)
RR99907   200 mm Temperature Probe
RR99908   Dry Ice Scoop
RR99909   Cold Temp. Apron 1060 mm long Waterproof
RR99910   Protective Faceshield
RR98024   Protective Cold Temperature Gloves

RR71505   Cooling Protection Kit
Comprising of the following:
1 x RR99909 Cold Temp. Apron 1060 mm long Waterproof
1 x RR99910 Protective Faceshield
1 x RR98024 Protective Cold Temperature Gloves
