Efficiency through automation

Save time
Multiply your daily throughput
Reduce your costs

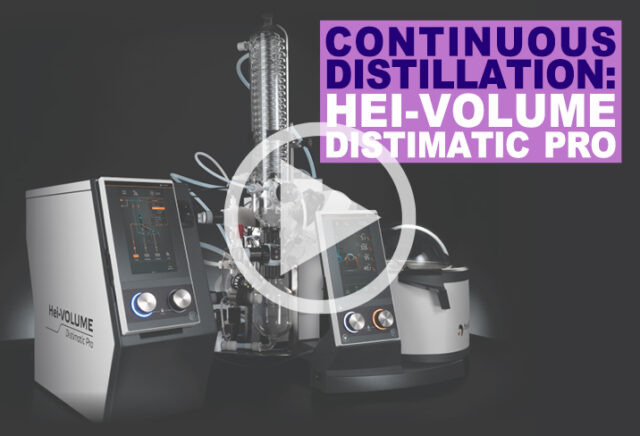

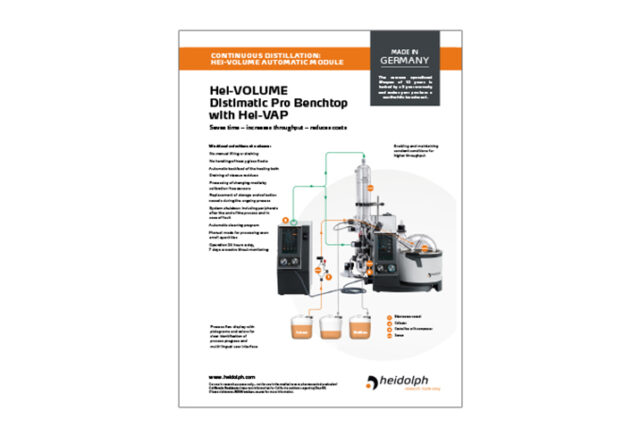

Distimatic Pro Functional Principle

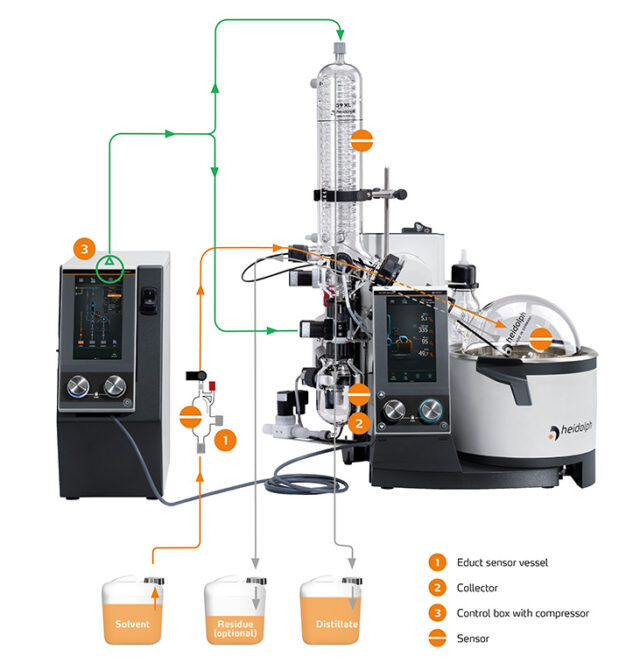

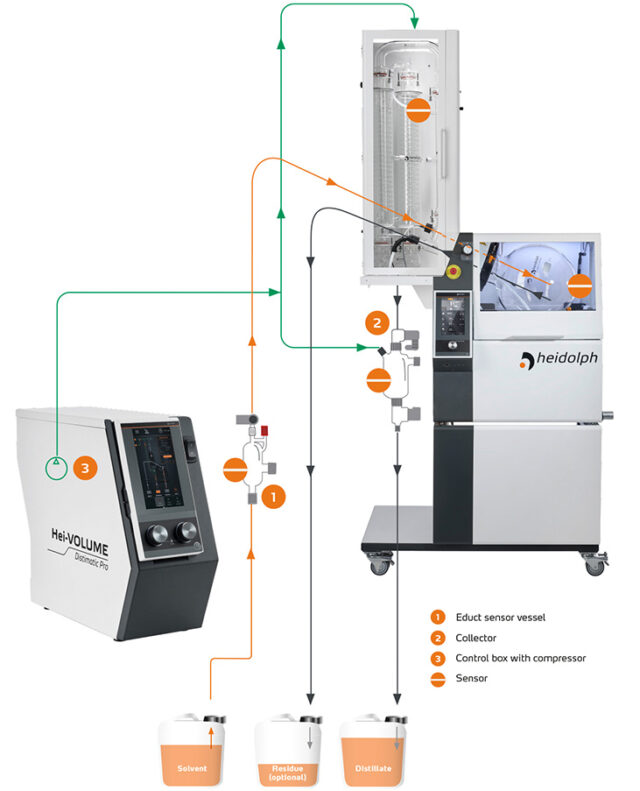

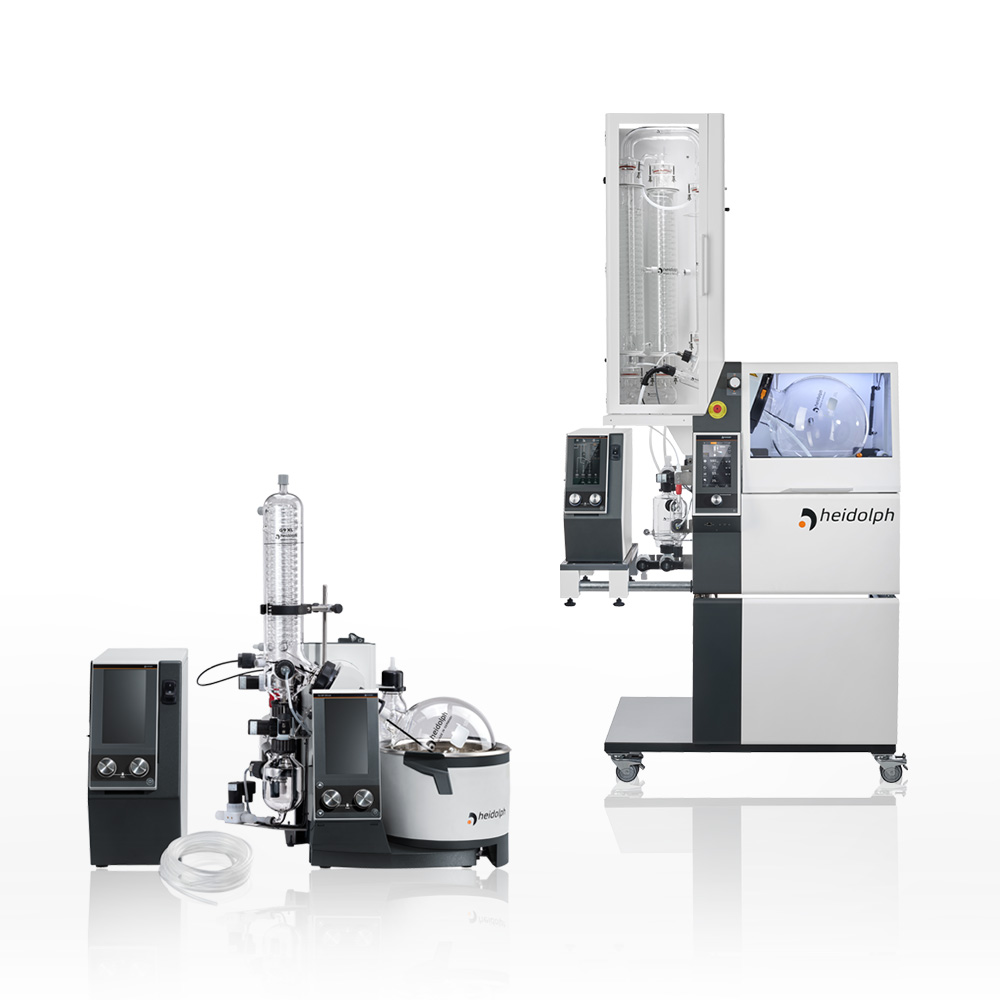

The innovative Hei-VOLUME Distimatic Pro module consists of the following main components:



  • The control box with integrated compressor and control panel
  • The original educt sensor vessel
  • The level sensor in the evaporating flask
  • The collector with condensate cooling



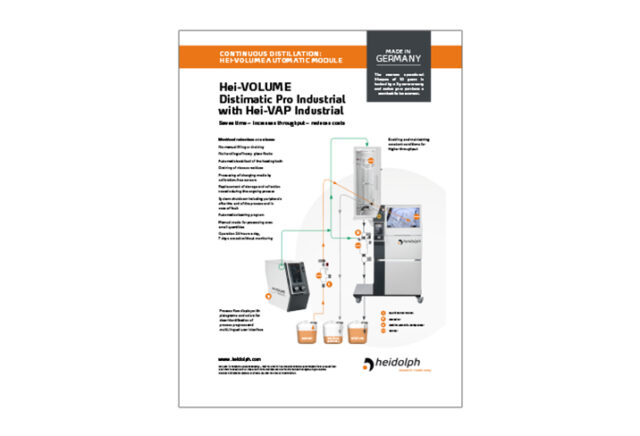

The Distimatic Pro module functional principle



The automatic filling and refilling of the evaporation flask is done via the system’s vacuum. Due to the negative pressure in the rotary evaporator, new medium is fed in as soon as the valve on the original educt sensor vessel opens. The sensor detects when the educt is empty and turns off the system. You can easily replace the vessel from which you want to refill while the process is in progress.

The condensate from the evaporation collects in a collector vessel with cooling, which replaces the receiving flask on the rotary evaporator. The cooling prevents undesired boil-up of volatile solvents. The contents of the collector are emptied by means of overpressure under sensor control. The collector vessel is ventilated separately for this purpose and once it is empty, it is evacuated again before the condensate valve to the rest of the system opens again and the distillate continues to be collected.

In the Hei-VOLUME Distimatic Pro 24/7 version, the concentrate left in the evaporating flask can be automatically emptied when evaporation is finished. To do this, the entire system is ventilated and the concentrate is emptied by means of overpressure. Heating tape for draining off the residue is available as an opiton for discharging viscous media.

For safety a cut-out sensor, which is screwed into the glassware, monitors the process and stops the system in the event of a fault. You can also purchase overflow sensors for the condensate and residue collection containers – they switch off the system as soon as the container is full. This can be used in combination with our canisters — thanks to the specially designed screw connection, the sensors are optimally positioned.

With the exception of the level sensor that can be adjusted for process optimization, no adjustment of the sensor system is necessary when changing solvent media. The Hei-VOLUME Distimatic Pro module reliably detects the entire spectrum, regardless of the polarity of your solvent. This makes processing a wide variety of media easy.

The Hei-VOLUME Distimatic Pro automatic module is available for Heidolph large-scale rotary evaporators in two versions: Hei-VOLUME Distimatic Pro and Hei-VOLUME Distimatic Pro 24/7(with residue drainage).

  • Operation via a removable control panel with a colour touchscreen

  • Process parameters can be saved and exported via USB

  • Variety of modes (sensor or time-controlled, manual mode for processing small batches, rinsing program)

  •  The screen can optionally be locked with a PIN code to prevent accidental changing of the values

  • Automatic refill of the evaporation flask and continuous automatic discharge of condensate

  • Bumping is eliminated by continuously feeding small volumes into evaporating flask

  • Applications are completed in an automated and unattended process giving solvent separations of nearly 100%

  • In case of an emergency the complete system will power off entirely

  • Compatible with all Heidolph large-scale rotary evaporators

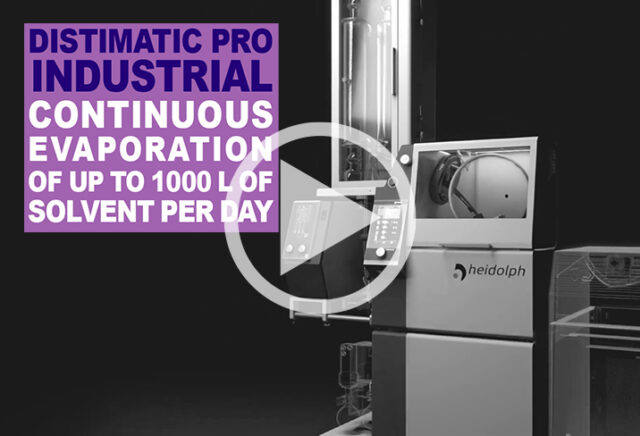

Hei-VOLUME Distimatic Pro IndustrialHei-VOLUME Distimatic Pro 24/7 Industrial
CompatibilityHei-VAP Industrial A, A1, A2 and R glasswareHei-VAP Industrial A, A1, A2 and R glassware
Automatic refill of sample
Automatic discharge of condensate
Automatic drainage of residue
Total power multiple socket3,500 W3,500 W
Emergency-Stop button
Condensate DischargePositive pressure from internal compressorPositive pressure from internal compressor
Residue Pumpdiaphragm pump
Protection class DIN EN 60529 – Automatic moduleIP 54IP 54
Protection class DIN EN 60529 – Residue pumpIP 65

Automatic Module Hei-VOLUME Distimatic Pro

591-61210-00 – Hei-VOLUME Distimatic Pro Industrial with adaptor for A-series glassware

591-61220-00 – Hei-VOLUME Distimatic Pro Industrial with adaptor for R glassware

Hei-VOLUME Distimatic Pro 24/7 Industrial

591-61110-00 – Hei-VOLUME Distimatic Pro 24/7 Industrial with adaptor for A-series glassware

591-61120-00 – Hei-VOLUME Distimatic Pro 24/7 Industrial with adaptor for R glassware

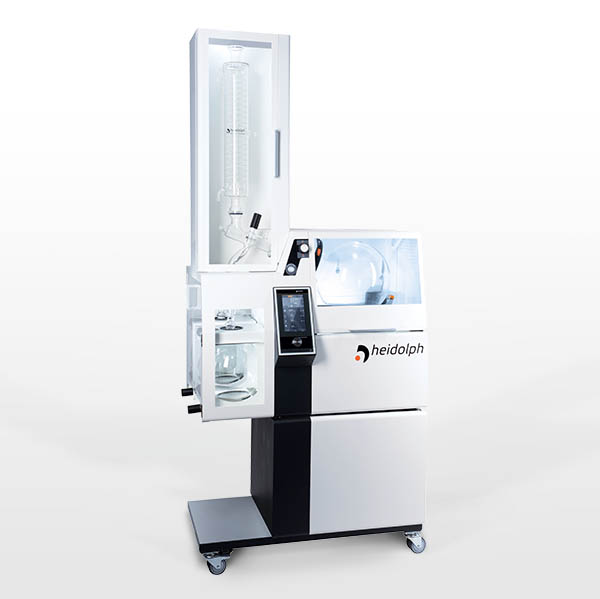

Hei-VAP³ Pro Industrial Packages

The packages include:

  • Hei-VAP Industrial large-scale rotary evaporator with substructure: With 20 L rotary flask and automatic bath refill for unattended and continuous use. The substructure makes the rotary evaporator easily accessible and movable all around and ensures an optimal working height.
  • Hei-VOLUME Distimatic Pro Industrial automatic module with adapter suitable for the glassware: For the automated filling of the rotary flask and the overpressure drainage of the condensate



518-11163-00 – Hei-VAP³ Pro Industrial High Boiling Package (especially for high-boiling solvents)

Also includes:

    • Glassware R (without receiving flask and distributor): For efficient evaporation of high-boiling solvents such as xylene, DMF or DMSO
    • With shut-off valve for operating the rotary evaporator as a reflux reactor. A condenser with ascending condensation (condensation surface: 0.6 m²)



518-14162-00 – Hei-VAP³ Pro Industrial Solvent Recovery Package

Also includes:

  • Glassware A1 (without receiving flask and distributor): Evaporation and clean separation with maximum efficiency. Suitable for the most common solvents (including acetone, hexane, ethanol and water)
  • A riser tube for optimal separation, as well as a condenser with descending and a condenser with ascending condensation (condensation surface: 1.2 m²)

Hei-VAP³ Pro Industrial 24/7 Packages

The packages include:

  • Hei-VAP Industrial large-scale rotary evaporator with substructure: With 20 L rotary flask and automatic bath refill for unattended and continuous use. The substructure makes the rotary evaporator easily accessible and movable all around and ensures an optimal working height.
  • Hei-VOLUME Distimatic Pro 24/7 Industrial automatic module with adapter suitable for the glassware: For the automated filling of the rotary flask and for overpressure drainage of condensate and residue.



518-14166-00 – Hei-VAP³ Pro Industrial 24/7 Foaming Package Package

Also includes:

  • Glassware A2 (without receiving flask and distributor): Evaporation and clean separation of foaming media with maximum efficiency. Suitable for most common solvents (including acetone, hexane, ethanol and water)
  • An expansion vessel as a foam brake, as well as a condenser with descending and a condenser with ascending condensation (condensation surface: 1.2 m²)



518-11165-00 – Hei-VAP³ Pro Industrial 24/7 High Boiling Package

Also includes:

  • Glassware R (without receiving flask and distributor): For efficient evaporation of high-boiling solvents such as xylene, DMF or DMSO.
  • With shut-off valve for operating the rotary evaporator as a reflux reactor. A condenser with ascending condensation (condensation surface: 0.6 m²).



518-14164-00 – Hei-VAP³ Pro Industrial 24/7 Solvent Recovery Package

Also includes:

  • Glassware A1 (without receiving flask and distributor): Evaporation and clean separation with maximum efficiency. Suitable for most common solvents (including acetone, hexane, ethanol and water).
  • A riser tube for optimal separation, as well as a condenser with descending and a condenser with ascending condensation (condensation surface: 1.2 m²).
