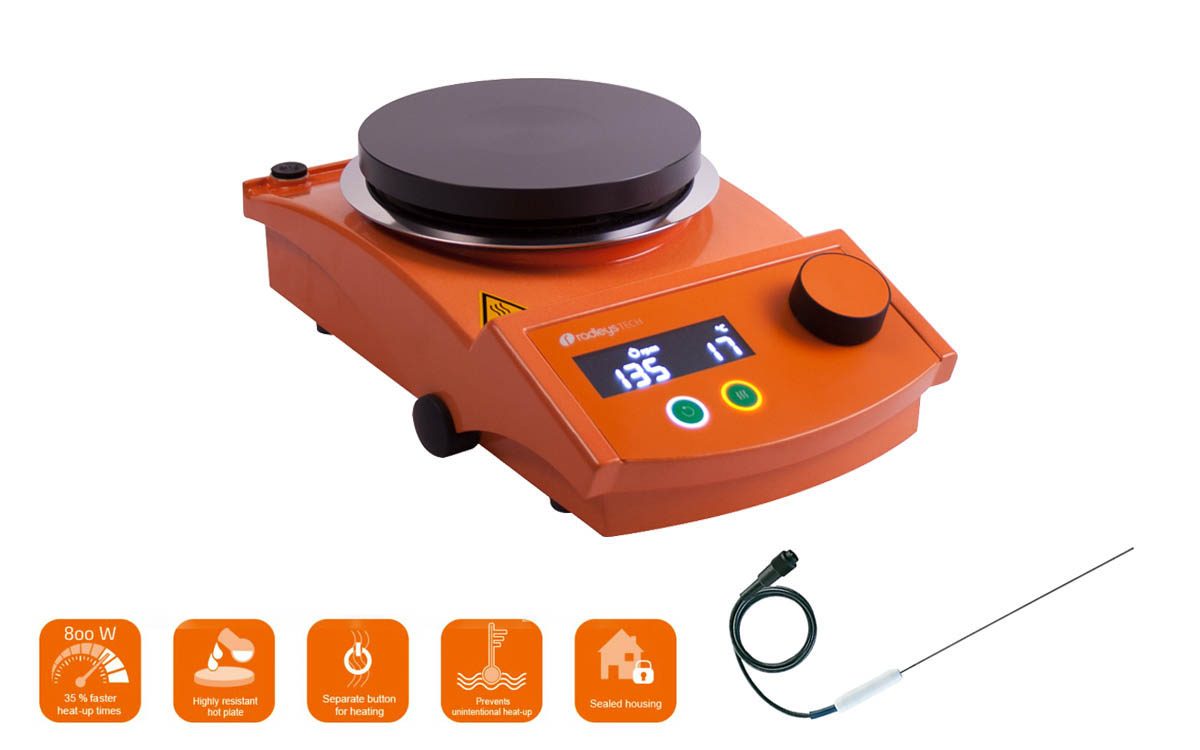

Carousel Stirring Hotplates

The unique Kera-Disk heating plate comprises aluminum for fast heating times and a wafer-thin ceramic coating to make the heating plate both chemically and scratch resistant.

  • Choice of three models

    Each offering improved safety, ease of use and faster heat-up times.

  • Unique Kera-Disk® heating plate

    Aluminium top plate allows for rapid heat transfer for fast heating. High performance, glass ceramic top coating is resistant to chemicals and scratches.

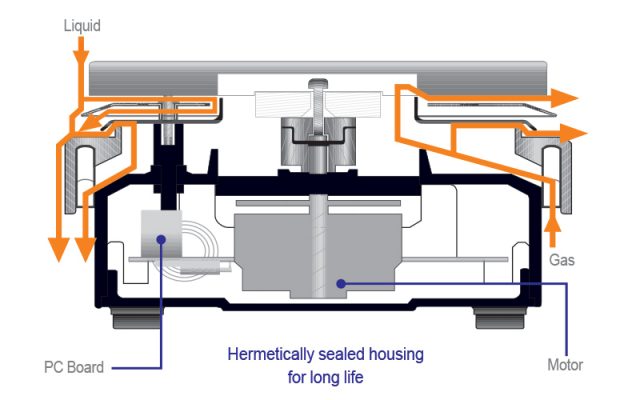

  • Sealed housing

    The innovative, hermetically sealed housing helps prevent internal corrosion from aggressive liquids or vapours. Increases the lifespan and reduces maintenance and repairs.

  • Suitable for unattended operation

    Designed and certified to conform to DIN EN 61010-1:2001 and DIN EN 61010-2-010:2014 for continuous, unattended operation.

Carousel Stirring Hotplate range

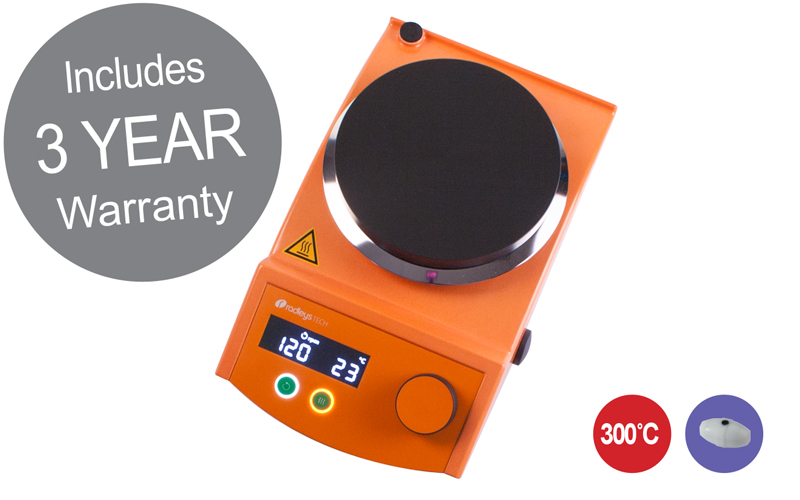

Carousel-Stirring-Hotplate-2

Carousel Stirring Hotplate Features

  • 3 Year Warranty
  • 800 Watt heating power – heats faster
  • Hotplate temperature range: 20 to 300 °C
  • Pt1000 temperature sensor for all models
  • Speed range: 30 to 1400 rpm
  • Chemically resistant Kera-Disk top plate coating
  • 135 mm top plate diameter
  • Suitable for continuous unattended operation
Carousel-Stirring-Hotplate-3

Carousel Stirring Hotplate Features

  • Residual heat indicator helps prevent accidental burns
  • Connect model with RS232 for optional software control
  • Aluminium top plate allows for rapid heat transfer for fast heating
  • High performance, glass ceramic top coating is resistant to chemicals and scratches

Tech data

Carousel
Standard
Carousel
Tech
Carousel
Connect
Speed, max (rpm) 100 – 1400 100 – 1400 100 – 1400
Speed accuracy (%) ±2 ±2 ±2
Display Digital Digital
Analogue/digital interface (RS232) Yes
Heating power (W) 800 (600 for 115v) 800 (600 for 115v) 800 (600 for 115v)
Hotplate temperature (˚C) 20-300 20-300 20-300
Accuracy temperature setting ±5 ±1 ±1
External temperature sensor Pt1000 Pt1000 Pt1000
Temp. accuracy with external temp. sensor ±1 ±1 ±1
Sensor breakage protection With Pt 1000 With Pt 1000 With Pt 1000
Temperature control Micro controller Micro controller Micro controller
Temperature accuracy hotplate (K) ±5 ±5 ±5
Safety circuit hotplate (˚C) 25˚C over hotplate temperature 25˚C over hotplate temperature 25˚C over hotplate temperature
Stirring capacity, max (water) 20 20 20
Plate diameter (mm) Ø135 Ø135 Ø135
Top Plate material Kera-Disk (Silumin with ceramic coating) Kera-Disk (Silumin with ceramic coating) Kera-Disk (Silumin with ceramic coating)
Weight (kg) 2.9 2.6 2.6
Dimension l x w x h (mm) 173 x 277 x 94 173 x 277 x 94 173 x 277 x 94
Protection class IP32 IP32 IP32
Supply voltage 230v / 50Hz or 115V / 60Hz 230v / 50Hz or 115V / 60Hz 230v / 50Hz or 115V / 60Hz

Key features

Carousel Stirring Hotplate
  1. Faster heating

    • 800 W heating power• Reduces heat-up times by 35%• 20 to 300°C temperature range

  2. Safety features

    • Control circuit and hotplate cut-out if the set temperature is exceeded by 25°C• Conforms to certified safety standards

  3. Sealed housing

    • Hermetically sealed for long life

  4. Pt1000 temperature sensor

    • For precise control by solution or block temperature• Accuracy with sensor +/-1 or +/-0.2

  5. Stirring control

    • Powerful and even stirring• Smooth ramp to set speed which prevents decoupling• 30 to 1400rpm

  6. Kera-Disk® top plate

    • Rapid heat transfer for fast heating• Chemical and scratch resistant• 135mm diameter

Models

Choice of three models

Each offering improved safety, ease of use and faster heat-up times

Request a demo

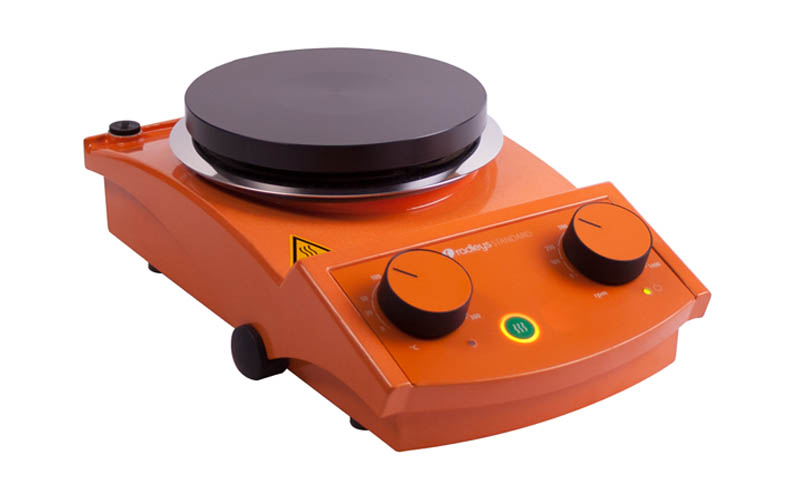

Carousel standard Hotplate

Carousel Standard Stirring Hotplate

Ideal for simple heating and stirring, an affordable stand-alone unit
  • The unique Kera-Disk heating plate comprises aluminum for fast heating times and a wafer-thin ceramic coating to make the heating plate both chemically and scratch resistant.
  • All Carousel Stirring Hotplate Features as described above

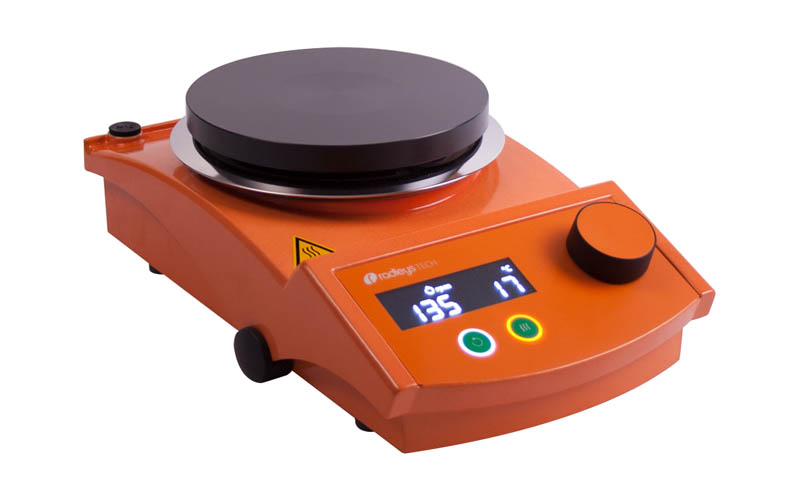

Carousel Tech Hotplate

Carousel Tech Stirring Hotplate

All Carousel Standard features, plus:

  • Digital display of temperature and speed with both set and actual values
  • Optional plug-in Pt1000 temperature sensor with stainless steel or glass coated probe
  • To protect your sample from overheating a safety circuit switches off the heating if
    temperature sensor is not immersed in the medium

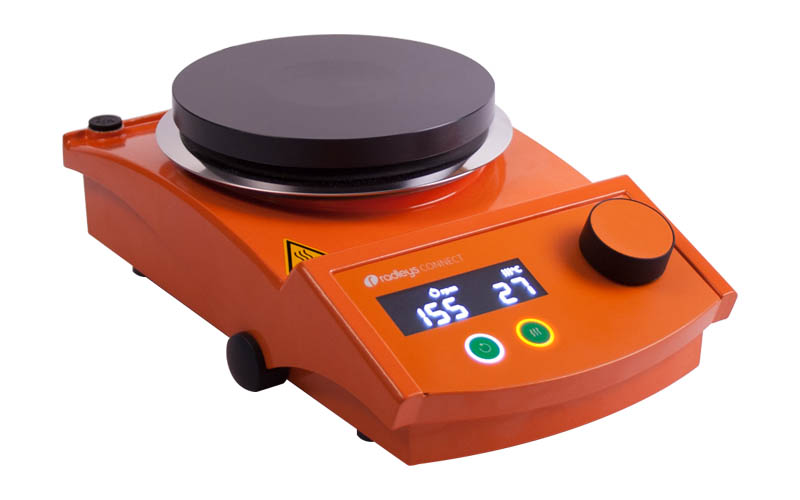

Carousel Connect Hotplate facing right

Carousel Connect Stirring Hotplate

All Carousel Tech features, plus:

  • Precise temperature control and RS232 Interface for optional PC control
  • New RS232 interface for optional PC control
  • Monitor and control your stirring hotplate with AVA Lab Control Software
Browse the range

Browse our range of products



For chemical synthesis, process development, evaporation and work-up

Browse the range

Range

Carousel Standard Stirring Hotplate

RR91200              Carousel Standard Stirring Hotplate 230v UK Plug
RR91200/EURO   Carousel Standard Stirring Hotplate 230v Euro Plug
RR91200/SWISS   Carousel Standard Stirring Hotplate 230v Swiss Plug

Carousel Tech Stirring Hotplate

RR91203             Carousel Tech Stirring Hotplate 230v UK Plug
RR91203/EURO Carousel Tech Stirring Hotplate 230v Euro Plug
RR91203/SWISS Carousel Tech Stirring Hotplate 230v Swiss Plug
RR91203/USA    Carousel Tech Stirring Hotplate 115v US Plug
RR91206             Carousel Tech Stirring Hotplate + Pt1000 230v UK Plug
RR91206/EURO Carousel Tech Stirring Hotplate + Pt1000 230v Euro Plug
RR91206/SWISS Carousel Tech Stirring Hotplate + Pt1000 230v Swiss Plug
RR91206/USA    Carousel Tech Stirring Hotplate + Pt1000115v US Plug

Carousel Tech Packages

RR91291             Carousel Tech Package 230v UK Plug
RR91291/EURO Carousel Tech Package 230v Euro Plug
RR91291/SWISS Carousel Tech Package 230v Swiss Plug
RR91291/USA    Carousel Tech Package 115v US Plug

Money saving Tech packages include:

RR91203   Carousel Tech Stirring Hotplate
RR91226   Pt1000 S/Steel Temperature Sensor
RR91235   Pt1000 Clamping System – support rod and cable guide

Carousel Connect Stirring Hotplate

RR91207             Carousel Connect Stirring Hotplate 230v UK Plug
RR91207/EURO Carousel Connect Stirring Hotplate 230v Euro Plug
RR91207/SWISS Carousel Connect Stirring Hotplate 230v Swiss Plug
RR91208             Carousel Connect Stirring Hotplate + Pt1000 230v UK Plug
RR91208/EURO Carousel Connect Stirring Hotplate + Pt1000 230v Euro Plug
RR91208/SWISS Carousel Connect Stirring Hotplate + Pt1000 230v Swiss Plug

Pt1000 Temperature Sensors and Accessories

RR91226   Pt1000 S/S Temperature Sensor
RR91227   Pt1000 Glass Coated Temperature Sensor
RR91228   Temperature Sensor Holder
RR91235   Pt1000 Clamping System – support rod and cable guide
RR91236   Pt1000 Clamping System – support rod and cable guide (for bath 3 to 5L)
RR91229   Temp Sensor Support Rod (13mm x 425mm)
RR71127   Temp Sensor Support Rod (13mm x 500mm)
RR71125   Temp Sensor Support Rod (13mm x 340mm)
RR71120   Support Rod Hotplate Adapter (extension plate)

AVA Software Kits - includes Controller, Data Hub & AVA Care

RR20302   AVA Level 1 Software Kit + UK Plug
RR20304   AVA Level 2 Software Kit + UK Plug

Hotplate Accessories

RR91220   1 litre PTFE Coated Heating Bath
RR91221   2 litre PTFE Coated Heating Bath
RR91222   4 litre PTFE Coated Heating Bath
RR91223   1 litre Heating Bath
RR91224   2 litre Heating Bath
RR91225   4 litre Heating Bath
RR91230   Support Rod for 4 litre Heating Bath (13mm x 475mm)
RR91232   Holding Bracket and Clamp
RR91233   Silicone Protective Cover for RR91200
RR61085   145mm Adapter Plate for 135mm Hotplates
RR71110   Retort Clamp to 85mm
RR71115   Boss Head 16mm

High Performance PTFE Stirring Bars

RR98075   Cross Shape Stirring Bar 10 mm, pk 40
RR98091   Cross Shape Stirring Bar 16.5 mm Rare Earth, pk 20
RR95910   Cross Shape Stirring Bar 30 mm, pk 5
RR98096   Elliptical Stirring Bar 10 mm Rare Earth, pk 40
RR98097   Elliptical Stirring Bar 15 mm Rare Earth, pk 20
RR99064   Elliptical Stirring Bar 25 mm Rare Earth, pk 10
RR99607   Pivot Ring Stirring Bar 12 x 4.5 mm, pk 40
RR98071   Pivot Ring Stirring Bar 12 x 6 mm, pk 40
RR99613   Pivot Ring Stirring Bar 15 mm, pk 40
RR98070   Octagonal Stirring Bar 13 mm, pk 20
RR95905   Cylindrical Stirring Bar 8 mm, pk 40
RR98113   Cylindrical Stirring Bar 12 mm Rare Earth, pk 20
RR95920   Oval Stirring Bar 40 mm, pk 5
RR95921   Oval Stirring Bar 50 mm, pk 5
RR98095   PTFE Magnetic Stir Bar Evaluation Kit, pk 30
RR71200   PTFE Magnetic Stir Bar Evaluation Kit – for flasks, pk 10
RR98094   PTFE Magnetic Stir Bar Retriever 350 mm
RR98114   Stirring Bar Restrainer
