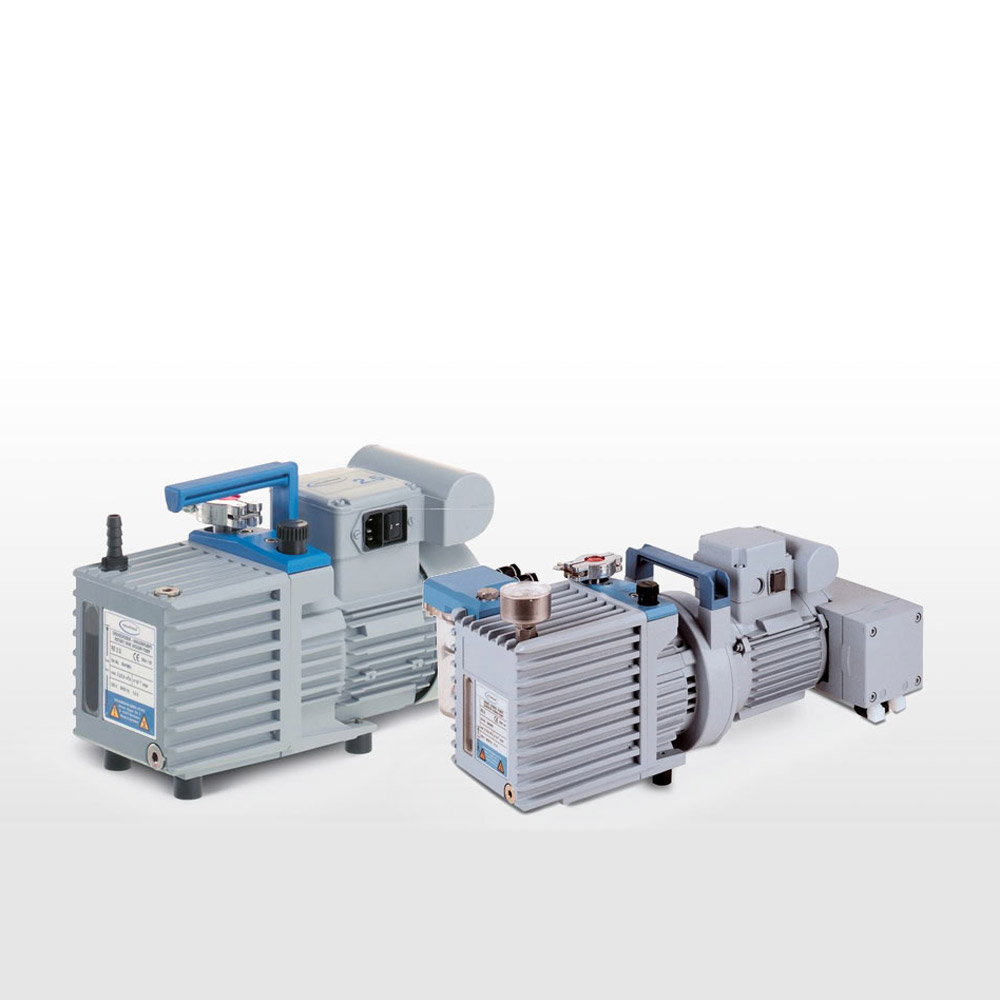

Rotary vane pumps and chemistry-HYBRID pumps

Rotary vane pumps are used whenever it is necessary to have a process vacuum of up to 10^(-3) mbar. Vacuubrand rotary vane pumps give consistently high volume flow rates over a wide pressure range.

Rotary vane pumps and pumping units and chemistry-HYBRID pumps

Vacuubrand rotary vane pumps are high-performance, yet compact, and can be equipped with an extensive line of Vacuubrand accessories. They have an innovative lubrication system with a built-in oil pump and have a large oil volume which extends oil change and service intervals and protects the pump at start-up.

  • Constriction-free vapor pathway allows high volume flow rates, even when close to the ultimate vacuum

  • High tolerance for water and solvent vapors, because of the high-volume gas ballast

  • Quiet running and excellent ultimate vacuum, even with gas ballast

  • Active corrosion protection: Oil cycle closes vacuum-tight against the intake of corrosive gases and oil impurities into the reservoir when shut down

Rotary vane pumps and chemistry-HYBRID pumps

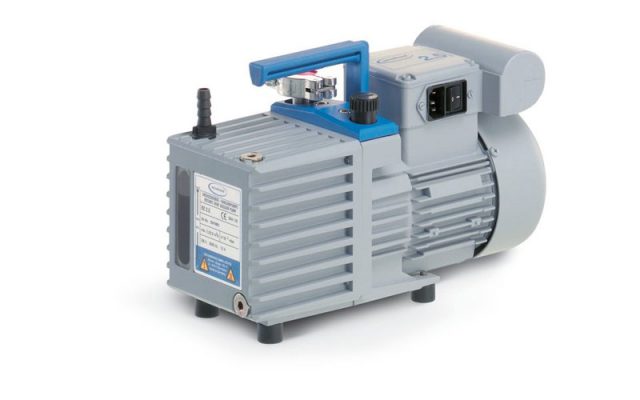

Rotary vane pumps

The Vacuubrand range of rotary vane pumps cover a range of ultimate vacuum from 1 x 10^(-1) to 2 x 10^(-3) mbar.

Rotary vane pumps and chemistry-HYBRID pumps

Chemistry-HYBRID pumps

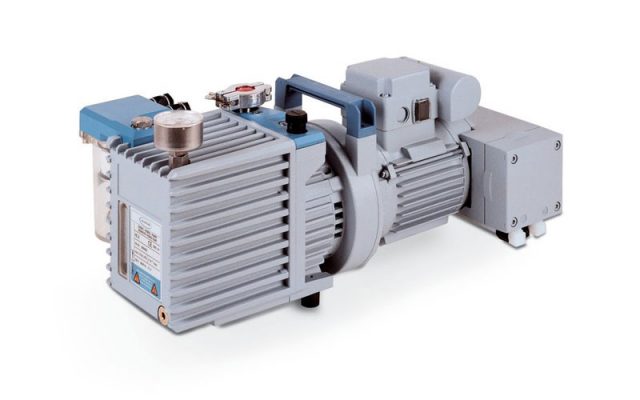

The RC 6 range of chemistry-HYBRID pumps are a combination of a two-stage rotary vane pump and a two-stage chemistry diaphragm pump. The diaphragm pump maintains the oil reservoir under vacuum in order to keep the partial pressures of solvent vapours at levels below their condensation points and to reduce the concentration of oxygen and corrosive gases. The RC 6 chemistry-HYBRID pumps have a much higher solvent vapour pumping capability and resistance to aggressive gases than conventional rotary vane pumps.

Range

VB698029           RZ2.5 Rotary Vane Pump Package 230v CEE and UK Plug Supplied
VB698039           RZ6 Rotary Vane Pump Package 230v CEE and UK Plug Supplied
VB698122           RZ2.5 2-Stage Rotary Vane Pumps XS 230v
VB698132           RZ6 2-Stage Rotary Vane Pumps XS 230v
VB698142           RZ9 2-Stage Rotary Vane Pumps XS 230v
VB698150           RZ6 Rotary Vane Pump Package 230v CEE and UK Plug Supplied
VB698562           RC6 Chemistry HYBRID Pump
VB698570           PC8 with RC6 Chemistry Vacuum System
VB699890           PC3 with RZ2 230v Supplied with UK and CEE Plug
VB699893           PC3 with RZ6 230v Supplied with UK and CEE Plug
VB699895           PC3 with RZ8 230v Supplied with UK and CEE Plug
VB697152           RE2.5 Rotary Vane Pumps XS 230v
VB697162           RE6 Rotary Vane Pumps XS 230v
VB697170           RE9 Rotary Vane Pumps XS 230v
VB648977           Maintenance Kit
VB649987           Maintenance Kit for RE2 – RZ5
VB649988           Maintenance Kit for RE8 – RZ16
VB649989           Maintenance Kit for RC5
