4 independent zones

Both heating and active cooling in one instrument, each zone controlled independently



Magnetic & overhead stirring

Integrated magnetic stirring as well as optional Mya Compact Stirrers for powerful overhead stirring

2 ml to 400 ml

A wide range of vessel styles and volumes



Automation & data-logging

Software-controlled reaction station allows for 24/7 unattended chemistry



-30 to 180 °C

Block or solution control. Up to 200 °C difference between adjacent zones

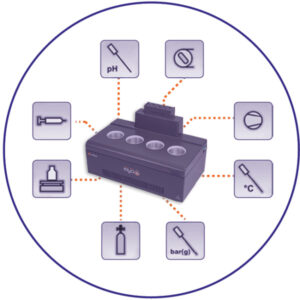

Control 3rd party devices

Option to control devices such as syringe pumps and pH meters using the Mya Control Software

Flexible and versatile

  • 4 different zones, each with heating and active cooling
  • Use one compact system for a range of experiments
  • Precise temperature control
  • Magnetic or optional overhead stirring
  • Accepts a wide range of vessel sizes and styles
  • Control your experiments and log results automatically
  • Use Mya 4 with or without a chiller

Safer, cleaner, greener, more productive

  • Replace inefficient, messy and unsafe oil and ice baths
  • Save space compared with separate reaction set-ups
  • Software control improves safety, reduces manual errors, and allows 24/7 unattended chemistry, for improved productivity
  • Integrate 3rd party devices such as pumps, balances and pH sensors etc.

A flexible tool for a wide range of applications

from discovery chemistry to process development

Process development

Design of Experiment (DoE)

Scale up

Route scouting

Polymorph screening

Reaction optimisation

Lead optimisation

Crystallisation studies

Single or parallel synthesis

Reagent, catalyst & solvent screening

Temperature range

  • Block temperature range -30 °C to +180 °C. Solution temperature range at least -20 °C to +150 °C. Independent control of each zone. Block or solution control

Wide range of vessels

  • 2 ml to 400 ml. Vials, tubes, round bottom flasks and straight sided process vessels

Mya Compact Stirrer

  • Powerful, high-torque overhead stirring. Tool-free attachment. Stirs from 100 to 1000 rpm. Control each position independently

Minimal zone cross-talk

  • Up to 200 °C difference between adjacent zones thanks to high performance insulation. Ideal for multi-user work and multiple projects

Cool to -25 °C with tap water

  • Powerful Peltier technology provides rapid cooling. No need for a separate chiller

Magnetic stirring as standard

  • Control each position independently from 100 to 1000 rpm

Space saving

  • Compact benchtop footprint. Less space than 4 separate reaction set-ups

Reflux or Manifold Head

  • For efficient refluxing and distribution of inert gas. Reflux Head is water-cooled and used with reflux tubes. Manifold Head distributes water for glass condensers

Excellent visibility

  • Easily view your vessel contents

Touch-screen Control Pad

  • Supplied as standard. Intuitive and easy to use. Use manual control or set automated profiles

Single or multi-user operation

  • Control heating/cooling and stirring of each zone independently

Optional PC Control Software

  • Integrate and control 3rd party devices such as pumps, balances and pH sensors

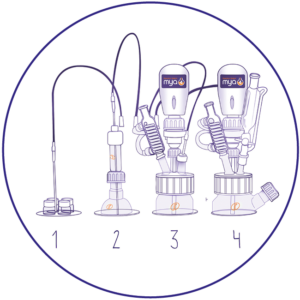

4 independently controlled reaction zones

  • Use 1, 2, 3 or 4 zones
  • Operate zones in parallel or individually by multiple users

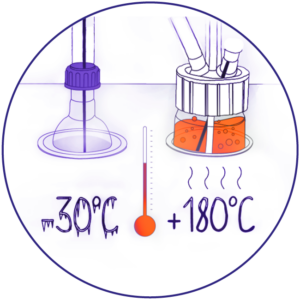

Precise temperature control

  • Temperature range from -30 °C to +180 °C (block temperature)
  • Providing a solution temperature of at least -20 °C to +150 °C
  • Up to 200 °C difference between adjacent positions
  • Control the temperature of each zone independently
  • Choose to control by block (internal) or solution temperature

Use Mya 4 with or without a chiller

  • Mya 4 uses powerful Peltier technology to provide rapid cooling to -30 ˚C
  • Peltier cells require tap or chilled water to dissipate heat
Peltier cooling sourceTap water at 15 °CChilled water at 5 °C
Minimum block temperature
(internal probe)
 -25 °C -30 °C
Minimum solution temperature
(external probe)
 -20 °C -25 °C

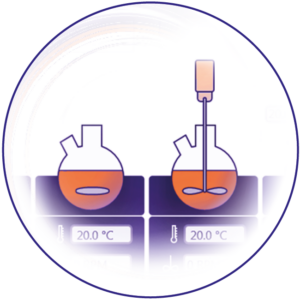

Magnetic or optional overhead stirring

  • Integrated magnetic stirring – from 100 to 1000 rpm
  • Optional overhead stirring – from 100 to 1000 rpm
  • Control the stirring speed of each position independently
  • Use magnetic or overhead stirring in adjacent zones

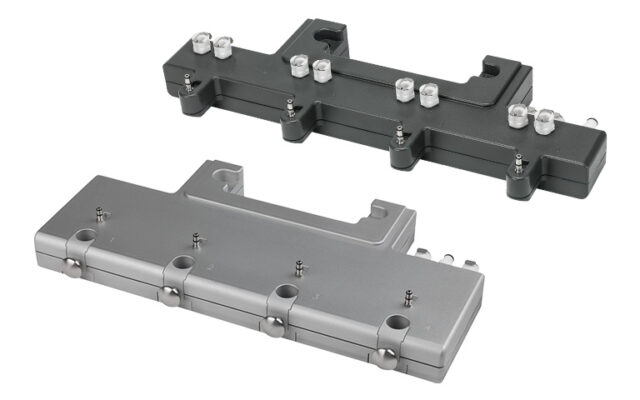

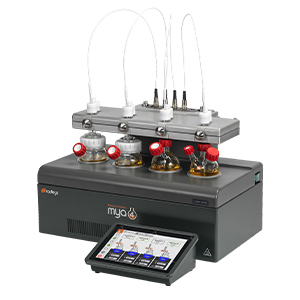

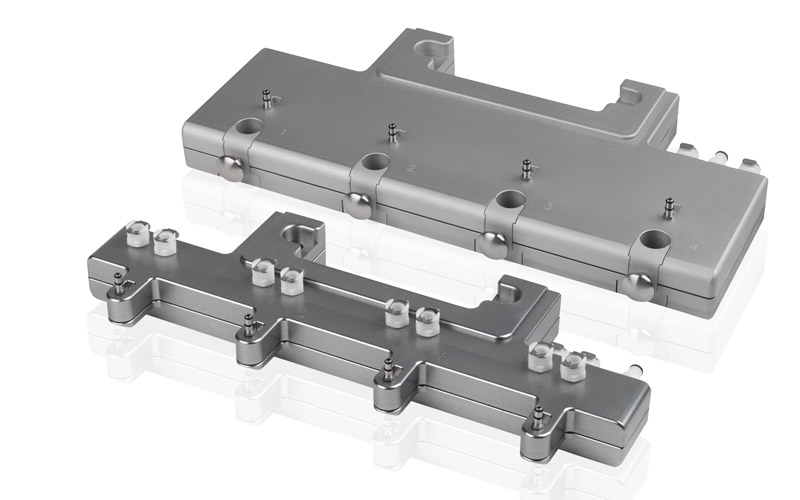

Mya 4 Head options

Manifold or Reflux head

  • Water-cooled
  • Distribute gas for inerting
  • Manifold head:
    • Distributes water for individual condensers
    • With non-return shut-off valves
  • Reflux head:
    • Cools the outside of reflux tubes
    • Efficient refluxing in a simple set-up

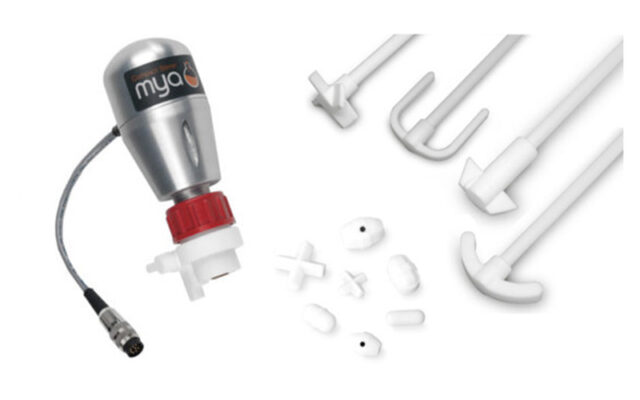

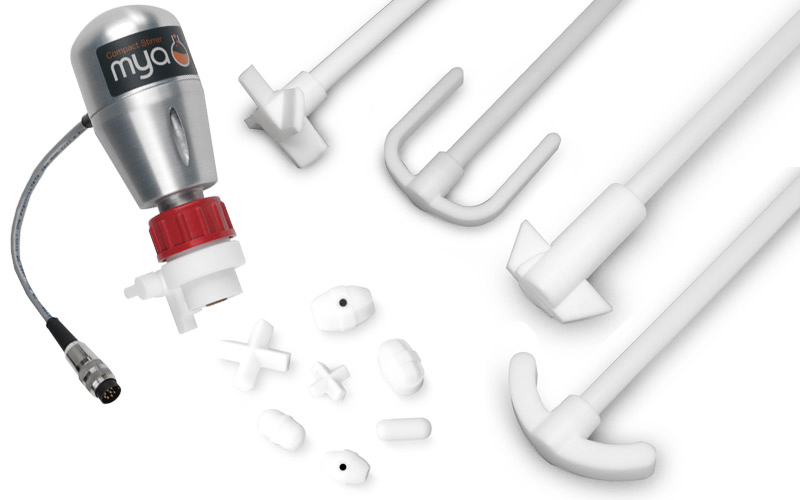

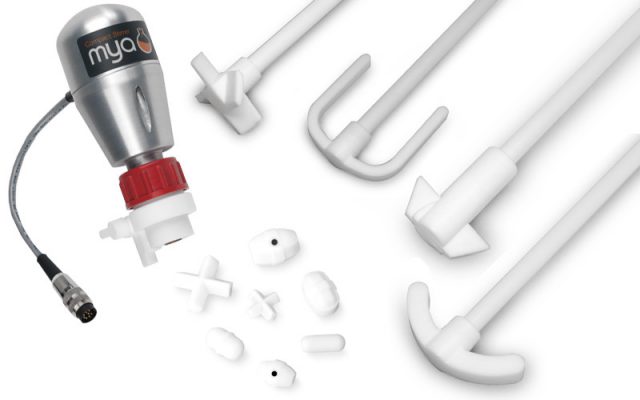

Mya Stirring

Magnetic or optional overhead stirring

  • Integrated magnetic stirring – from 100 to 1000 rpm
  • Optional overhead stirring with Mya Compact Stirrer
    • Powerful, high torque motor
    • Stirs from 100 to 1000 rpm
    • Tool-free attachment
  • Control the stirring speed of each position independently
  • Use magnetic or overhead stirring in adjacent zones

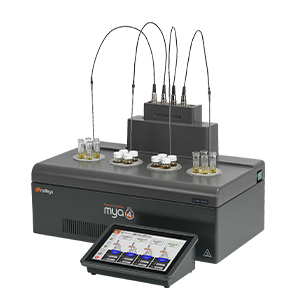

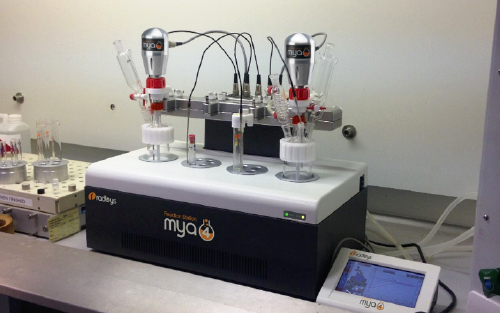

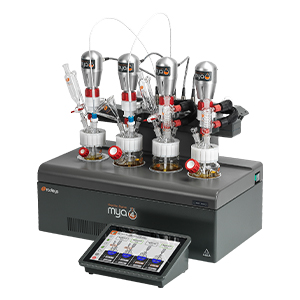

Mya 4 Reaction Station

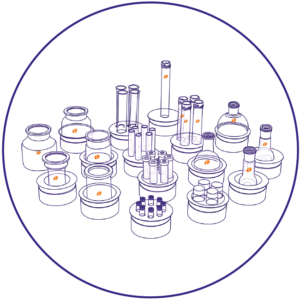

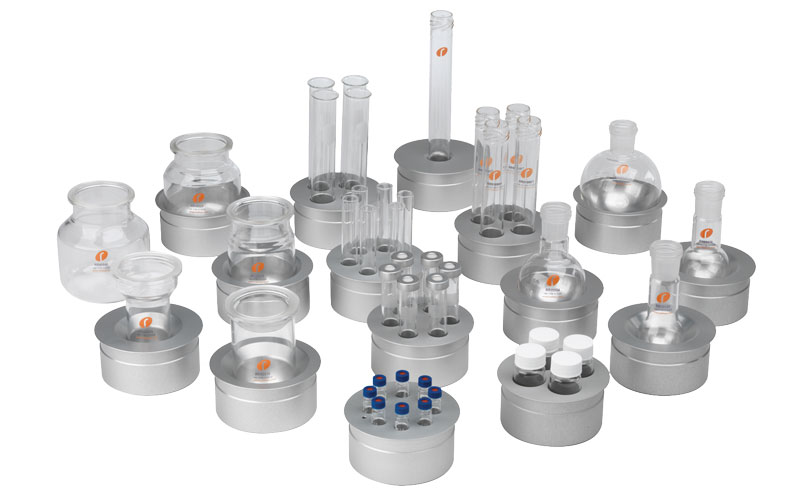

Wide selection of vessel styles and volumes

Vials, tubes, round bottom flasks and process vessels from 2 to 400 ml

  • Vials and tubes from 2 to 20 ml
  • Round bottom flasks (from the Carousel 6 Plus range) from 25 to 250 ml
  • Process reaction vessels from 50 to 400 ml
  • Multi-neck glass lids – 3 or 5-neck
  • Accessory Glassware
More info

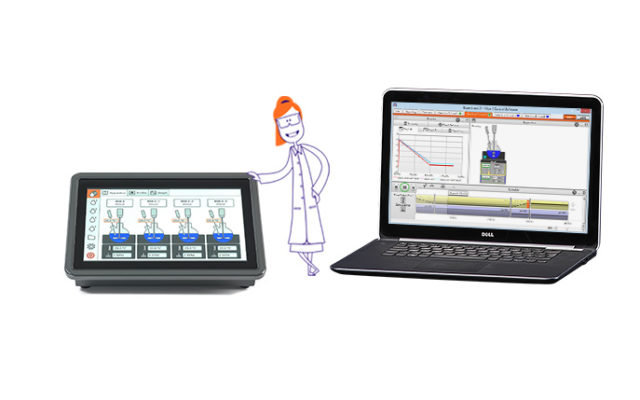

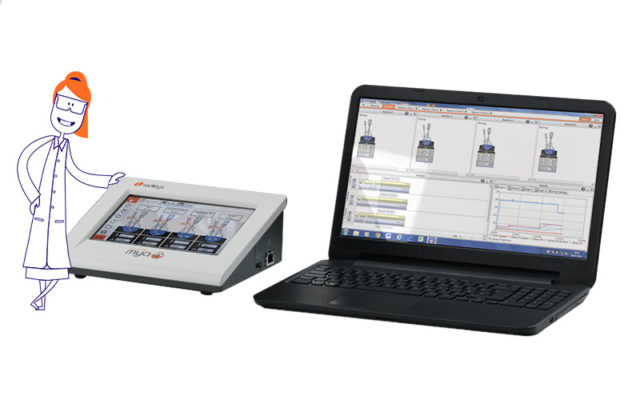

Mya 4 controllers

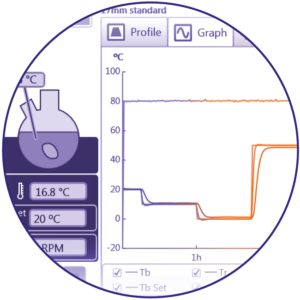

Software control and data logging

Choice of touch-screen Control Pad and PC Control Software.

Run experiments in manual or profile mode. Easily repeat profiles. Export CSV data.

  • Touch-screen Control Pad – supplied as standard
  • Optional PC Control Software – to integrate and control 3rd party devices

More info

Download free demo software

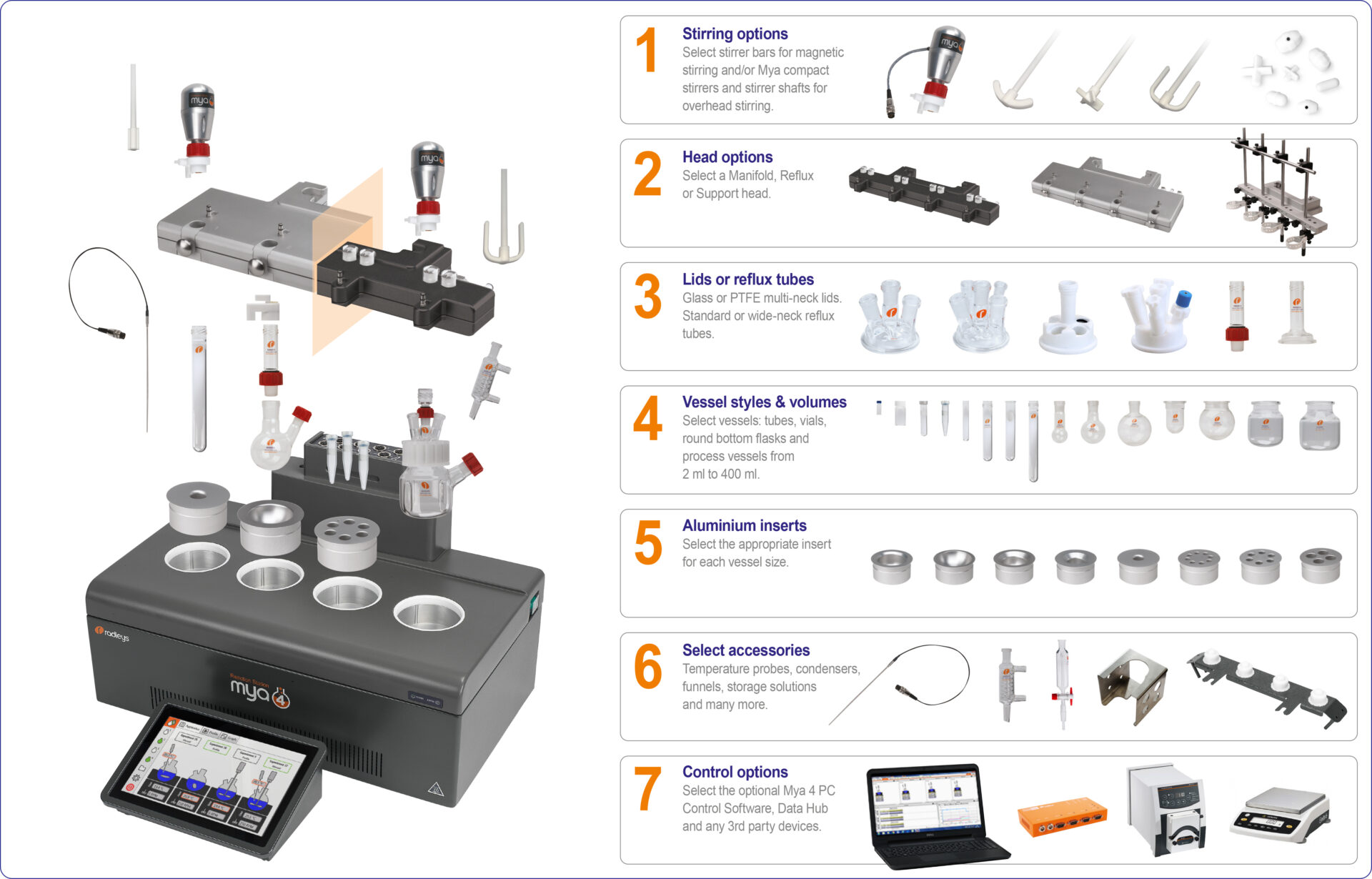

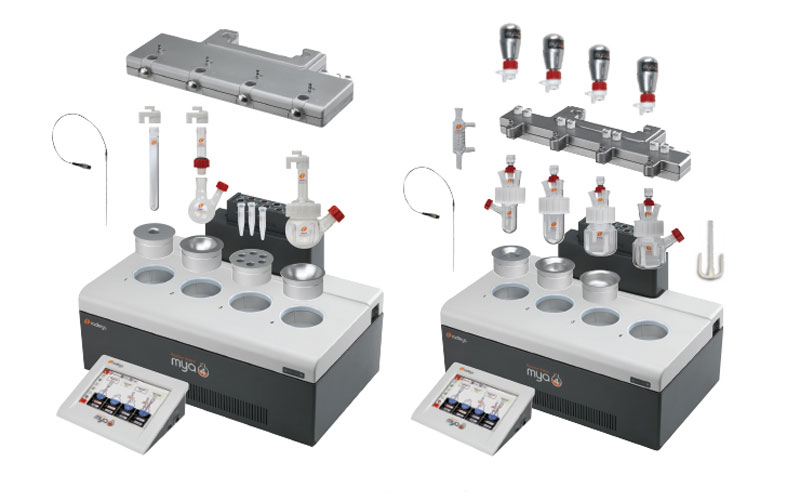

How to configure your Mya 4 system

A flexible reaction station with a wide range of options
and accessories to fit your needs

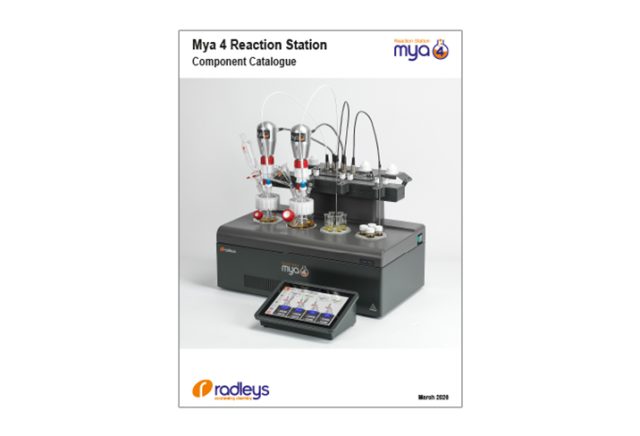

Mix & Match

Mya 4 Options

Select the components you need to suit your chemistry.

Our experts can advise you on the best options for your application.
