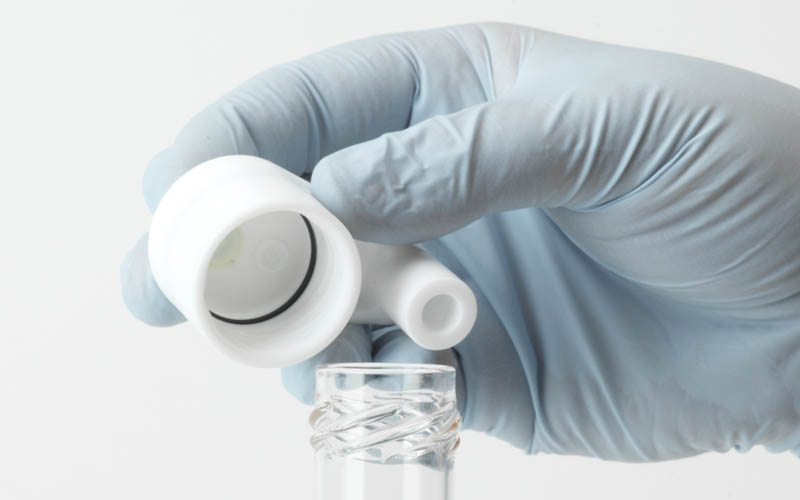

Easy-On PTFE reaction caps

Easy-On PTFE reaction caps

Manufactured from chemically-resistant PTFE

  • Attach using a 1/4 turn quick-thread
  • Easy-On push connection to the Carousel’s radial gas system
  • Caps feature a Suba-Seal silicone septa and on/off valve for isolation and removal
  • Storage caps have septa, but no sidearm or valve
  • Caps include a replaceable Nitrile O-ring with an optional Viton replacement
  • Replaceable septa allow the addition of reagents or removal of samples
  • All septa are silicone as standard (Viton is available)

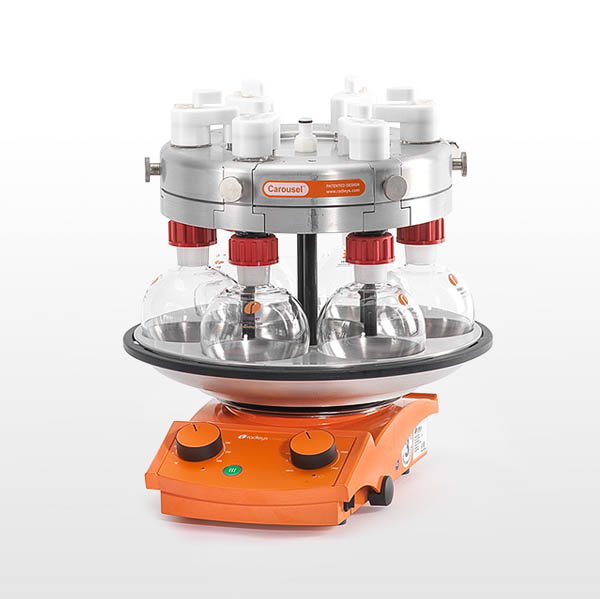

Carousel 6 Plus Glassware

Carousel 6 Plus Glassware

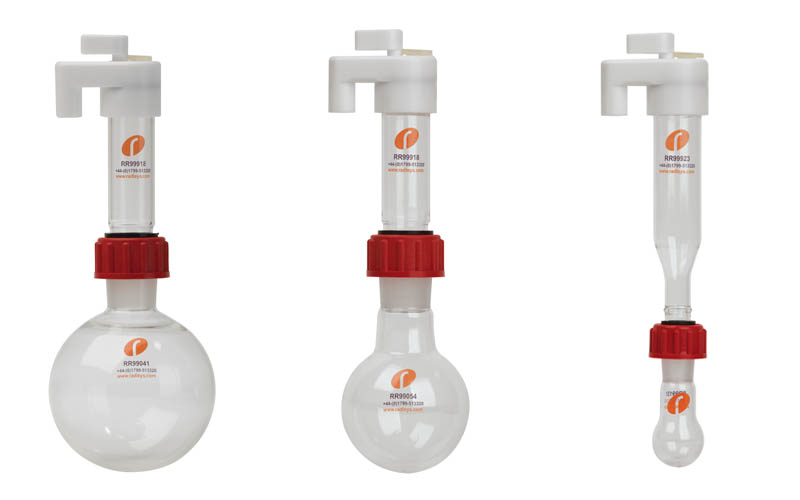

Standard Flasks

  • Choice of sizes: 5 ml, 10 ml, 25 ml, 50 ml, 100 ml, 170 ml and 250 ml
  • Precision engineered round bottom design ensures an excellent fit with the Carousel’s wells, maximising heat transfer
  • Flasks feature a B24/B29 Rodaviss joint for connection to the detachable Reflux Tube
  • Reflux Tubes feature a quick-thread for an excellent gas tight seal up to 1 psi
  • Optional single piece 250 ml Long Neck design

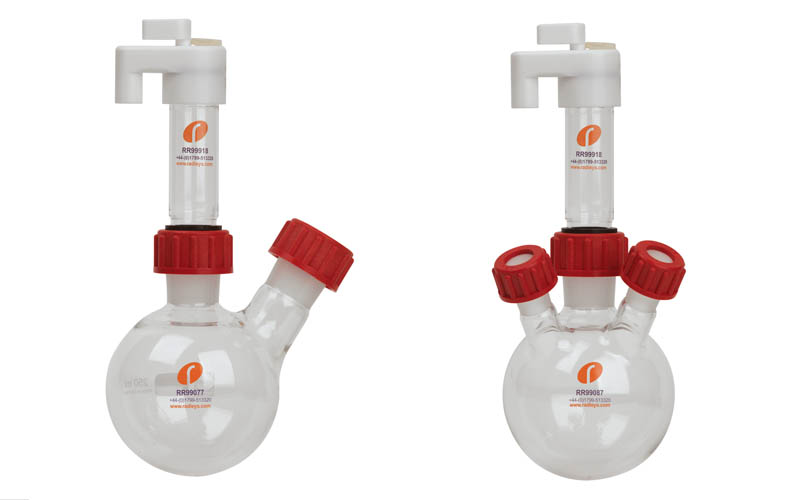

Standard Flasks with Sidearms

Standard Flasks with Sidearms

  • Flasks are available with B14/23 and B24/29 sidearm options and include Rodaviss caps and sealing septa
  • Sidearms are compatible with Dropping Funnels and Solid Addition Funnels

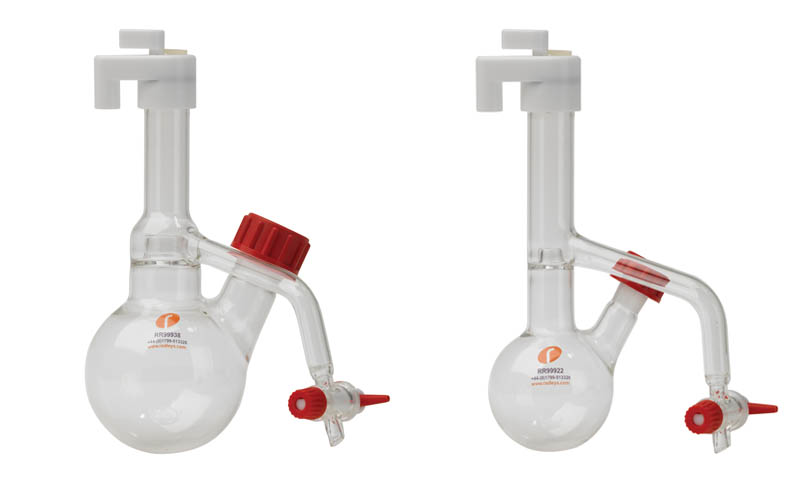

Azeotropic Flasks (Dean & Stark)

Azeotropic Flasks (Dean & Stark)

  • Unique single piece flasks fit directly into the Carousel 6 Plus, allowing chemists to perform up to six Azeotropic processes in parallel
  • Choice of sizes: 100 ml and 250 ml
  • Special Tornado version to accept centrifugal stirring paddle
  • Replaceable PTFE stopcock for removal of the aqueous phase

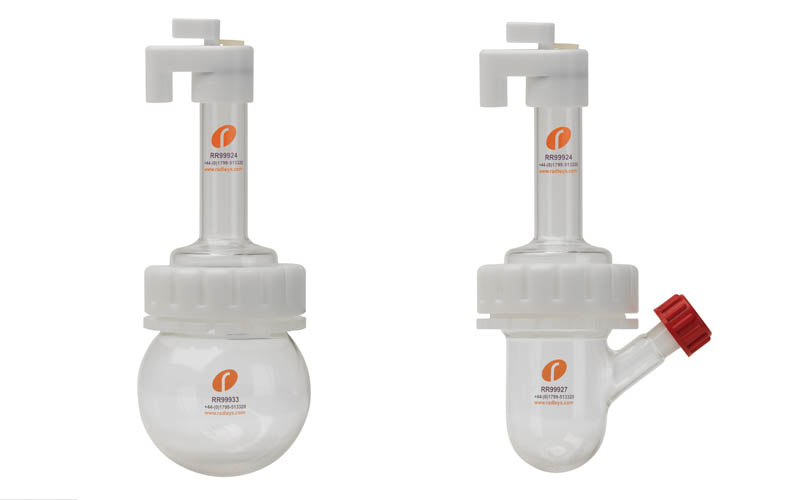

Wide Neck flasks with quick coupling

Wide Neck flasks with quick coupling

  • Wide neck flasks allow easier removal of viscous or solid samples and facilitate the use of the anchor and propeller style PTFE stirrer blade options (Tornado)
  • These unique vessels feature a 50 mm ID flat flange, which combines with a Nitrile O-ring and our unique self centering PTFE collar to offer a leak-tight seal between the glass flask and wide neck reflux tube.
  • The two flanges are compressed together using a two part threaded polymer coupling, which both holds the components rigid and offers an excellent gas tight seal
Standard Flasks with Sidearms

Wide Neck flasks

Wide Neck flasks with Sidearms

One or two sidearms ideal for attaching dropping funnels or powder funnels.

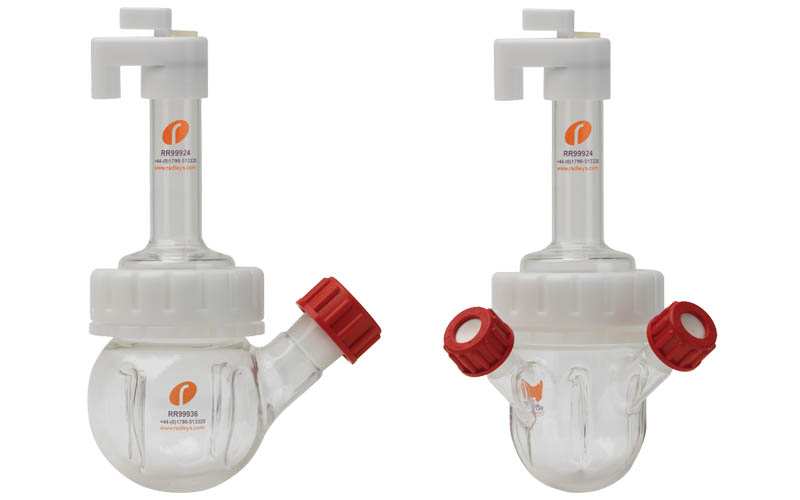

Wide Neck flasks with Baffles and Sidearms

Baffled flasks improve the turbulence within the flask by disrupting the creation of a central vortex.

Range

Easy-On PTFE reaction caps

RR91070   Easy-On PTFE Cap, Pack 6
RR91072   Easy-On PTFE Storage Cap, Pack 6
RR98076   Silicone Septa for PTFE Caps, Pack 100
RR98176   Viton Septa for PTFE Caps, Pack 100

Standard Flasks and Reflux Tubes

RR99151   5ml Reaction Flask with B14/23 Neck, Pack 6
RR99148   10ml Reaction Flask with B14/23 Neck, Pack 6
RR99923   B14/23 Reflux Tube + Connecting Set, Pack 6
RR99145   25ml Reaction Flask, Pack 6
RR99070   50ml Reaction Flask, Pack 6
RR99054   100ml Reaction Flask, Pack 6
RR99052   170ml Reaction Flask, Pack 6
RR99041   250ml Reaction Flask, Pack 6
RR99917   250ml Reaction Flask + Reflux Tube + Connecting Set, Pack 6
RR99918   B24/29 Reflux Tube + Connecting Set, Pack 6
RR99919   250ml Long Neck Reaction Flask, Pack 6

Standard Flasks with Sidearms

RR99071   50ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99074   100ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99077   250ml Reaction Flask with B24/29 Sidearm + Septa Port, Pack 6
RR99047   250ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99087   250ml Reaction Flask with 2x B14/23 Sidearms + Septa Port, Pack 6
RR99088   250ml Reaction Flask with 2x B24/29 Sidearms + Septa Port, Pack 6
RR99089   250ml Reaction Flask with 1x B14/23 + 1x B24/29 Sidearm + Septa Port, Pack 6

Wide Neck Flasks with Coupling

RR99924   Wide Neck Reflux Tube + Coupling
RR99925   Coupling for Wide Neck Flasks
RR99940   PTFE Wide Neck Support Collar
RR99941   Nitrile O-Ring for PTFE Wide Neck Support Collar
RR99926   50ml Wide Neck Flask
RR99928   100ml Wide Neck Flask
RR99933   250ml Wide Neck Flask

Wide Neck Flasks with Sidearms

RR99927   50ml Wide Neck Flask with B14/23 Sidearm + Septa Port
RR99929   100ml Wide Neck Flask with B14/23 Sidearm + Septa Port
RR99930   100ml Wide Neck Flask with 2x B14/23 Sidearms + Septa Port
RR99934   250ml Wide Neck Flask with B24/29 Sidearm + Septa Port
RR99935   250ml Wide Neck Flask with 2x B24/29 Sidearms + Septa Port

Wide Neck Flasks with Baffles & Sidearms

RR99931   100ml Baffled Wide Neck Flask with B14/23 Sidearm + Septa Port
RR99932   100ml Baffled Wide Neck Flask with 2x B14/23 Sidearms + Septa Port
RR99936   250ml Baffled Wide Neck Flask with B24/29 Sidearm + Septa Port
RR99937   250ml Baffled Wide Neck Flask with 2x B24/29 Sidearms + Septa Port

Azeotropic Glassware

RR99922   100ml Azeotropic Reaction Flask, Pack 3
RR99920   250ml Azeotropic Reaction Flask, Pack 3
RR99939   100ml Tornado Azeotropic Reaction Flask, Pack 3
RR99938   250ml Tornado Azeotropic Reaction Flask, Pack 3

Liquid and Solid Additions Funnel

RR99049   B14/23 Solid Additions Funnel, Pack 3
RR99079   B24/29 Solid Additions Funnel, Pack 3
RR99048   B14/23 Liquid Additions Dropping Funnel + Pressure Equalising Arm, Pack 3
RR99078   B24/29 Liquid Additions Dropping Funnel + Pressure Equalising Arm, Pack 3

Evaporation Adapters, Splash Heads and Evaporation Flasks

RR99045   Rotary Evaporator Adapters Rodaviss B29 Socket to B24 Cone, Pack 2
RR99046   Rotary Evaporator Adapters Ordinary B29 Socket to B24 Cone, Pack 2
RR99055   Rotary Evaporator Adapters USA 24/40 Socket to B24 Cone, Pack 2
RR99083   Splash Head Rodaviss B29 Socket to B24 Cone
RR99084   Splash Head Ordinary B29 Socket to B24 Cone
RR99085   Splash Head USA 24/40 Socket to B24 Cone
RR99053   250ml EZ-2/HT Evaporation Flask (Compatible with Genevac Evaporators), Pack 4

Flasks are NOT supplied with reflux tubes or PTFE caps, these must be purchased separately

Aluminium Inserts

RR99142   Aluminium Insert for 5ml Reaction Flask, Pack 6
RR99141   Aluminium Insert for 10ml Reaction Flask, Pack 6
RR99140   Aluminium Insert for 25ml Reaction Flask, Pack 6
RR99060   Aluminium Insert for 50ml Reaction Flask, Pack 6
RR99058   Aluminium Insert for 100ml Reaction Flask, Pack 6
RR99057   Aluminium Insert for 170ml Reaction Flask, Pack 6

PTFE Magnetic Stirring Bars

RR98075   Cross Shape Stirring Bar 10mm, Pack 40
RR98091   Cross Shape Stirring Bar 16.5mm RE, Pack 20
RR98096   Elliptical Stirring Bar 10mm RE, Pack 40
RR98097   Elliptical Stirring Bar 15mm RE, Pack 20
RR99064   Elliptical Stirring Bar 25mm RE, Pack 10
RR98070   Octagonal Stirring Bar 13mm, Pack 20
RR98071   Pivot Ring Stirring Bar 12 x 6mm, Pack 40
RR98095   PTFE Magnetic Stirring Bar Evaluation Kit, Pack 30
RR98094   PTFE Magnetic Stirring Bar Retriever 350mm
RR98114   Magnetic Stirring Bar Restrainer

Replacement O-Rings & Quick Release Couplings

RR91060   Nitrile O-Rings 4mm Gas Outlet – Bottom, Pack 50
RR91061   Nitrile O-Rings 3mm Gas Outlet – Top, Pack 50
RR91062   Viton O-Rings 4mm Gas Outlet – Bottom, Pack 50
RR91063   Viton O-Rings 3mm Gas Outlet – Top, Pack 50
RR91065   Quick Release Male, Threaded, No Shut-off (6.4mm ID)
RR91066   Quick Release Female, Barbed 6.4mm, No Shut-off (6.4mm ID)
RR99062   Quick Release Male, Barbed 6.4mm + Shut-off (6.4mm ID), Pack 2
RR99063   Quick Release Male, R/A Barbed 6.4mm + Shut-off (6.4mm ID), Pack 2
RR99065   Quick Release Female, Threaded + Shut-off (6.4mm ID), Pack 2

Rodaviss Caps & Connecting Sets

RR99051   B14/23 Rodaviss Sealing Cap, Pack 10
RR99043   B24/29 Rodaviss Sealing Cap, Pack 10
RR99955   B14/23 Rodaviss Connecting Set, Pack 10
RR99044   B24/29 Rodaviss Connecting Set, Pack 10
RR99080   PTFE/Silicone Septa 20mm – B14/23, Pack 50
RR99081   PTFE/Silicone Septa 24.5mm – B19/26, Pack 50
RR99082   PTFE/Silicone Septa 29mm – B24/29, Pack 50
RR99068   B14/23 Rodaviss Connecting Cap, Pack 10
RR99090   B24/29 Rodaviss Connecting Cap, Pack 10

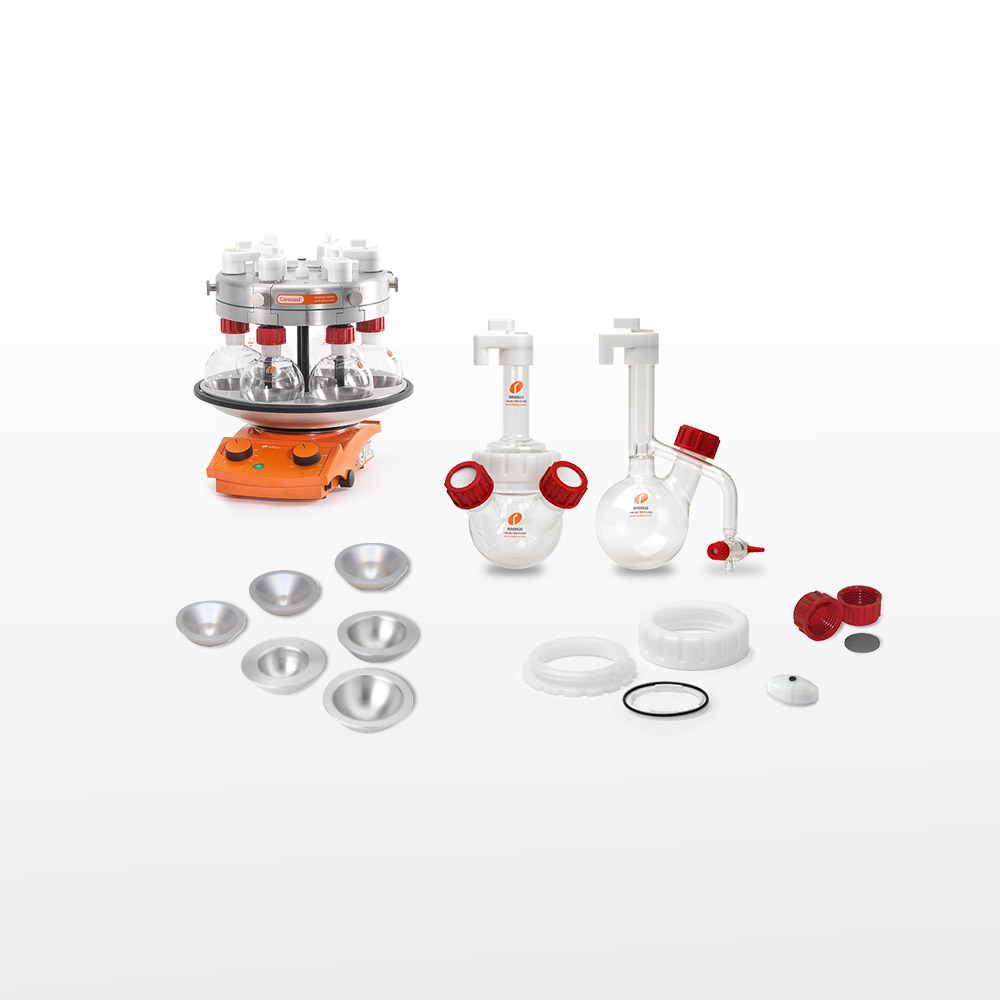

Other Accessories

RR98906   Black Lab Marker, Pack 10
RR99061   Reaction Flask Support Ring, Pack 6
RR99067   Tubing for Inert Gas or Reflux Cooling, 2m
