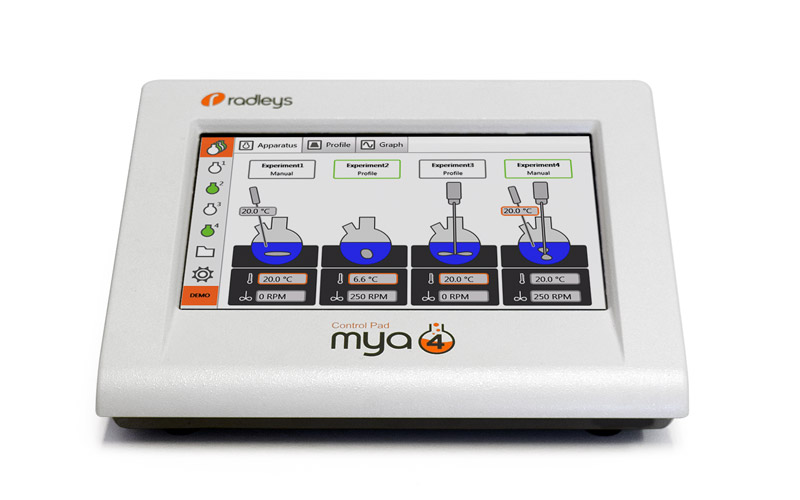

Mya-4-Control-Pad-2

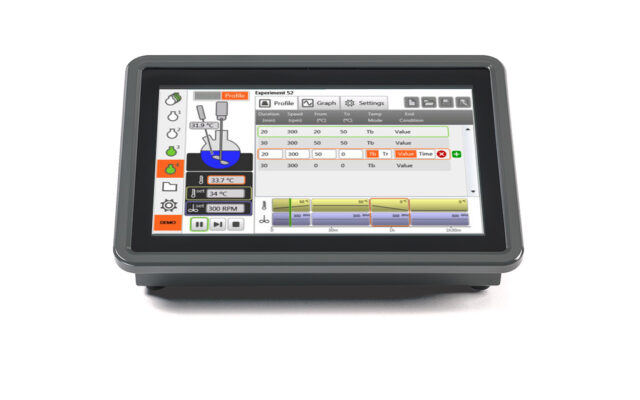

Touch-screen Control Pad

  • Supplied as standard
  • Intuitive and easy to use
  • Compact footprint
  • Set automated profiles or use manual control
  • Single or multi-user operation
  • Control heating/cooling and stirring of each zone independently

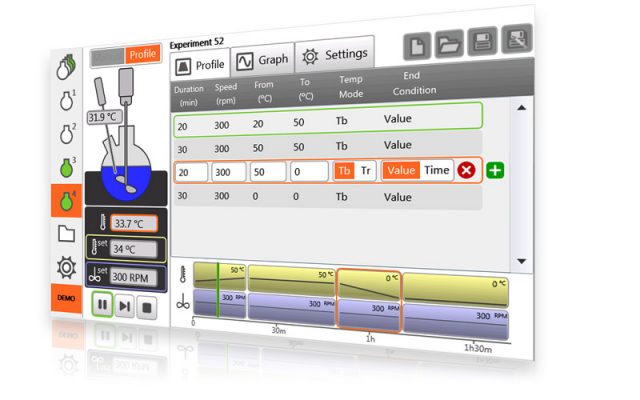

Mya-4-Control-Pad-Screenshot3

The touch-screen Control Pad requires minimal training. It will control and log heating/cooling and stirring for all four zones independently. Repeating experiments and exporting data is a breeze.

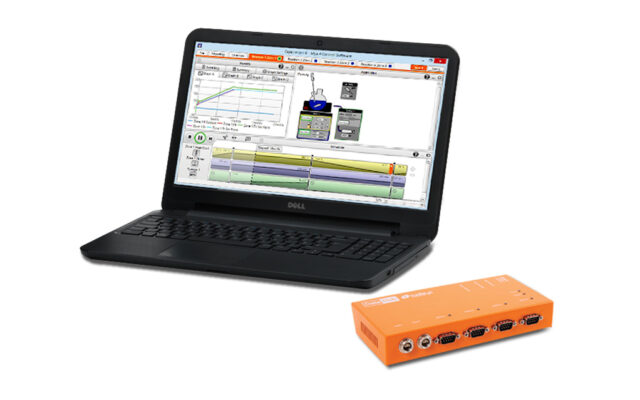

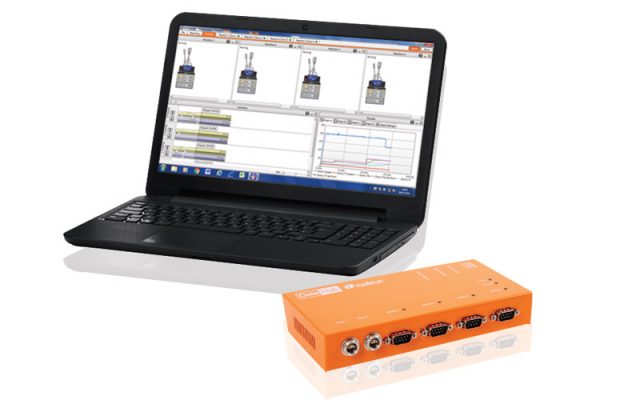

Mya-4-Laptop-Controller+software-screen

Upgrade to the PC Control Software if you also want to:

  • Integrate and control up to 16 x 3rd party devices such as pumps, balances and pH sensors etc.
  • Create complex experiments with any number of steps
  • Increase safety by using warnings, safe states and shut down settings
  • Create a comprehensive report in a few clicks at the end of your experiment

One of the best user friendly reactors available in different scales for rapid reaction screening and optimizationAbhishek Shrikant, Syngene International

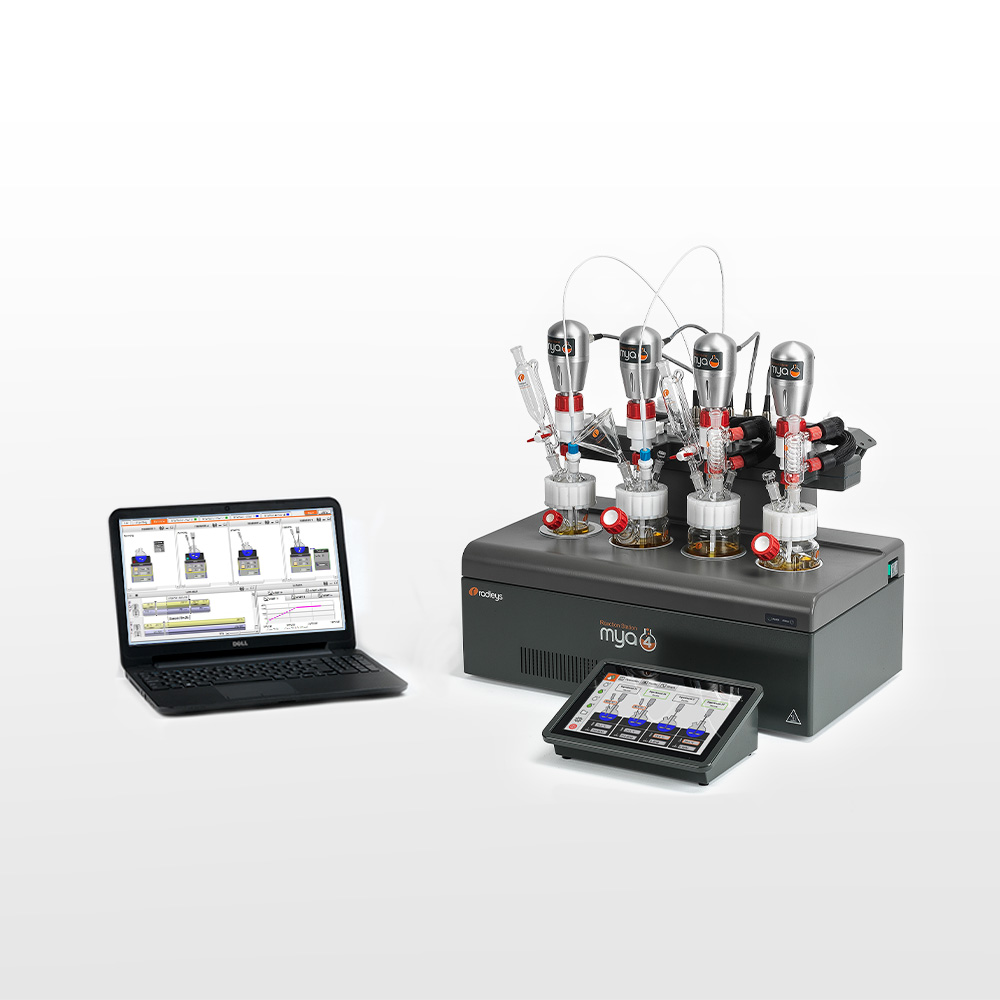

Control Options​​ – Comparison table

Which Mya Control Option do I need?

FeaturesTouch-screen Control PadPC Control Software
Touch-screen Control Pad is supplied as standard with Mya 4IncludedOptional
Intuitive and easy to use touch-screen control
Compact footprint – fumehood compatible
Maximum 10 steps of 16 hours each
Multi-user – independently run experiment in 4 zones
Control and log the temperature and stirring of each zone independently
Set safety limits
Export experimental profiles and results in CSV via USB memory stick
Adjust parameters manually – using manual/direct mode
Create multi-step recipes – using profile/schedule mode
Flexibility to make and track on-the-fly adjustments to your experiment
Automatically log all data
Share experimental results and recipes with other users
View real-time graphs
Control and log up to 16 x 3rd party devices on one screen
Create complex experiments with any number of steps
Interlink devices and set feedback/control loops and end point conditions
Report Wizard creates detailed reports in RTF or export results in CSV
Log comments
Runs on a Windows laptop



Book an online demo

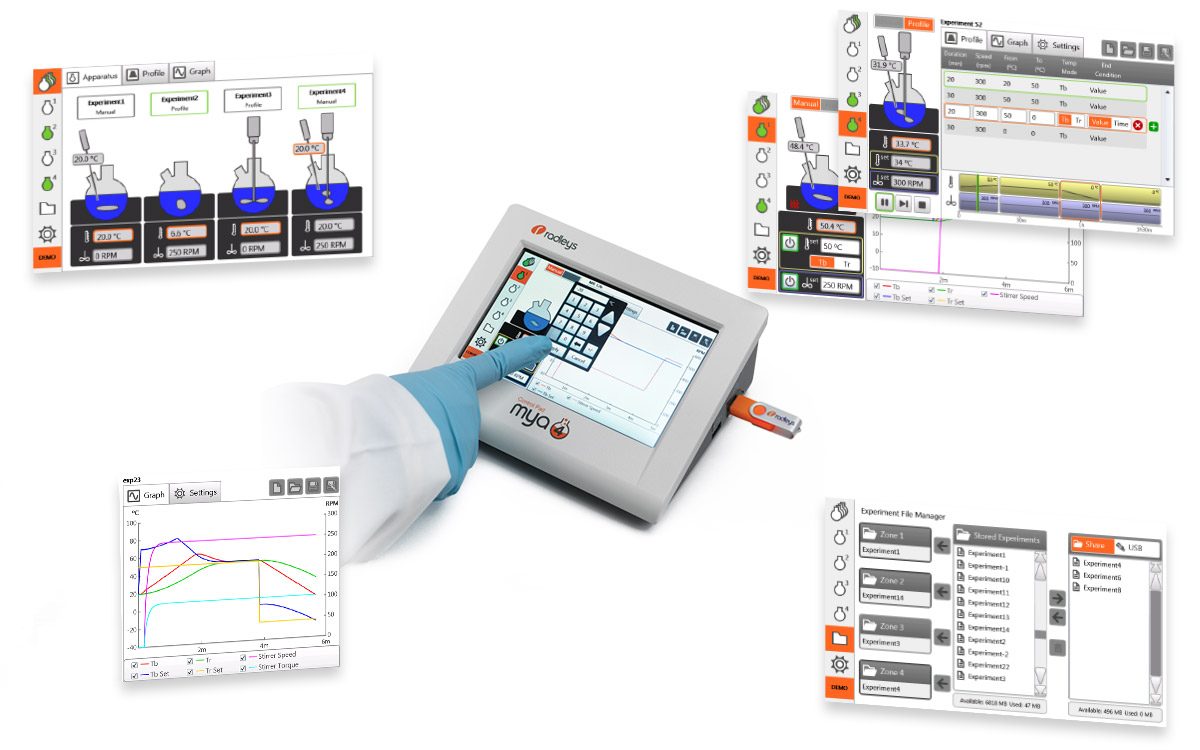

Control Pad - key features

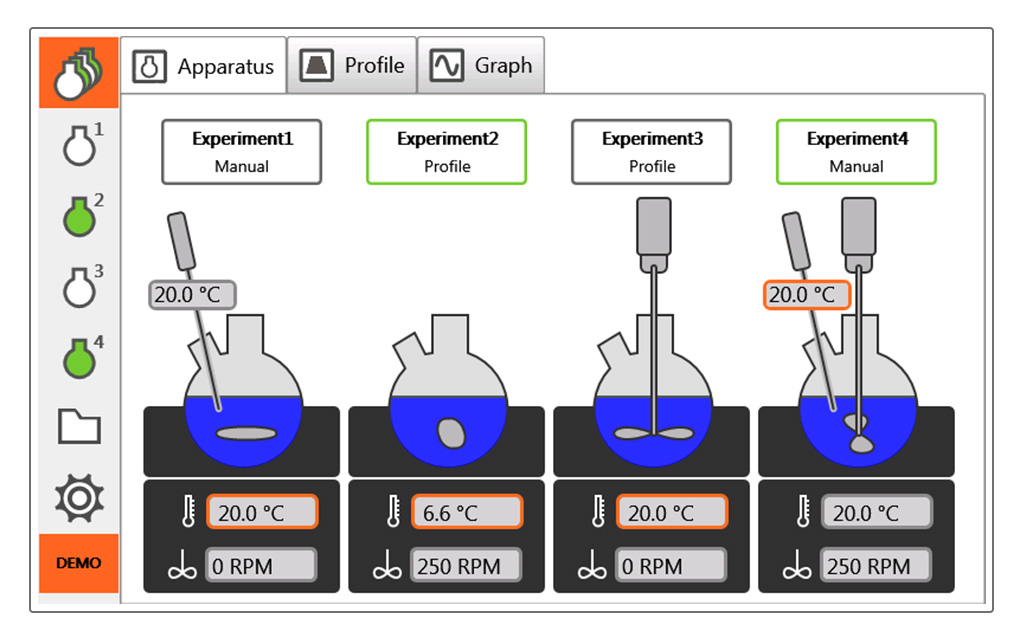

Control up to 4 different experiments in parallel

Mya 4 Control up

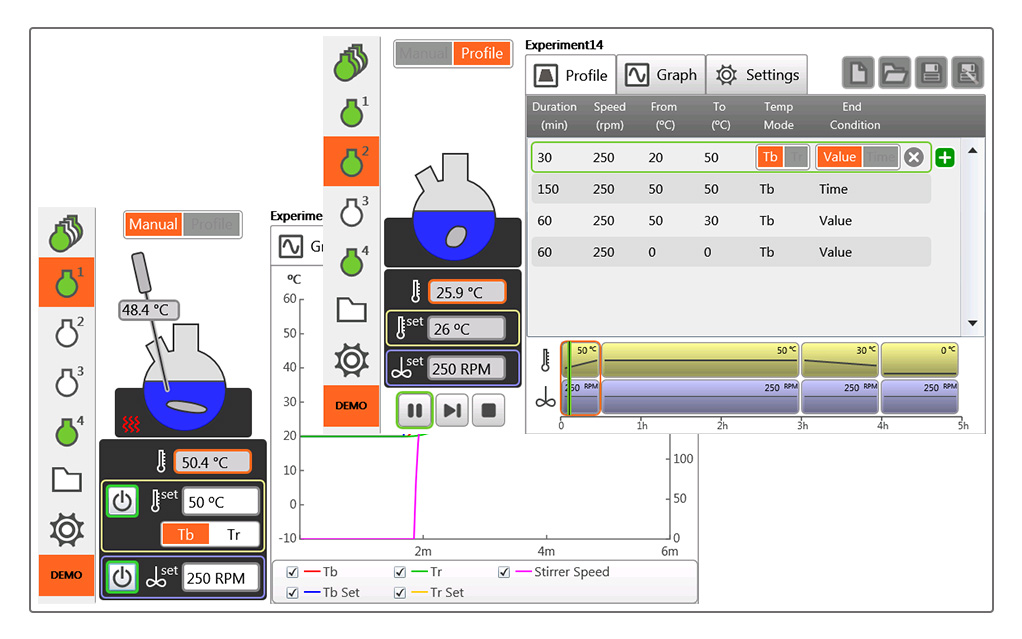

Manual or Profile mode

Mya 4 Profile Mode

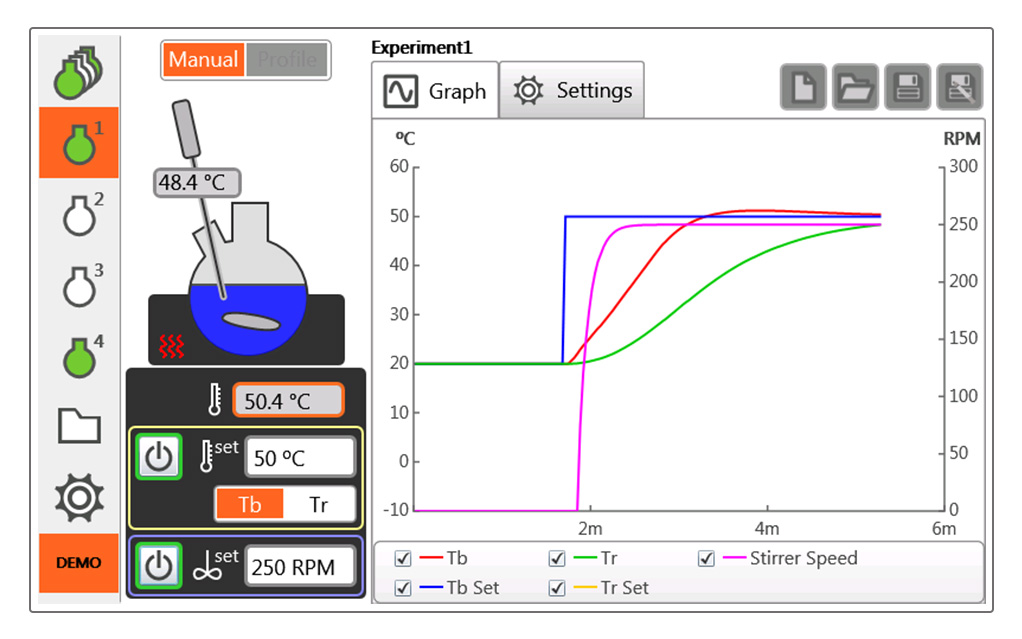

View real-time graphs

Mya 4 graphs

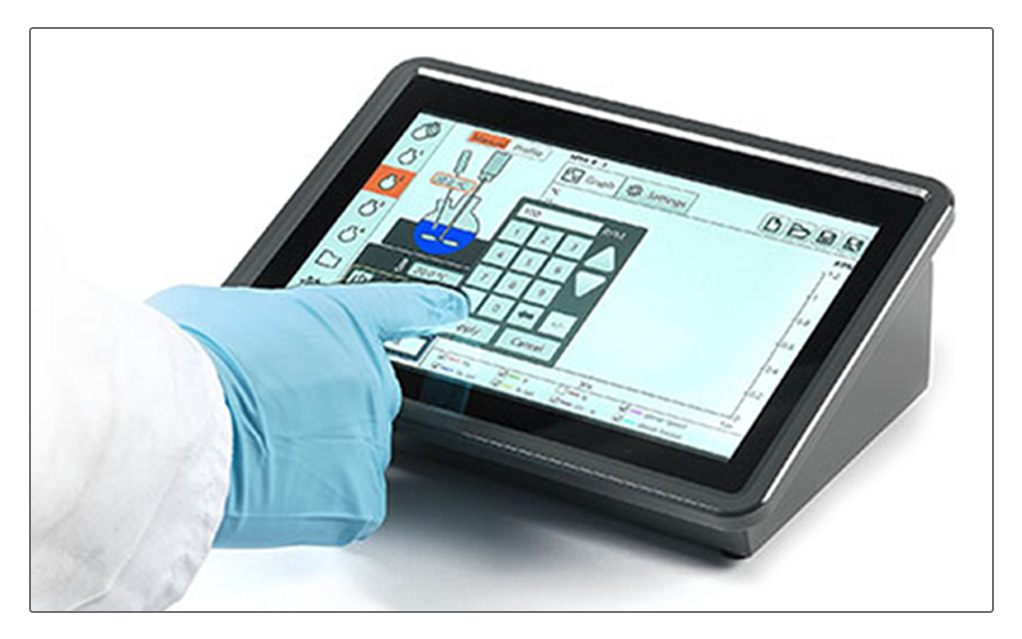

Touch screen

Mya 4 Control Pad

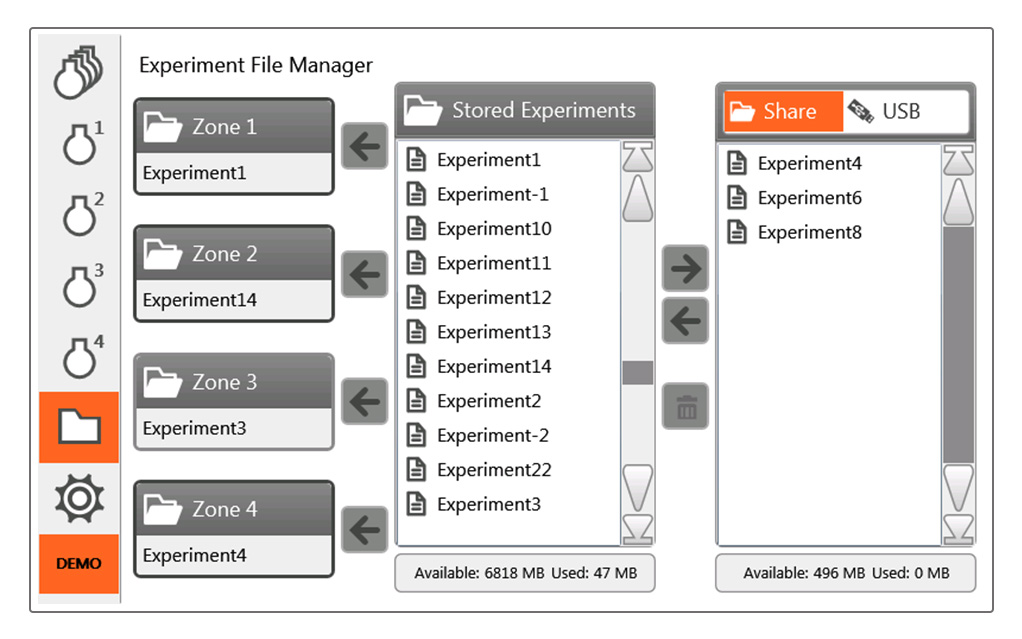

Export files and re-run experiments

Mya 4 re-run experiments

The interface looks great, it's easy to understand and it's simple to use.MRC Laboratory of Molecular Biology, Cambridge, UK

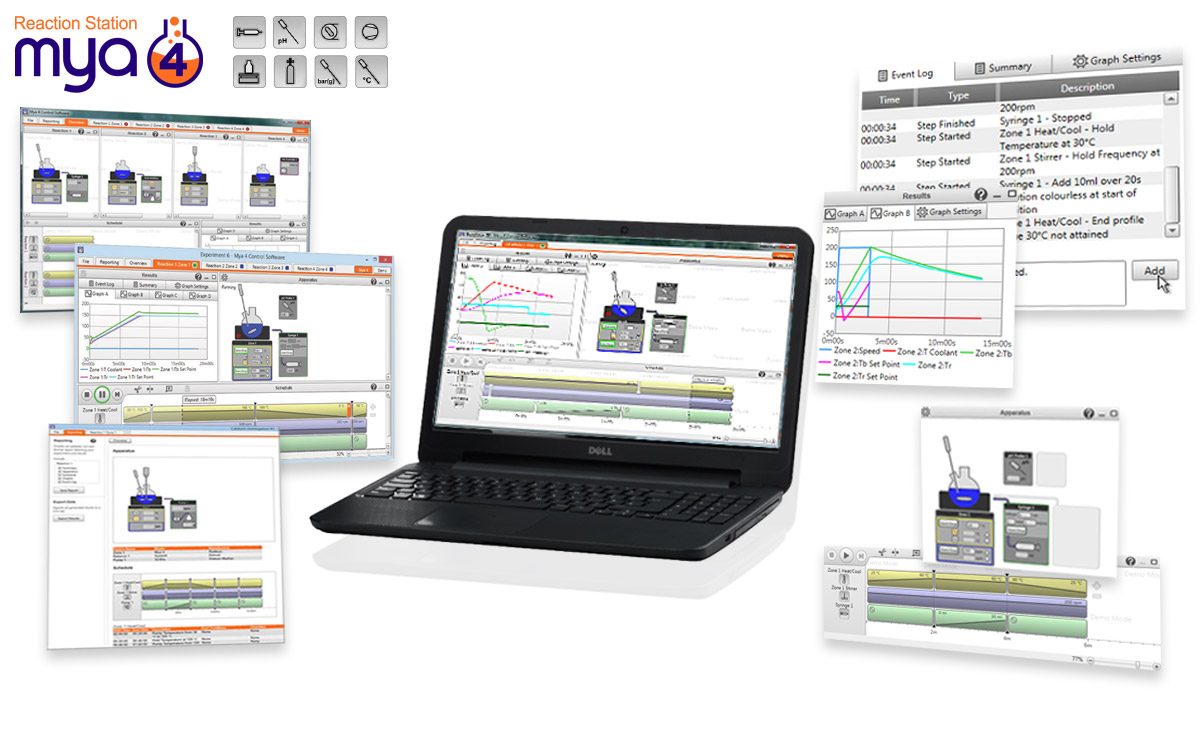

Mya PC Control Software - key features

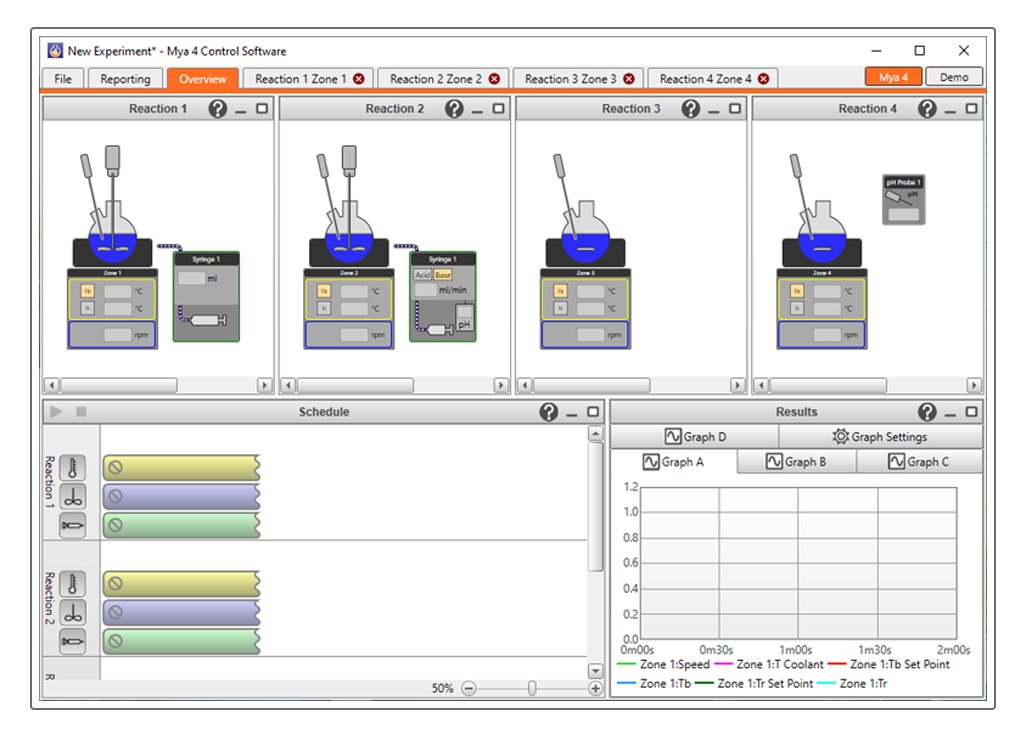

Control up to 4 different experiments in parallel

  • Overview screen to see all experiments at once
  • Individual tabs for each experiment

Add 3rd party devices (e.g. pumps, pH meters)

• Select and name devices
• Set device parameters and safety limits
• Link devices for dual control e.g. pump and balance for gravimetric additions

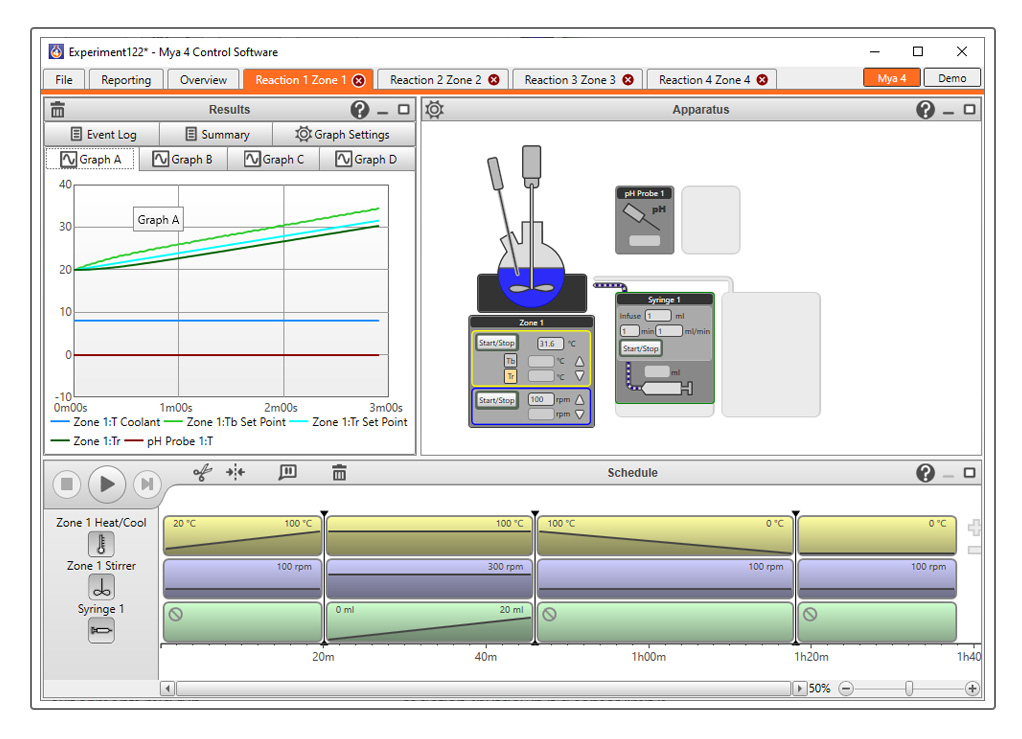

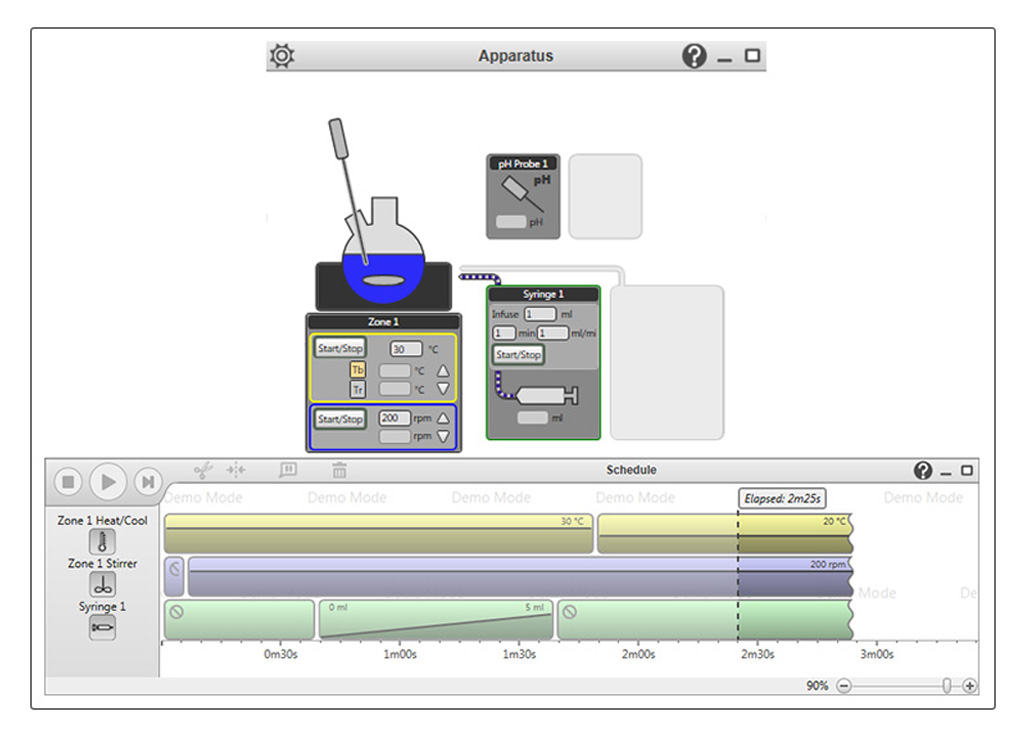

Select Direct or Schedule control

• Control devices directly via the apparatus window or
• Use the Schedule Window to create experiment profiles e.g. create ramps, plateaus and timed actions

'Track and Repeat'

• Track what you do, as you do it and record all actions
• Repeat and refine the schedule to optimise the experiment
• This clever feature enables automation of a manual process with ease and without any programming knowledge

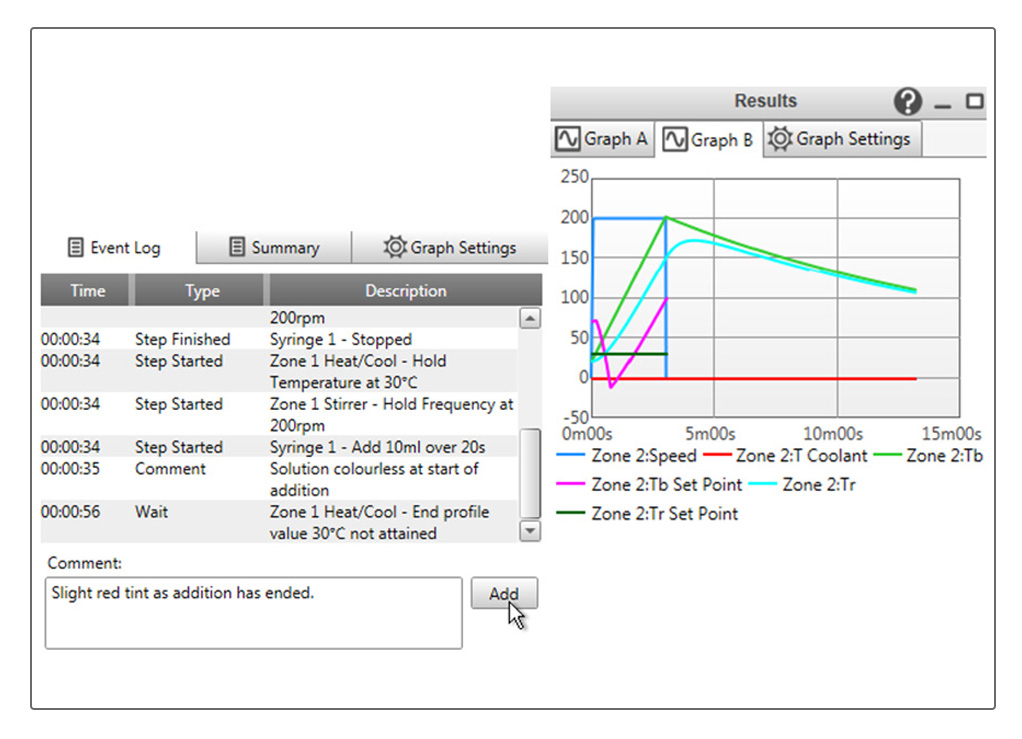

Graph data and modify experiments on-the-fly

• View real-time graphs
• Stop, pause or skip steps and modify experiments mid-run
• Add or remove steps as the timeline progresses
• Add notes in the Event log

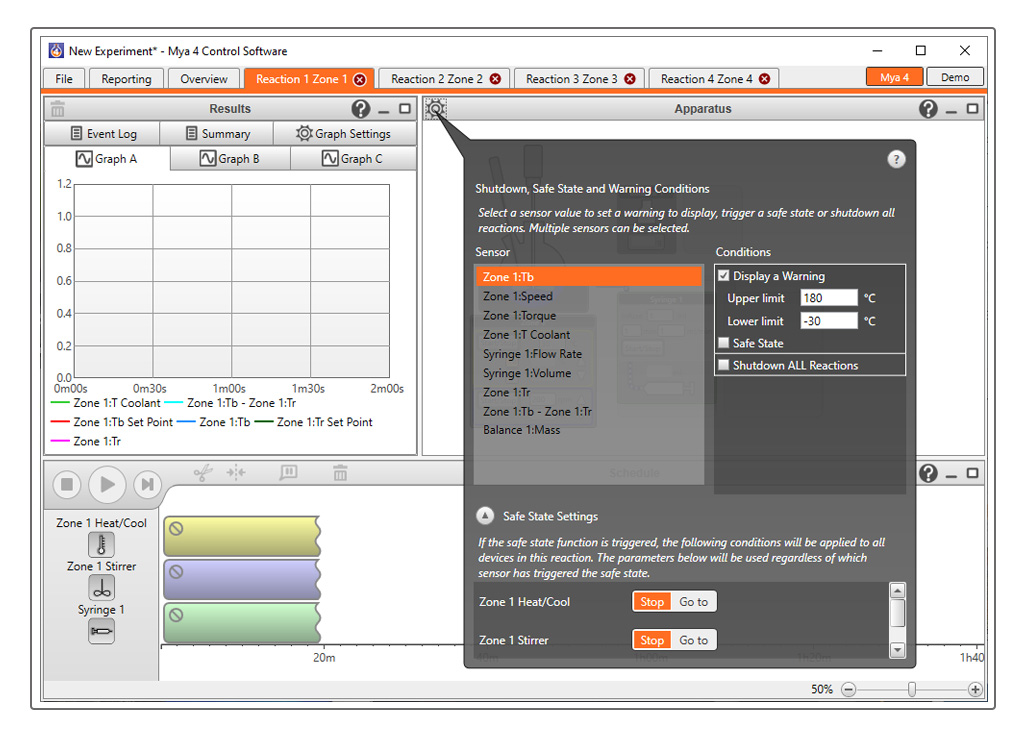

Enhanced safety for unattended operation 24/7

• Set individual device warning alarms
• Set emergency safe conditions or reaction shutdown if a sensor limit is exceeded
• Create safety feedback loops e.g. control a pump addition by process temperature
• Set user-definable limits or parameters for all devices

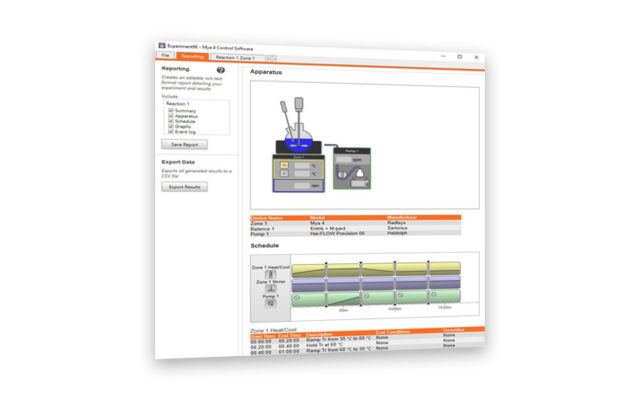

Mya 4 share data

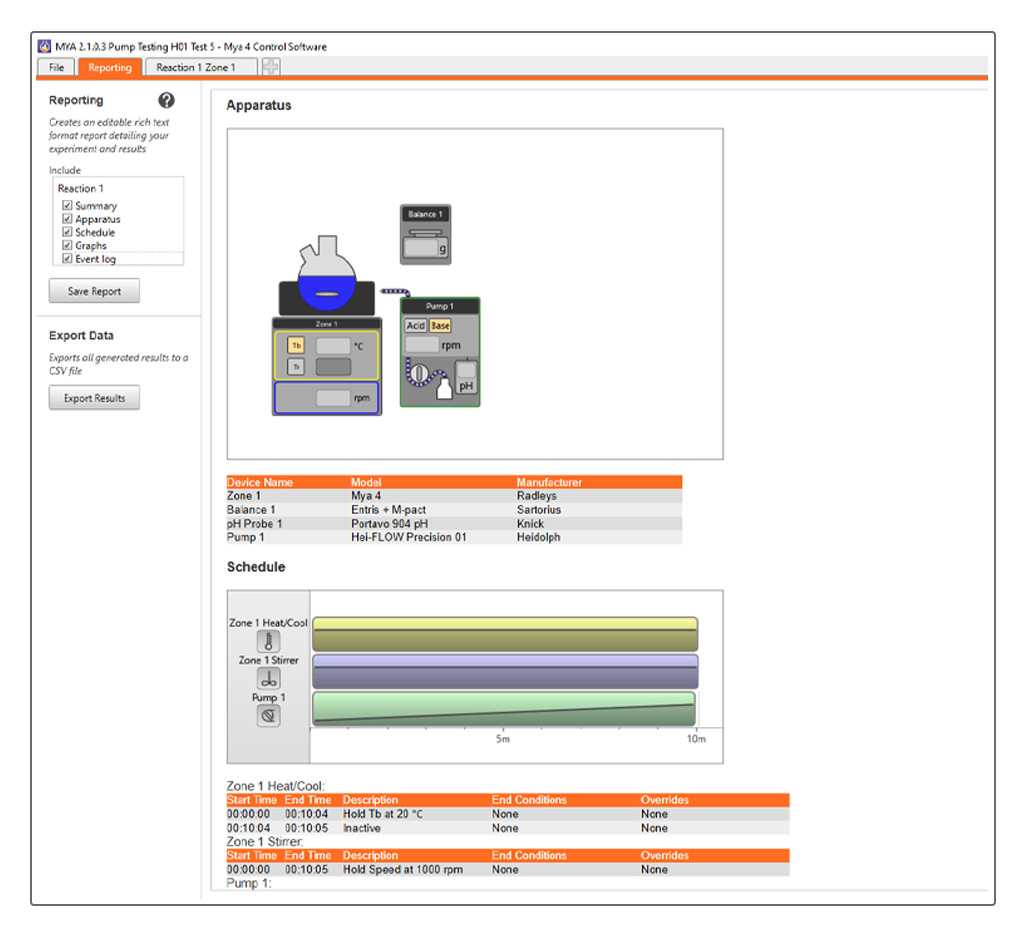

Create reports and share data

• Automatically logs and saves all data
• The report wizard creates detailed reports in rich text format (for word processing) or CSV (for spreadsheets)
• Share experiments and results with other Mya software users

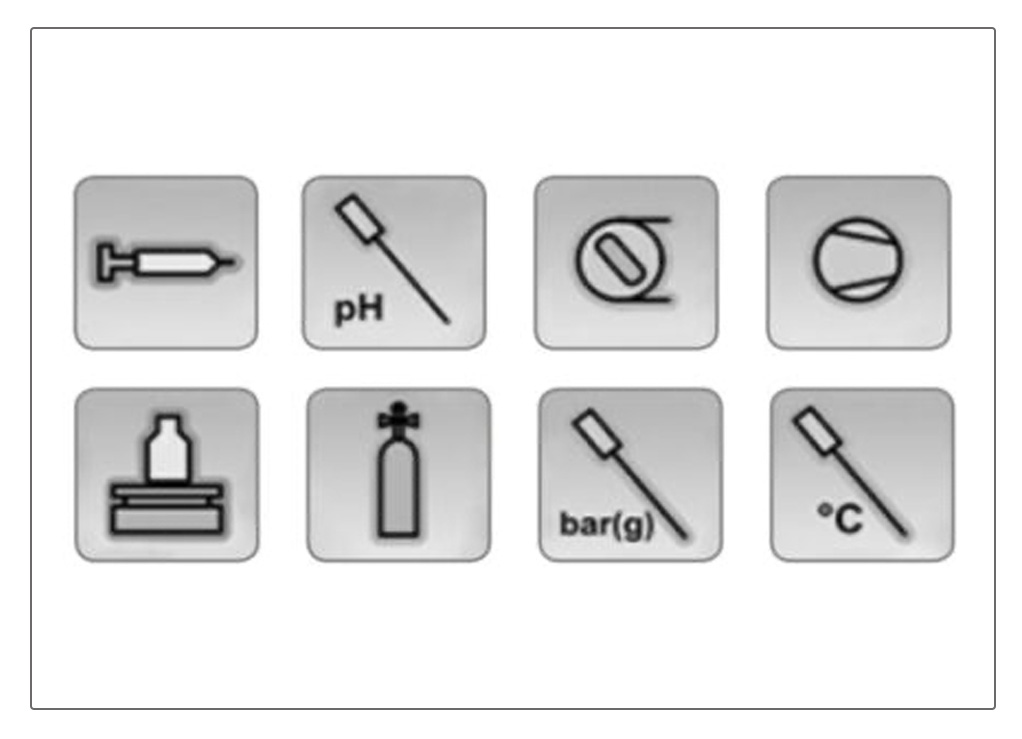

Control external devices

The Mya PC Control Software will control and log common 3rd party devices from this list:

  • Syringe Pumps
  • pH Sensors
  • Peristaltic Pumps
  • Balances
  • Vacuum Pumps
  • Gas Flow Controllers
  • Pressure Sensors

Mya Control Software integrates devices from a variety of manufacturers

  • Mya Control Software includes a library of pre-configured driver files allowing easy integration with a wide range of 3rd party devices.
  • Radleys also provide a ‘New Driver Configuration Service’ if required.
  • Our Driver Library includes various models from the following manufacturers:
Syringe PumpSyringe PumpHarvard
New Era
pH SensorspH SensorsKnick
Peristaltic PumpsPeristaltic PumpsCole-Parmer
Ismatec
Heidolph
Watson Marlow
BalancesBalancesA&D
Denver
Mettler
Ohaus
Precisa
Sartorius
Vacuum PumpsVacuum PumpsVacuubrand
Gas Flow ControllerGas Flow ControllerBronkhorst
Pressure SensorsPressure SensorsOmega
Temperature SensorsTemperature SensorsGeneric

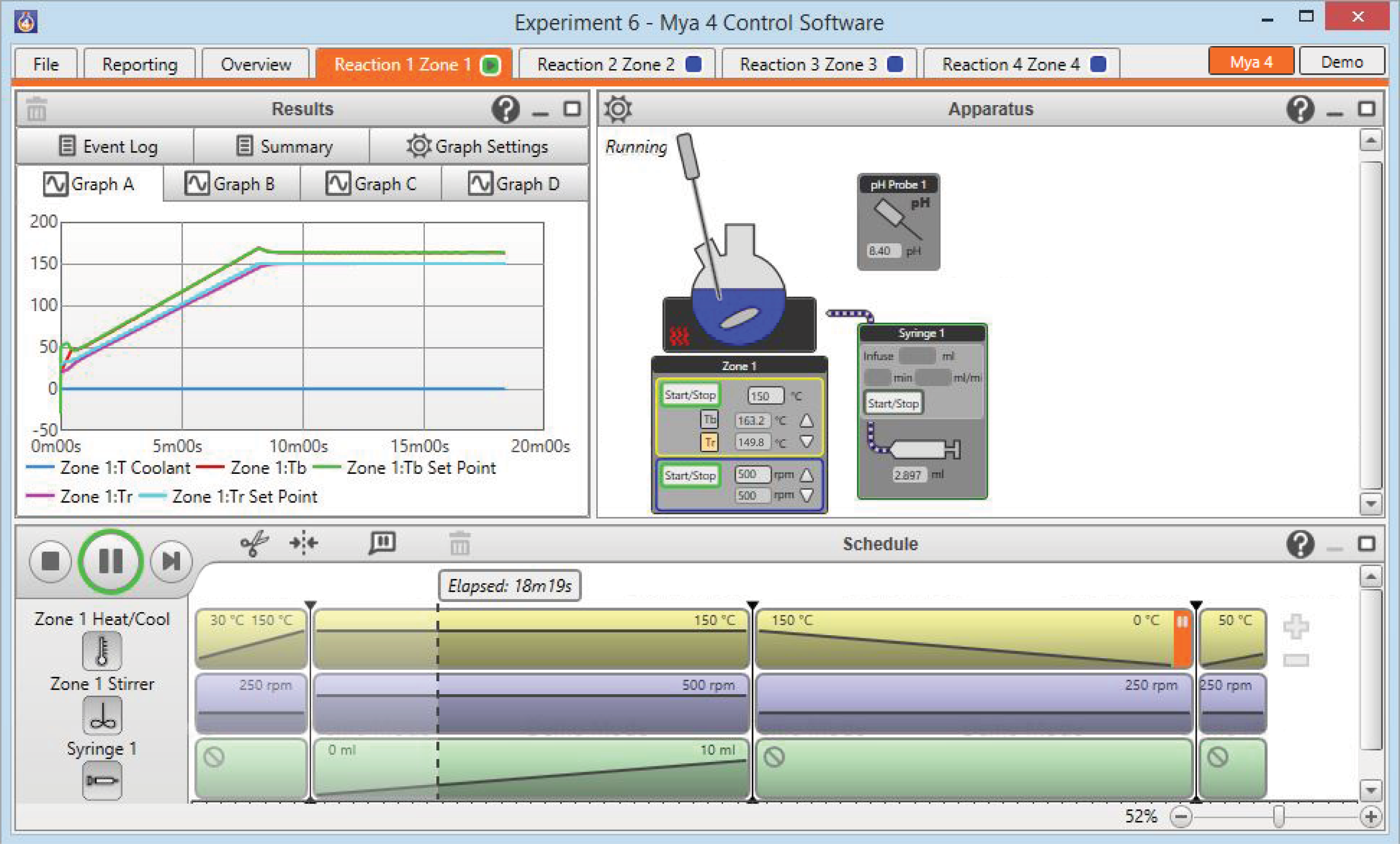

Mya 4 CS 3

Download and try the software for free

To evaluate Mya Control Software you can download a free Demo version.

  • Learn how the features of the software work
  • Simulate control of devices
  • Set up apparatus and create schedules
  • Share set ups and schedules with other Mya users
  • Analyse results and create reports for real or simulated data
Download free demo software

Minimum computer requirements to operate Mya Control Software



Operating systemMicrosoft® Windows® XP SP2/3, Microsoft® Windows® 7, 8 and 10
CPUDuo core 1.9 GHz processor
Memory2GB RAM minimal, 4GB RAM recommended
Hard disk30GB minimal, 5400rpm
GraphicsIntel® HD Graphics
Additional informationMicrosoft .Net drivers required
Internet 8 web explorer or equivalent
Once license is activated on a PC it is NOT possible to move it
