What's your application?​

The Heidolph large scale evaporators of the Hei-VAP Industrial series are perfectly designed for a great deal of different distilling processes, from standard evaporation without vacuum control up to complex distillation processes with vacuum control. Safety features guarantee a smooth distillation process, no matter what solvent you evaporate!

  • Standard and reflux distillations

  • Solvent recovery and recycling

  • Continuous unattended evaporation - with the Distimatic module

  • Solvent removal in fine chemical production

  • Kilo lab product isolation

  • Powder drying in API manufacture

  • Alcohol infusions and distillations

  • Food flavour extractions

intelligence

Intelligent

  • Easy Clip flask attachment for fast and easy change-over of flasks

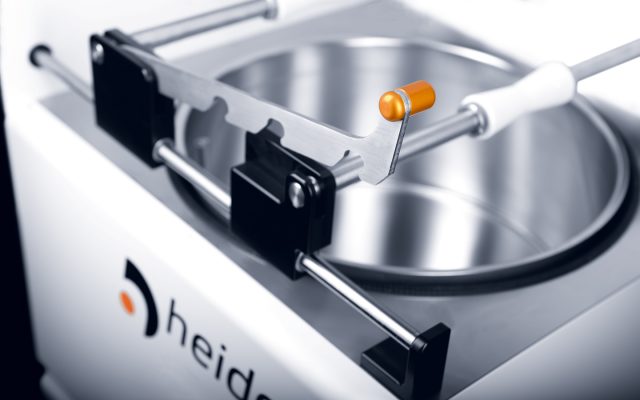

  • Patented evaporating flask support system enables one-person flask change
  • State-of-the-art touch screen operation
  • Integrated vacuum control and set-up guide
Safety-02 icon

Safe

  • Integrated water refill system and spillover prevention removes the worry of running dry
  • Universal heating bath for water or other bath fluids for temperatures up to 180°C
  • Emergency stop button lowers bath, stops rotation, vents vacuum and turns off the heating bath

Flexible

  • Optional Base Cart provides full manoeuvrability and removable panels for storage of vacuum pump, glassware, solvents or accessories
  • Choice of 10 different glassware assemblies and various accessories.

  • The brand-new EASY LOCK flask attachment allows for single-user safe flask exchange

  • Illuminated bath and evaporation flask allows for superior visual control

  • A guard hood consisting of a metal frame and safety glass covers the bath completely while providing clear visible monitoring

  • Increased throughput at reduced energy consumption due to an industry leading leak-proof vacuum.

  • Features a level regulation system to prevent from spilling over and potential floods in labUnique self-aligning flask support system allows for immediate "one-person operation" non-visible heating coils guarantee the most convenient and fastest cleaning of the bath.

  • Intuitive touch screen control for ease of operation

  • Unit powers off completely in case of a bath over temperature situation, overpressure and glassware breakage

  • No hassle or safety concerns due to low bath fluid levels: the self-filling water bath takes the worry out of running dry

  • Save time with up to 250 pre-programmed profiles of up to 999 process gradients

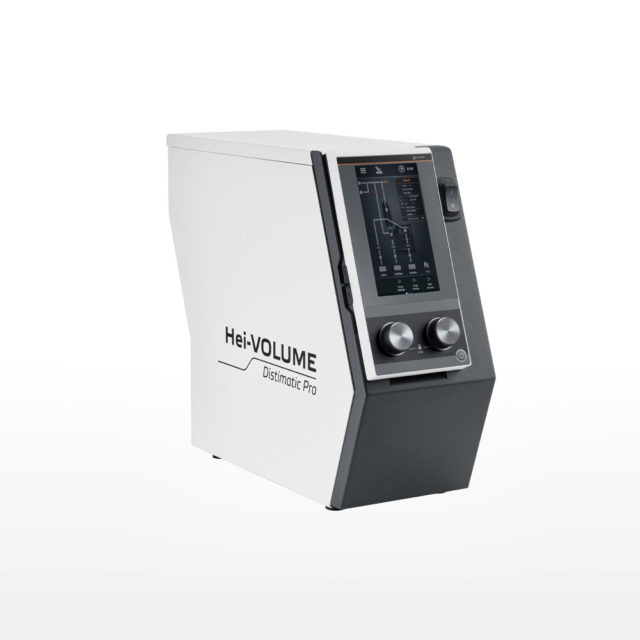

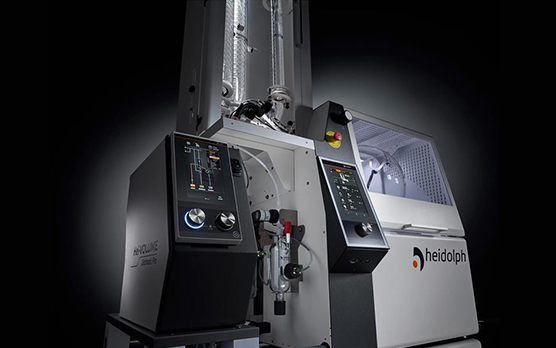

  • Automatic module Distimatic Industrial - For batch and continuous evaporation without limits - an affordable and more flexible alternative to common 50 or 100 litre evaporators

  • Receiver cassettes guard against glassware breakage while providing a self-standing support

  • Excellent user safety: condenser and receiving flasks are protected by high-impact transparent PMMA doors

Hei-VAP Industrial (incl. universal heating bath for oil and water)

518-11100-00    Hei-VAP Industrial – Glassware Set R
518-12100-00    Hei-VAP Industrial – Glassware Set RC
518-13100-00    Hei-VAP Industrial – Glassware Set A
518-15100-00    Hei-VAP Industrial – Glassware Set AC
518-14102-00    Hei-VAP Industrial – Glassware Set A1
518-16102-00    Hei-VAP Industrial – Glassware Set A1C
518-14100-00    Hei-VAP Industrial – Glassware Set A2
518-16100-00    Hei-VAP Industrial – Glassware Set A2C
518-18100-00    Hei-VAP Industrial – Glassware Set R Shorty
518-19100-00    Hei-VAP Industrial – Glassware Set RC Shorty
518-18102-00    Hei-VAP Industrial – Glassware Set K
518-19102-00    Hei-VAP Industrial – Glassware Set KC

Hei-VAP Industrial B (incl. universal heating bath for oil and water)

518-21100-00    Hei-VAP Industrial B – Glassware Set R
518-22100-00    Hei-VAP Industrial B – Glassware Set RC
518-23100-00    Hei-VAP Industrial B – Glassware Set A
518-25100-00    Hei-VAP Industrial B – Glassware Set AC
518-24102-00    Hei-VAP Industrial B – Glassware Set A1
518-26102-00    Hei-VAP Industrial B – Glassware Set A1C
518-24100-00    Hei-VAP Industrial B – Glassware Set A2
518-26100-00    Hei-VAP Industrial B – Glassware Set A2C
518-28100-00    Hei-VAP Industrial B – Glassware Set R Shorty
518-29100-00    Hei-VAP Industrial B – Glassware Set RC Shorty
518-28102-00    Hei-VAP Industrial B – Glassware Set K
518-29102-00    Hei-VAP Industrial B – Glassware Set KC

Automatic Modules for Hei-VAP Industrial

591-54000-00    Industrial Distimatic Automatic Module inc Residue Extraction for Glass Set A
591-55000-00    Industrial Distimatic Automatic Module including Residue Extraction for Glass Set R
591-52000-00    Hei-VAP Industrial Distimatic Automatic Module without Residue Extraction

Hei-Vap Industrial Packages

518-41100-00 – Hei-VAP Industrial – All-round Package

This package includes:

  • Hei-VAP Industrial model with glassware R – Recommended for all standard distillations
  • Base Cart
  • Tubing set with 16 meter piece incl. hose clamps
  • Vacuum Pump Rotavac 20
  • Chiller Hei-CHILL 3000
  • 40 l – Kryo 30 thermal fluid

518-46100-00 – Hei-VAP Industrial – Performance Plus Package

This package includes:

  • Hei-VAP Industrial model with glassware A1C – For low-boiling solvents and highest recovery rates
  • Base Cart
  • Tubing set with 16 meter piece incl. hose clamps
  • Vacuum Pump Rotavac 20
  • Chiller Hei-CHILL 5000
  • 40 l – Kryo 30 thermal fluid

Distimatic Packages for Hei-VAP Industrial

518-13154-00    Distimatic Industrial Platinum 2 Pkg A Glassware Set
518-11155-00    Distimatic Industrial Platinum 1 Pkg R Glassware Set
518-14154-00    Distimatic Industrial Platinum 3 Pkg A2 Glassware Set
518-14154-20    Distimatic Industrial Platinum 7 Pkg A1 Glassware Set
518-13152-00    Distimatic Industrial Platinum 5 Pkg A Glassware Set
518-11152-00    Distimatic Industrial Platinum 6 Pkg R Glassware Set
518-14152-00    Distimatic Industrial Platinum 4 Pkg A2 Glassware Set
518-14152-20    Distimatic Industrial Platinum 8 Pkg A1 Glassware Set

Accessories

15-300-003-21   Evaporating Flask 20Ltr for Hei-Vap Industrial
15-300-003-22   Evaporating Flask 10Ltr for Hei-Vap Industrial
15-300-003-23   Evaporating Flask 6Ltr for Hei-Vap Industrial
15-300-003-24   Powder Flask 10Ltr for Hei-Vap Industrial
15-300-003-25   Powder Flask 20Ltr for Hei-Vap Industrial
15-300-004-11   Receiving Flask 10Ltr with Drainage Underneath
11-300-002-95   Clamp S40/41
14-014-003-06   Vapour Temperature Sensor
591-23000-00    Base Cart for all Hei-VAP Industrial Models
591-34000-00    Tube Set for Hei-VAP Industrial (16m for Vacuum + Water Connection)
569-00600-00    5Ltr Heating Bath Liquid up to 220°C
591-07210-00    Vacuum Pump Rotavac 20

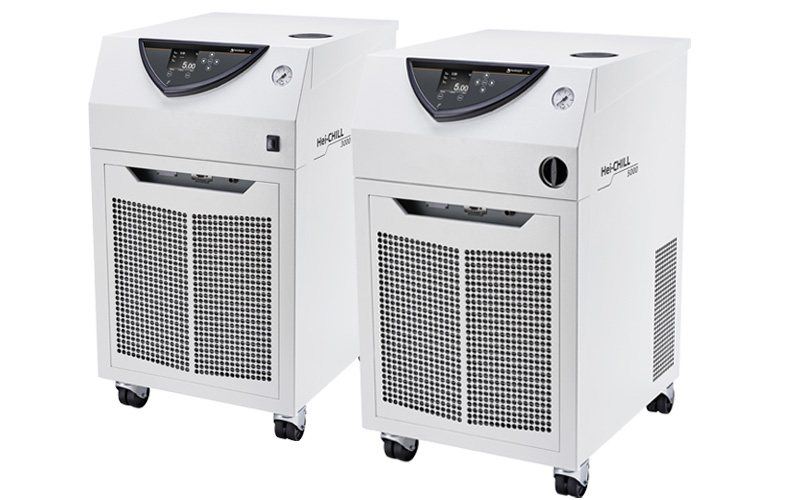

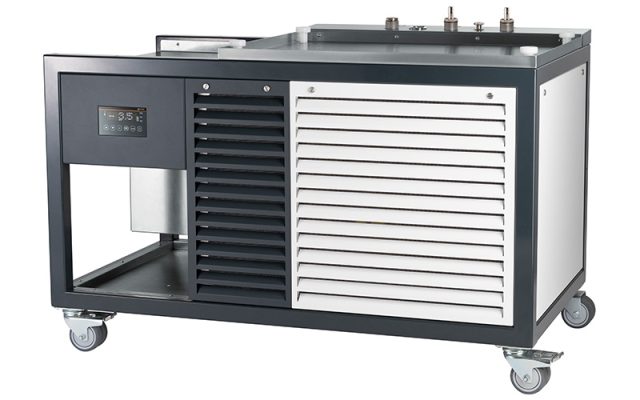

Hei-CHILL Chillers

Hei-CHILL Chillers

Chillers for Hei-VAP Industrial Large-Scale Evaporators

  • Hei-CHILL 3000
  • Hei-CHILL 5000

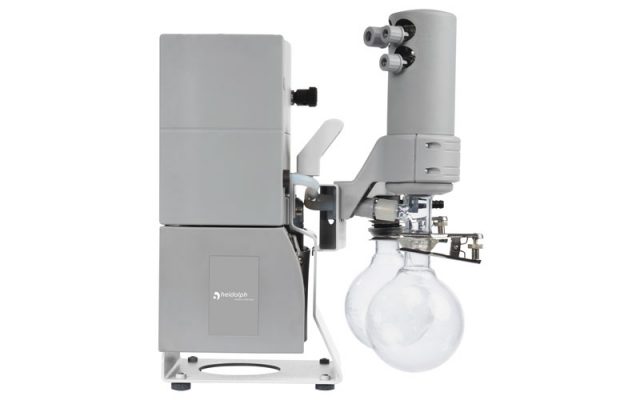

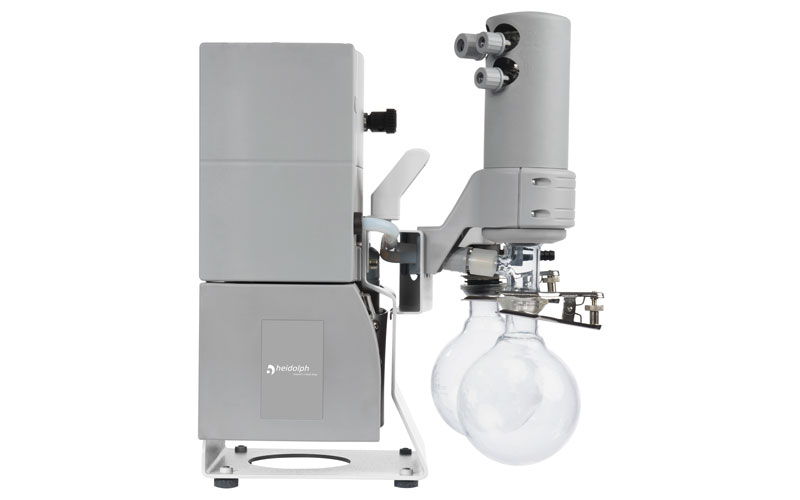

Valve-Regulated Vacuum Pumps

Valve-Regulated Vacuum Pumps

Standard vacuum pumps can be controlled manually or via valve operated vacuum controller.

  • All components which come in contact with media are built from chemically resistant fluoropolymer
  • The durable PTFE design guarantees an superior diaphragm lifespan
  • The head cover and clamping disc have a stable core made of metal which offers unsurpassed long-term performance

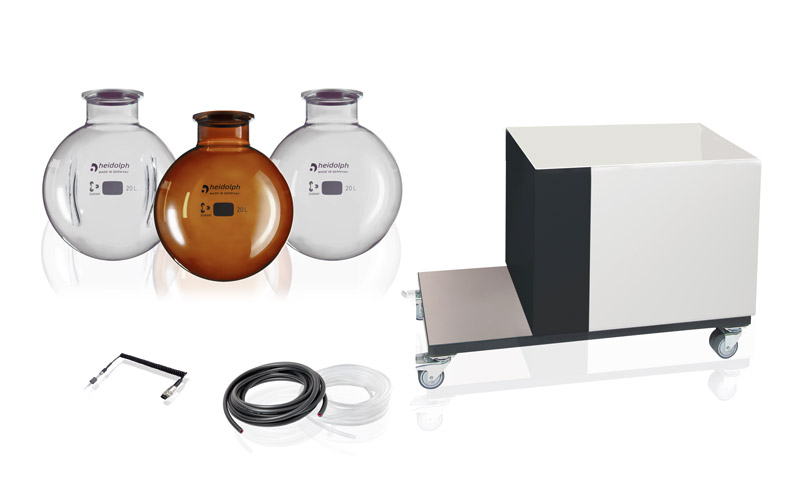

Hei-VAP-Industrial-Accessories

Hei-VAP Industrial Accessories

  • Glassware
  • Evaporating flasks
  • Powder flasks
  • Receiving flasks
  • Additional accessories

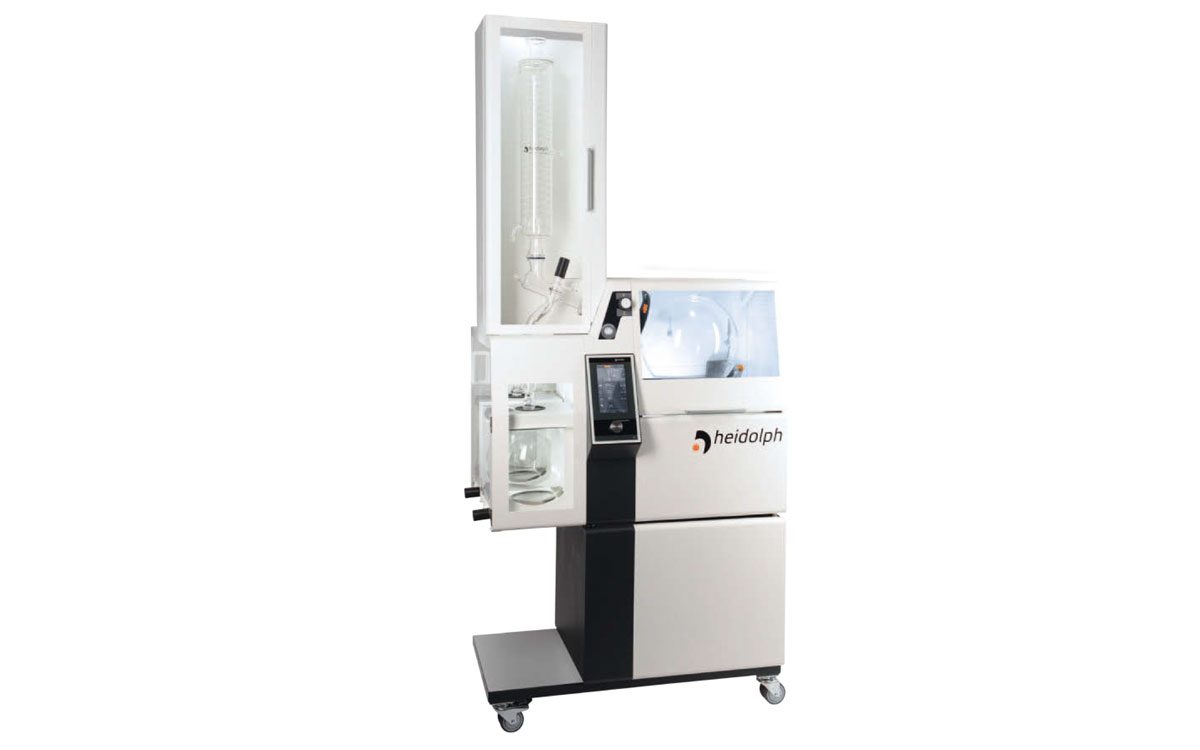

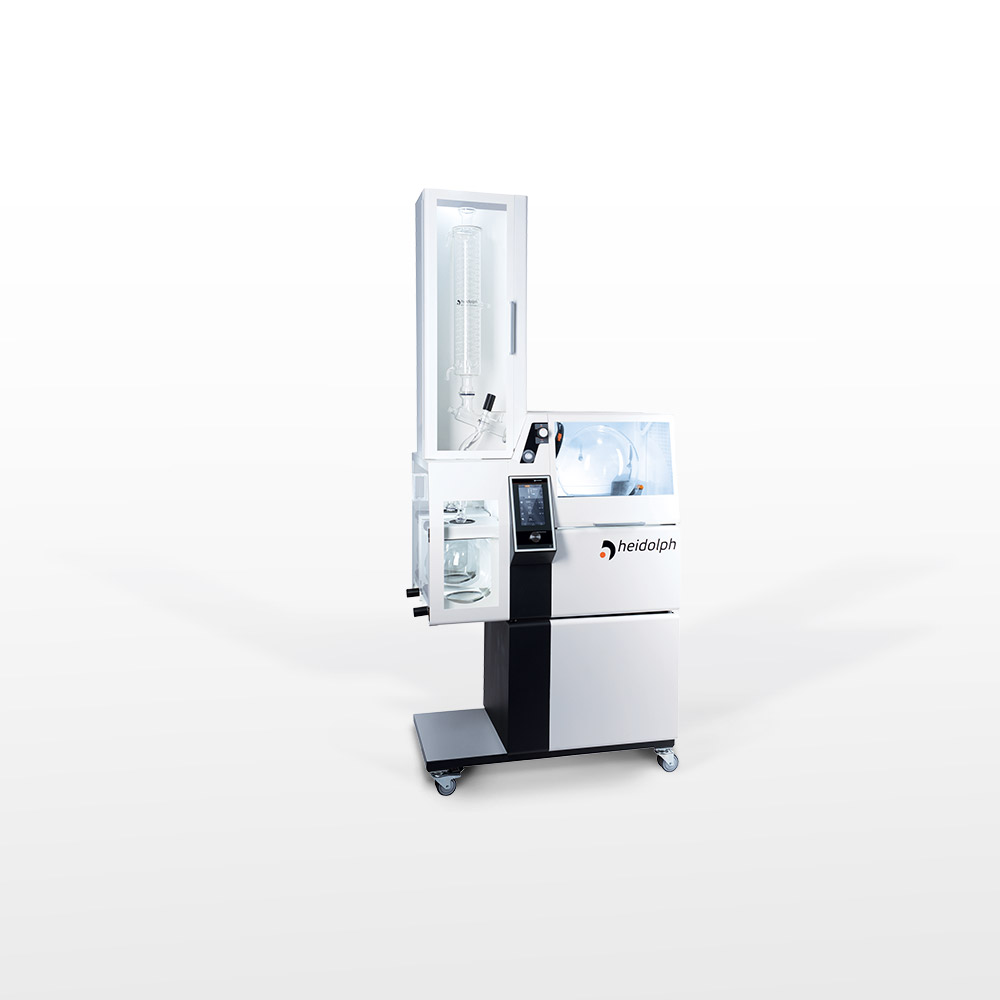

Hei-VAP Industrial

Range

  • Hei-VAP Industrial (without Base Cart)

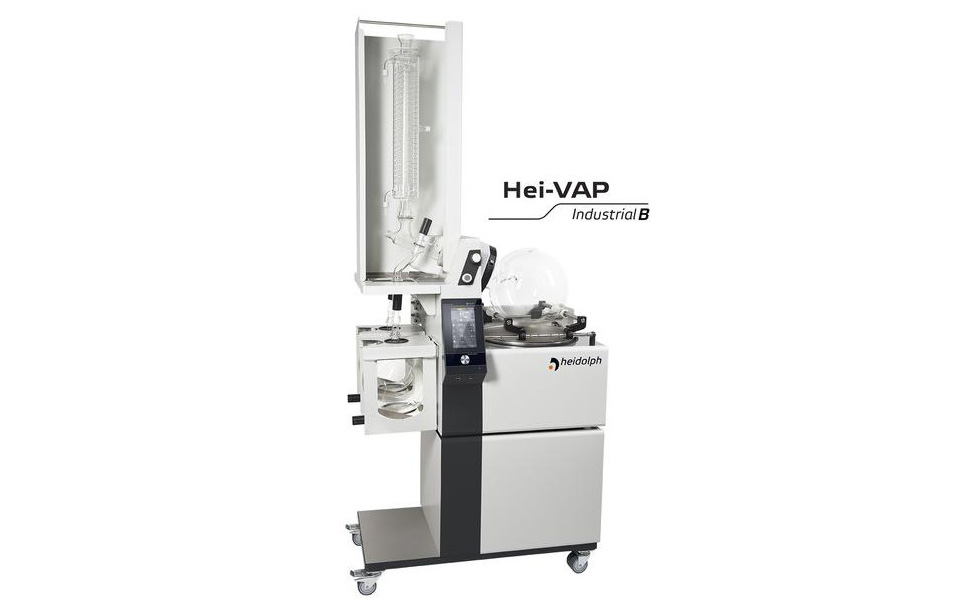

  • Hei-VAP Industrial B- as Hei-Vap Industrial but comes without:
    –  Metal frame and safety glass hood covering the bath
    –  PMMA door covering the glassware assembly
    –  PMMA latching door covering the receiving cassettes

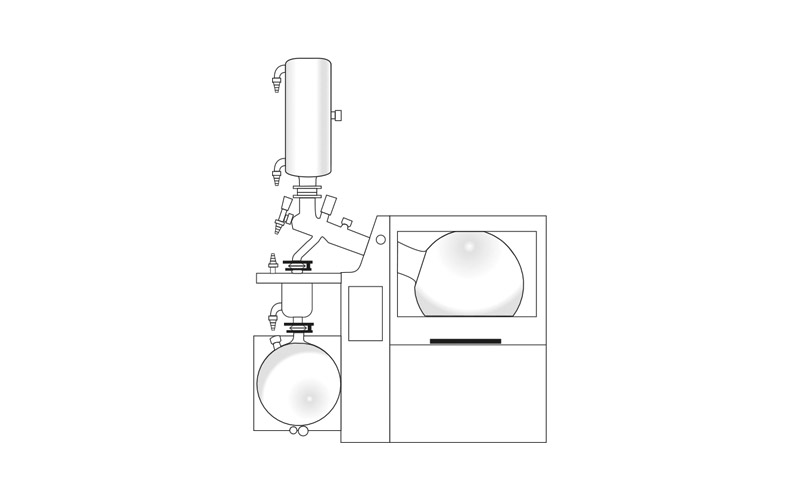

Glassware Shorty R

Glassware Shorty R

  • Identical to glassware R, but features a condenser that is 320 mm shorter
  • Distillation capacity remains the same. This assembly is ideal in laboratories for hood applications or where height is restricted

Glassware Shorty RC

  • Identical to glassware assembly Shorty R, but features two receiving flasks

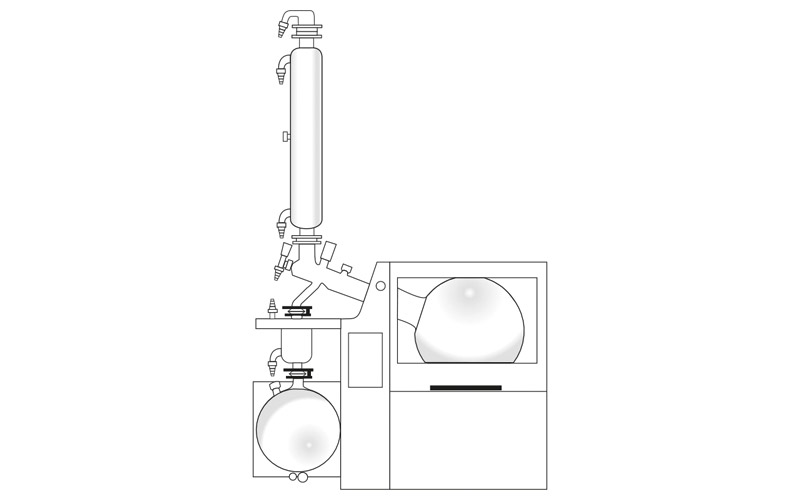

Glassware R

Glassware R

  • This glassware assembly includes one ascending condenser, one 20-l evaporating flask, one 10-l receiving flask and is recommended for all standard distillations

Glassware RC

  • Identical to glassware assembly R, but features two receiving flasks

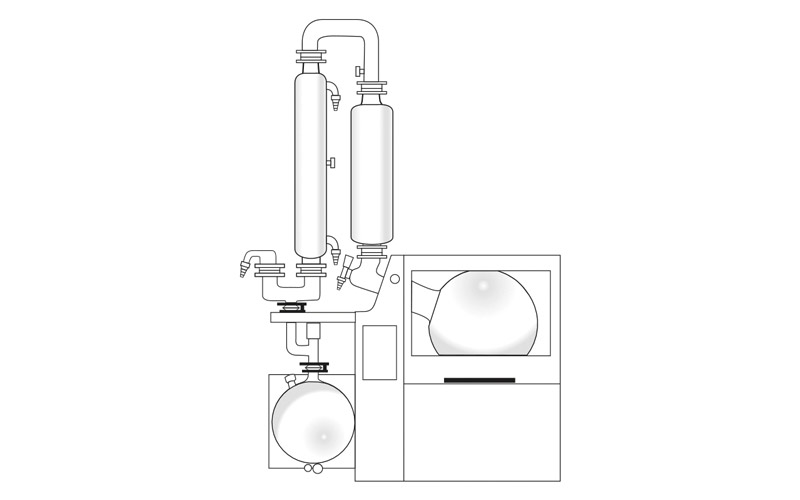

Glassware A

Glassware A

  • This glassware assembly includes one descending condenser, one expansion vessel, one 20-l evaporating flask, one 10-l receiving flask and is recommended for solvents that tend to splash and foam

Glassware AC

  • Identical to glassware assembly A, but features two receiving flasks

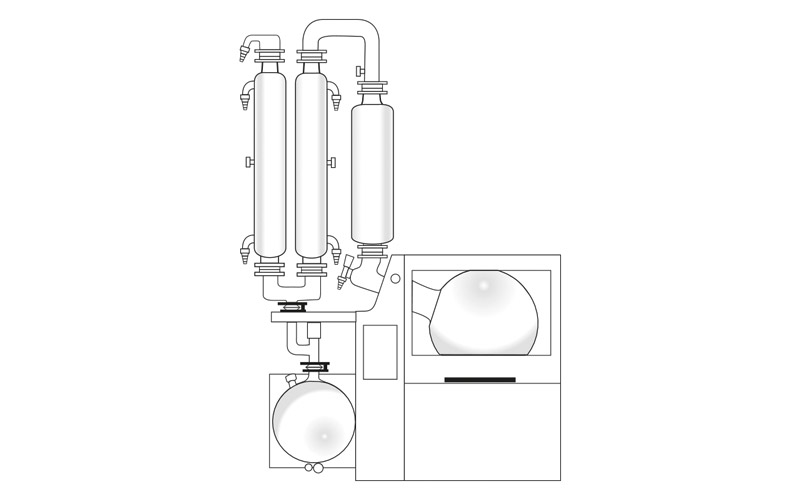

Glassware A2

Glassware A2

  • This glassware assembly includes one ascending, one descending condenser and one expansion vessel, one 20-l evaporating flask, one 10-l receiving flask
  • For low-boiling solvents and highest recovery rates

Glassware A2C

  • Identical to glassware assembly A2, but features two receiving flasks

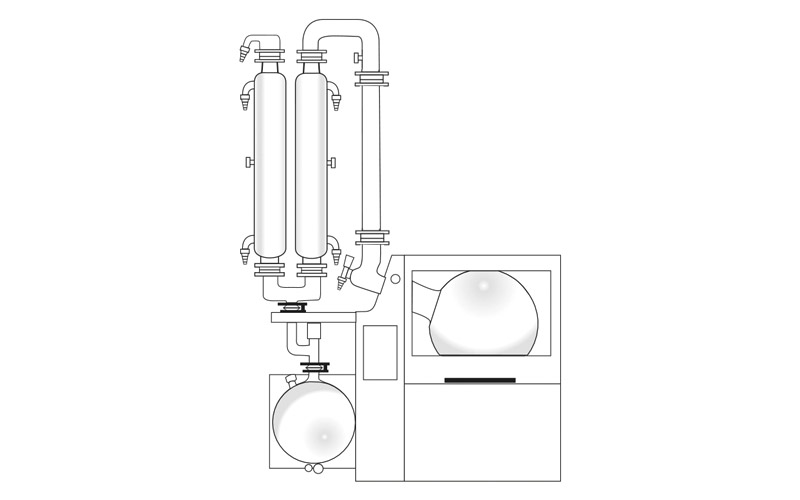

Glassware A1

Glassware A1

  • This glassware assembly includes one ascending, one descending condenser, one 20-l evaporating flask, one 10-l receiving flask
  • For low-boiling solvents and highest recovery rates

Glassware A1C

  • Identical to glassware assembly A1, but features two receiving flasks

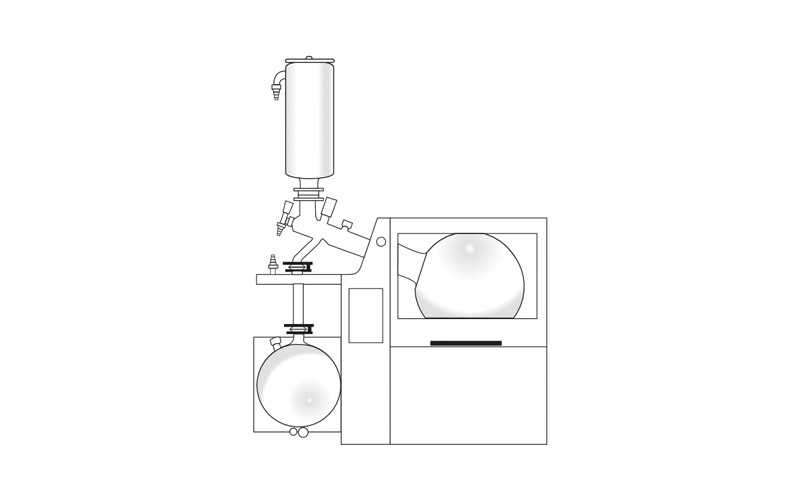

Glassware K

Glassware K

  • Dry-ice condenser for low-boiling solvents;
  • Comes with one 20-l evaporating flask and one 10-l receiving flask

Glassware KC

  • Identical to glassware assembly K, but features two receiving flasks
