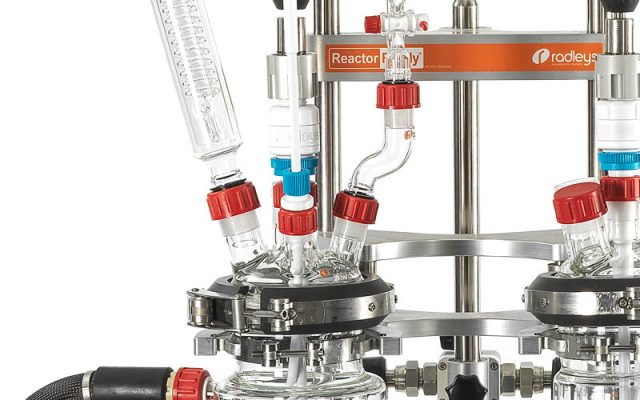

Reactor-Ready Duo Lab Reactor

Reactor-Ready Duo shares the same unique features as Reactor-Ready but holds two independent jacketed glass reaction vessels. The system can be configured to operate with a single thermoregulator controlling the jacket temperature of both vessels simultaneously; or with two thermoregulators controlling the temperature of each vessel independently.

  • Interchangeable

    Rapid exchange of both vessels independently, with quick-release vessel clamp and hose couplings.

  • Flexible

    Choice of manifold kits allow two vessels to run from a single thermoregulator or two separate thermoregulators.

  • Parallel or series

    System accepts two overhead stirrers which can be operated independently.

  • Take control

    Use optional Control Software to control fluid transfer between vessels.

Applications

Duo Icon

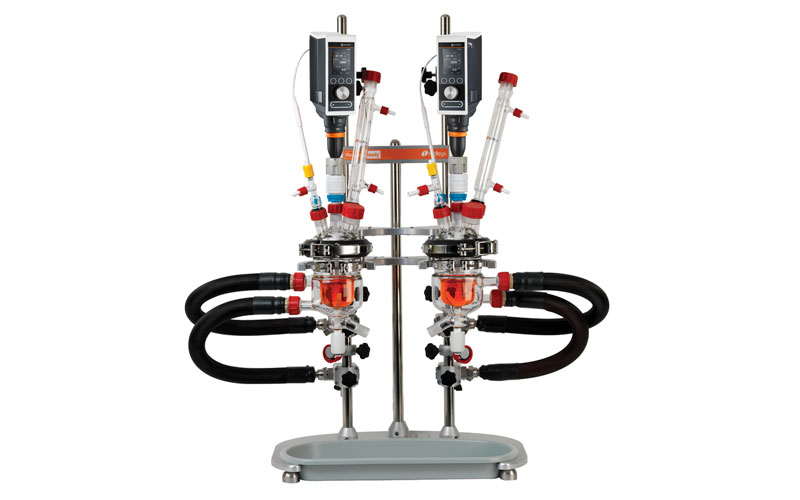

Parallel synthesis or reaction optimisation

Use similar or different size vessels and vary stirring speed, stirrer shape and temperature between vessels

2 part reaction icon

Two stage reaction

Transfer reactant from one vessel to the other using vacuum or a pump

Duo Single Reaction

Single reaction vessel

Using the second vessel as either a receiving or feed vessel (where reagents can be pre-heated or pre-cooled prior to addition)

...it allows us to run reactions in parallel, whereby we use a single circulator to deliver the same temperature to adjacent vessels, allowing us to easily vary other key experimental parameters.Associate Professor, Stefan Bon, Department of Chemistry, University of Warwick

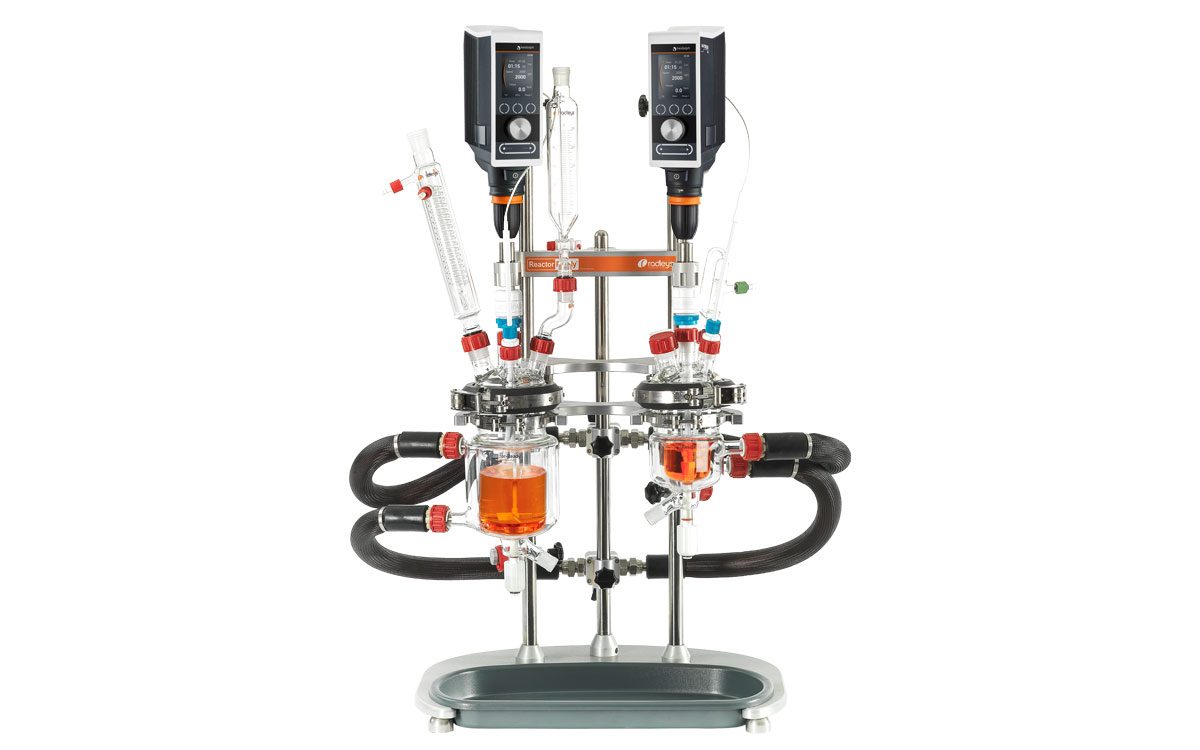

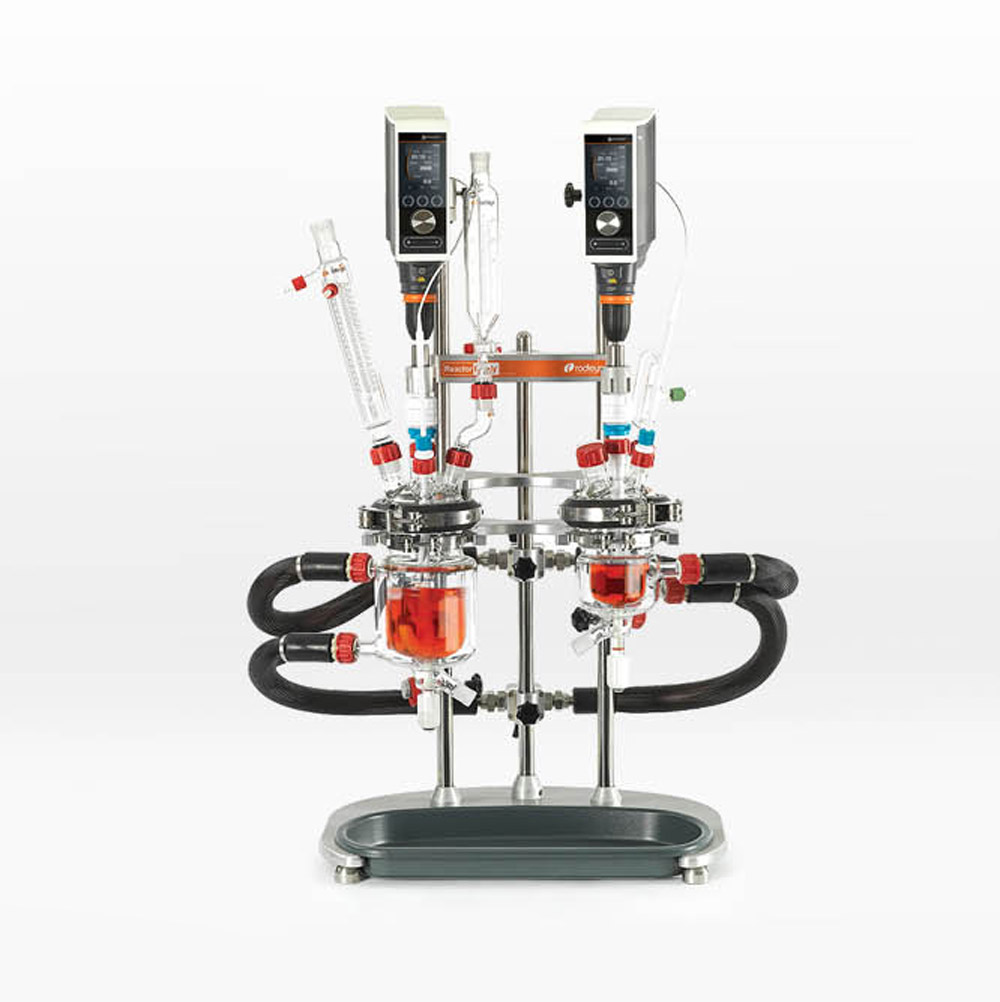

Key features

Reactor-Ready-Duo-Key-features

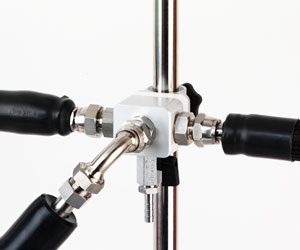

  1. Thermofluid Manifolds

    • Choice of two manifolds kits
    • Single circulator manifolds
    • Double circulator manifolds

  2. Vessels

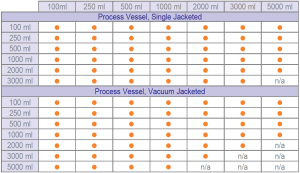

    • 100ml to 5 litres
    • Combine different volumes
    • Vacuum jacketed options
    • Process and standard geometry
  3. Unique Vessel Clamp

    • Supports two vessels
    • Change vessels independently
    • Change vessels in minutes

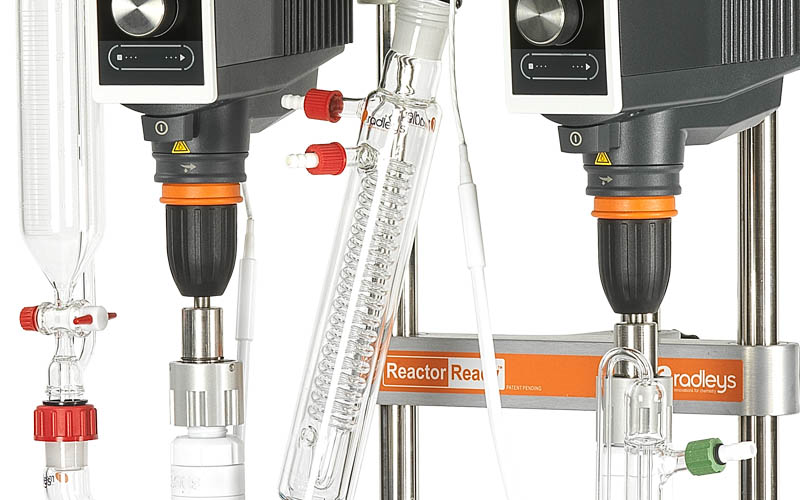

  4. Simple Stirrer Alignment

    • Set and lock
    • Independent stirring for each vessel
  5. Patented Stirrer Coupling

    • Drop in
    • No tools
    • No fuss

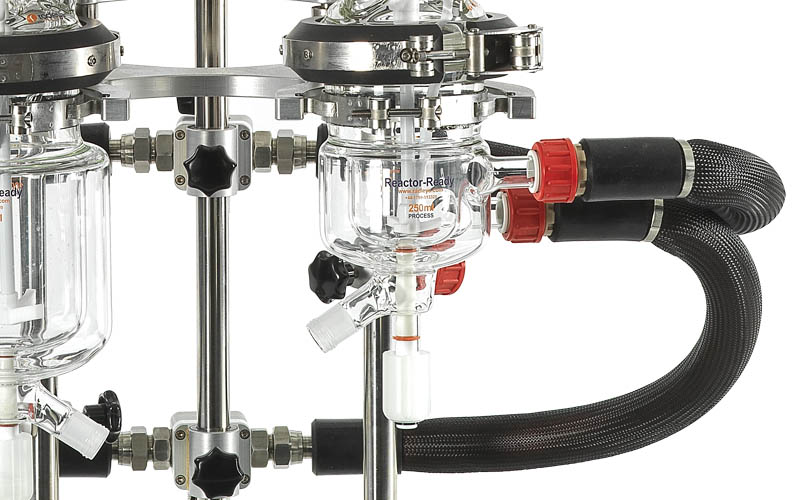

  6. Hose Couplings

    • Quick-release
    • Connect in seconds
    • Chemical-resistant PEEK
  7. Strong Framework

    • Heavy duty base
    • Solid s/steel support rods
    • Large drip tray
Reactor Ready Duo

Reactor-Ready Duo Core and Components

Easy-to-order Reactor-Ready Duo Core system includes all the framework components required for operation

Core Features include:

  • Robust heavy-duty framework features solid stainless steel support rods
  • Two separate quick release clamps support each of the vessels independently
  • Large drip tray will retain vessel contents
  • Manifold & Hose kits must be ordered separately
Reactor Ready Duo

RR121300 Core System includes

  • Duo stand with base, drip tray, support rods, bosses and all clamps
  • 4 x Hose tidies
  • 2 x PTFE Stirrer guides and couplings
  • 2 x Glass reaction vessel lids including sealing caps 1 x B19, 2 x B24, 1 x B29, 1 x B34
  • 2 x Vessel FEP O-ring seals and PTFE centering collars
  • 2 x Stainless steel vessel support collars
Reactor Ready Duo

Reactor-Ready Duo Manifolds & Hoses

A choice of manifold kits for use with one or two thermoregulators (circulators)

Reactor Ready Duo

RR121310 Double Circulator Manifold and Hose Kit

The double circulator kit is designed to work with two separate thermoregulators controlling the temperature of each vessel independently. With this set-up both vessels can operate at different temperatures.

  • R/H Upper Return Manifold with Vent Valve
  • L/H Upper Return Manifold with Vent Valve
  • R/H Lower Supply Manifold with Drain Valve
  • L/H Lower Supply Manifold with Drain Valve
  • 4 x Quick-Release Insulated Hoses, 60cm
  • 4 x Sealing Caps for Hoses
Reaction-Ready Duo

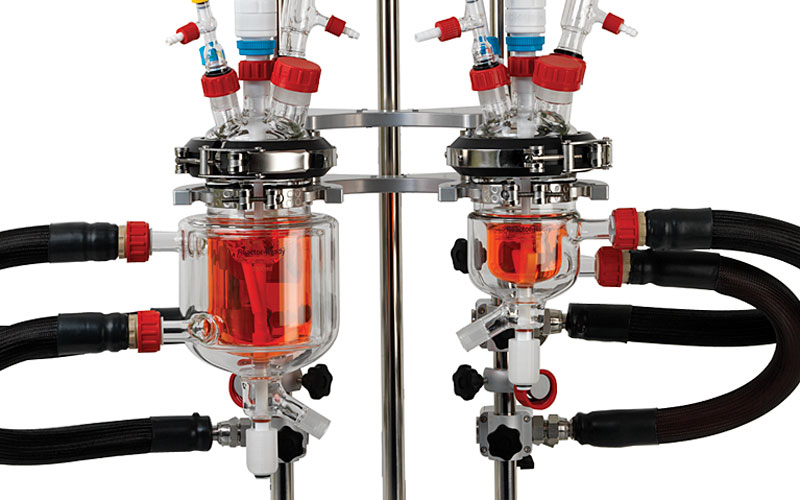

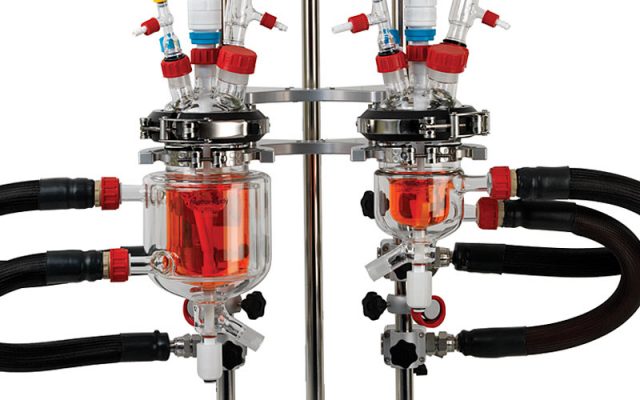

RR121305 Single Circulator Manifold and Hose Kit

This single circulator kit is designed to work with one thermoregulator controlling the temperature of both vessels simultaneously. With this set-up both vessels would operate at the same temperature. The manifolds are supplied with a blanking plug should you wish to run only one vessel.

  • Central Upper Return Manifold with Vent Valve
  • Central Lower Supply Manifold with Drain Valve
  • 4 x Quick-Release Insulated Hoses, 70cm
  • 4 x Sealing Caps for Hoses
  • 2 x Stainless steel blanking plugs
Reactor Ready Duo

How to order Reactor-Ready Duo

  1. Select the Reactor-Ready Duo Core: RR121300
  2. Choose Manifold and Hose kit for one or two circulators
  3. Choose the Vessel Kit or Kits you require by selecting the vessel volume and style
  4. Select the overhead stirrers you need
  5. If you need a thermoregulator, hoses, hose adapters, thermofluid or accessory glassware, then select from the accessory list

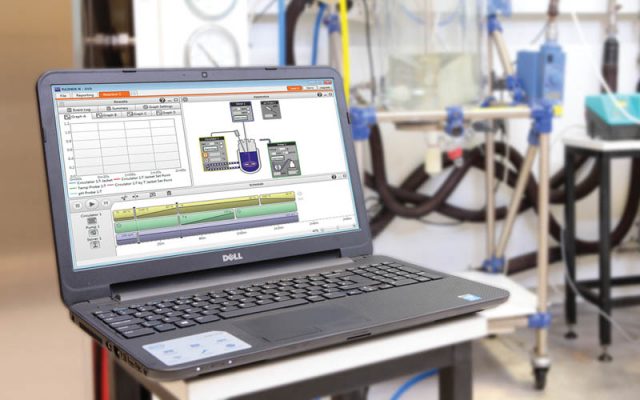

  6. If you need automation add AVA Software and Data Hub

Range

Reactor-Ready Duo Base System

RR121300           Reactor-Ready Duo Core

Double Circulator Manifold and Hose Kit

The double circulator kit is designed to work with two separate thermoregulators controlling the temperature of each vessel independently. With this set-up both vessels can operate at different temperatures.

RR121310 comprises:

  • R/H Upper Return Manifold with Vent Valve
  • L/H Upper Return Manifold with Vent Valve
  • R/H Lower Supply Manifold with Drain Valve
  • L/H Lower Supply Manifold with Drain Valve
  • 4 x Quick-Release Insulated Hoses, 60cm
  • 4 x Sealing Caps for Hoses

Single Circulator Manifold and Hose Kit

This single circulator kit is designed to work with one thermoregulator controlling the temperature of both vessels simultaneously. With this set-up both vessels would operate at the same temperature. The manifolds are supplied with a blanking plug should you wish to run only one vessel.

RR121305 comprises:

  • Central Upper Return Manifold with Vent Valve
  • Central Lower Supply Manifold with Drain Valve
  • 4 x Quick-Release Insulated Hoses, 70cm
  • 4 x Sealing Caps for Hoses
  • 2 x Stainless steel blanking plugs

Reactor-Ready Duo Manifold + Hose Kits

RR121119           Central Upper Return Manifold with Vent Valve – NW12
RR121120           Central Lower Supply Manifold with Drain Valve – NW12
RR121114           Quick-Release Insulated Hose 70cm HT Vessel-to-Manifold
RR121114           Quick-Release Insulated Hose 70cm HT Vessel-to-Manifold
RR121114           Quick-Release Insulated Hose 70cm HT Vessel-to-Manifold
RR121114           Quick-Release Insulated Hose 70cm HT Vessel-to-Manifold
RR121115           R/H Upper Return Manifold with Vent Valve – NW12
RR121116           R/H Lower Supply Manifold with Drain Valve – NW12
RR121117           L/H Upper Return Manifold with Vent Valve – NW12
RR121118           L/H Lower Supply Manifold with Drain Valve – NW12
RR121130           Quick Release Insulated Hose 60cm HT Vessel-to-Manifold – NW12
RR121130           Quick Release Insulated Hose 60cm HT Vessel-to-Manifold – NW12
RR121130           Quick Release Insulated Hose 60cm HT Vessel-to-Manifold – NW12
RR121130           Quick Release Insulated Hose 60cm HT Vessel-to-Manifold – NW12
