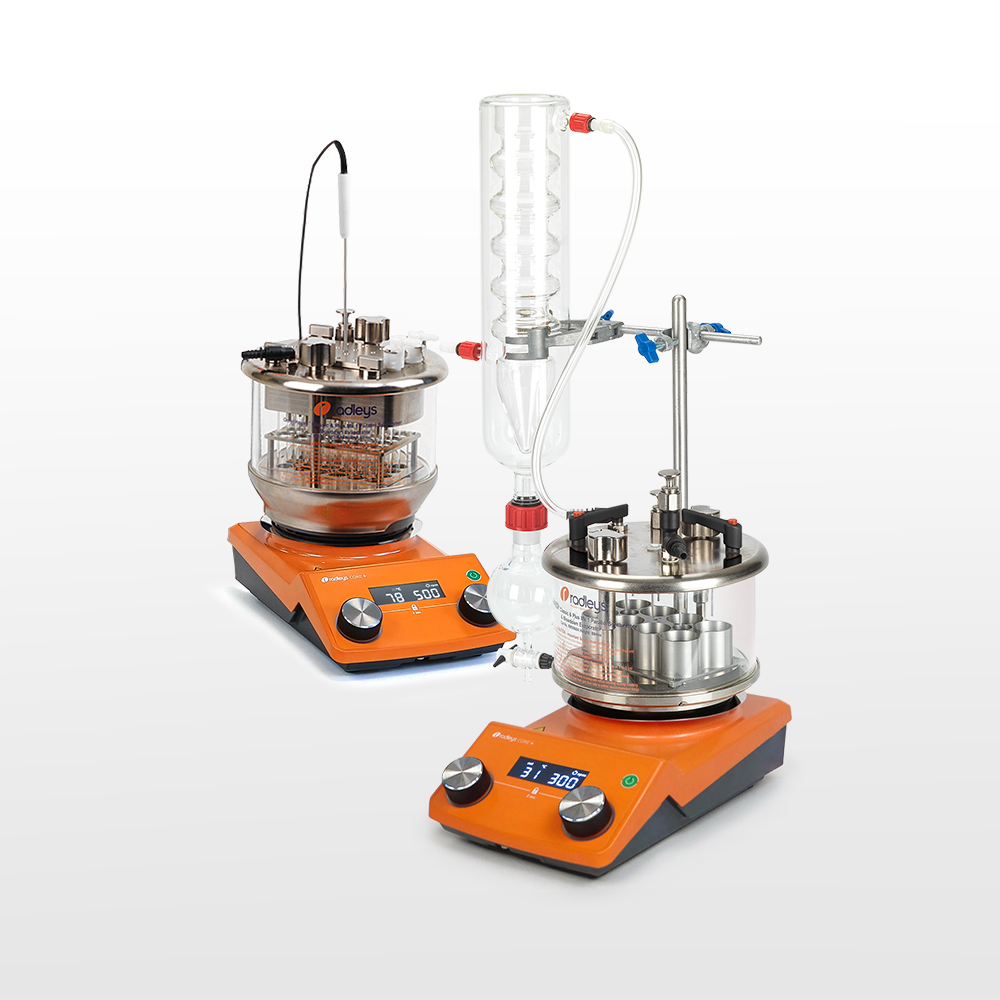

GreenHouse Blowdown Evaporator

Move away from processing samples one at a time by streamlining your post-purification evaporation with GreenHouse Blowdown. Perform parallel evaporation of samples in either 8 or 24 vials, tubes or microtiter plates.

This compact evaporation system allows you to either upgrade your existing GreenHouse Plus Parallel Synthesiser to perform parallel evaporation, or to purchase as a separate stand alone benchtop evaporator.

Request a demo

GreenHouse Blowdown Evaporator

Environmentally-friendly parallel evaporation of chemistry samples and HPLC fractions

  • Be productive

    Perform parallel evaporation on multiple samples simultaneously. Evaporation is directly from your sample vial.

  • Be green

    Trap your solvent and prevent release into the atmosphere.

  • Be precise

    Digital temperature control offers precise management of evaporation rate and temperature; protecting sensitive samples.

  • Be compatible

    Microtiter plate footprint fits your automated process or robotic platform.

GreenHouse Blowdown Evaporator

  • Precise control of inert gas flow combined with digital control of heating carefully evaporates your samples
  • Interchangeable pin plates with either 8 or 24 hollow blowdown pins deliver an equal flow of gas to each tube, vial or well
  • The absence of a vacuum avoids bumping, protecting the sample during evaporation
  • Nickel plated aluminium offers excellent chemical resistance
  • Easy viewing of samples during evaporation
  • Optional flowmeter precisely controls flow of inert drying gas

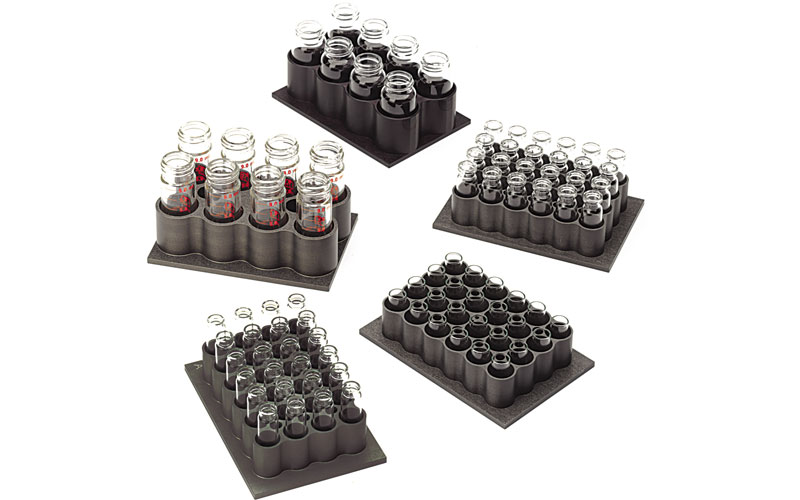

GreenHouse Blowdown Vials

Accommodates GreenHouse tubes, vials and microtiter plates

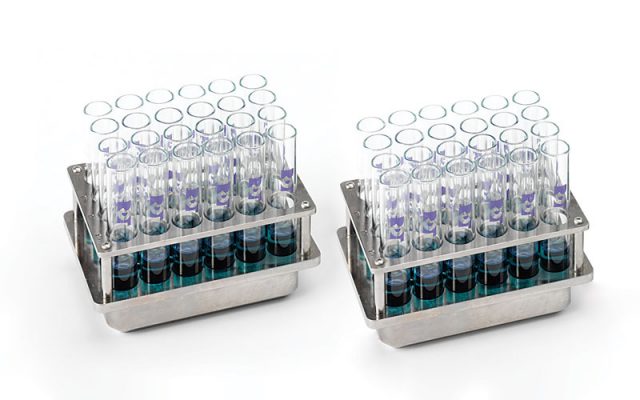

  • GreenHouse reaction tubes can be evaporated directly in the standard GreenHouse reaction block without the need to load or reload the block
  • A selection of vial racks are available to hold the most popular vial sizes in 6 x 4 and 4 x 2 arrays

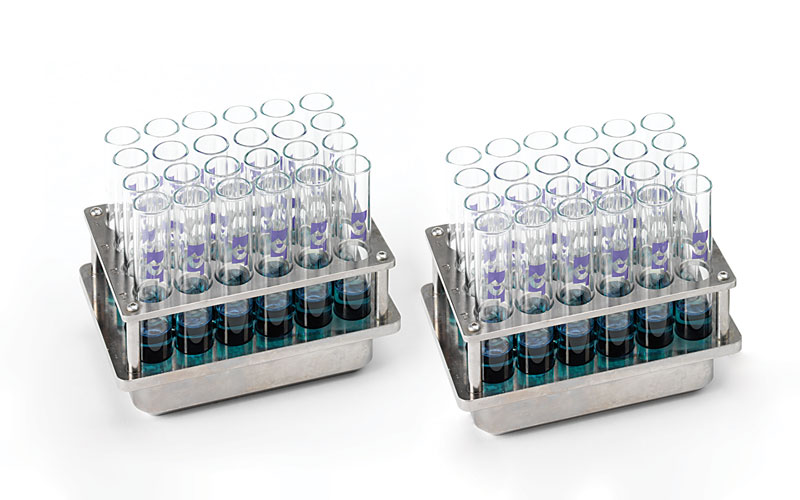

GreenHouse Blowdown test

Compatible with:

  • 0.5 ml to 7 ml GreenHouse tubes
  • 8 or 24 position vial racks
  • 13 mm, 13.8 mm, 15 mm, 24.3 mm & 27.8 mm ø vials
  • 8 or 24 well microtiter plates
Greenhouse vial racks adapters

GreenHouse Blowdown Systems

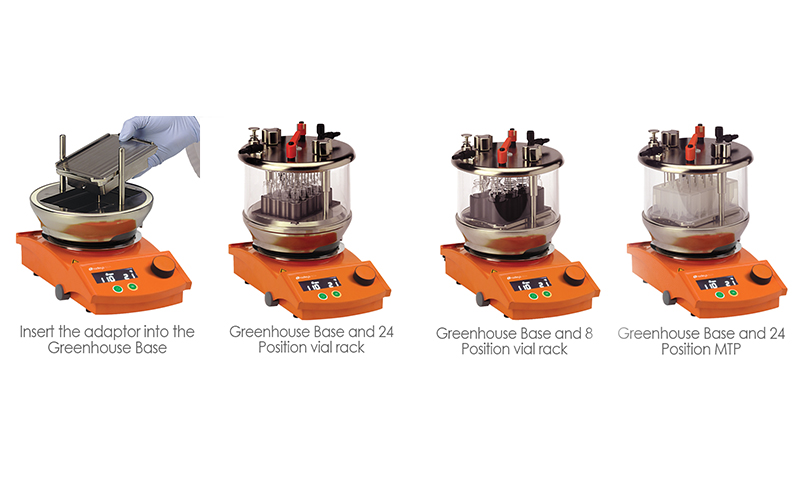

Insert the blowdown adaptor into the Greenhouse Base to accept vial racks or titler plates.

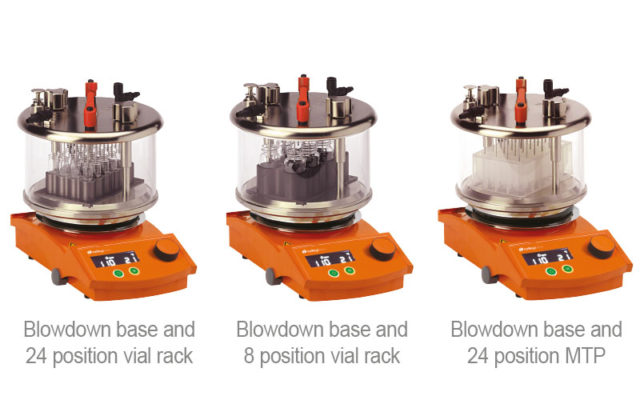

Blowdown bases

GreenHouse Blowdown Systems

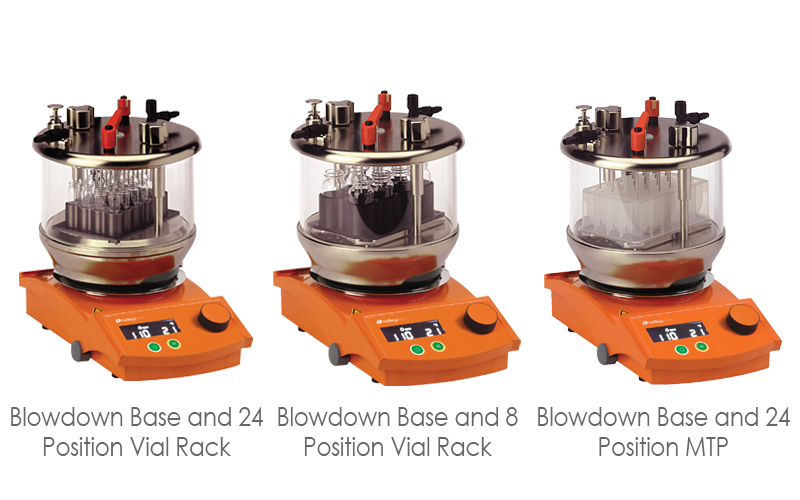

Or you can use the dedicated, low profile, Blowdown Base.

Key features

GreenHouse Blowdown

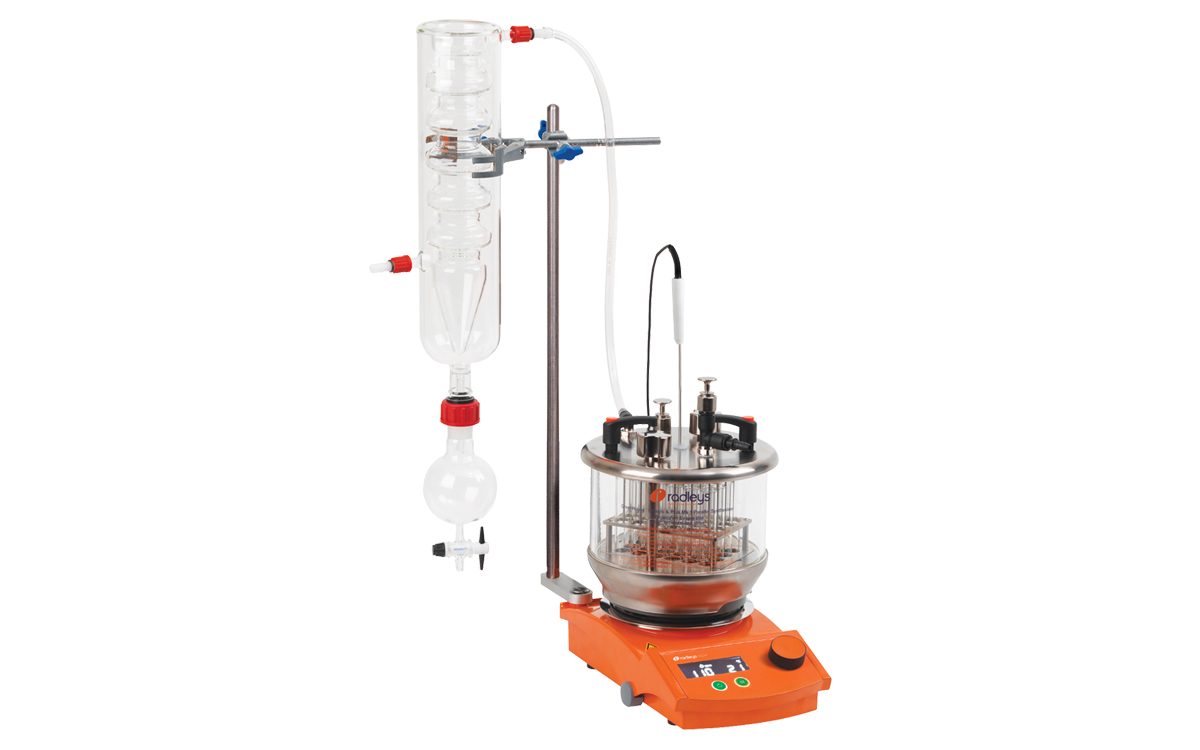

  1. Enclosed design contains evaporating solvent, allowing subsequent trapping and collection of solvent via a high performance glass condenser.

  2. Precise heat control and the absence of a vacuum protects your sample and avoids bumping.

  3. Safety relief valve on inlet prevents over-pressure during operation.

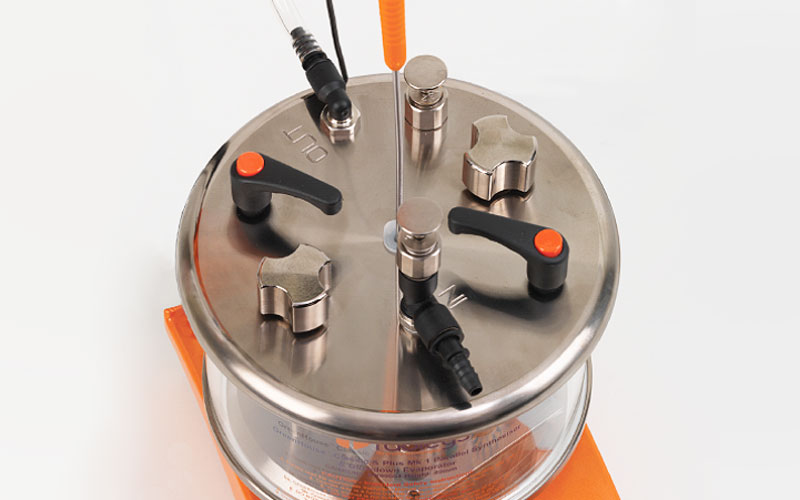

  4. Removable head features quick-release handles for easy exchange of Blowdown pin plates.

  5. Select the appropriate Blowdown pin plate. Interchangeable plates with either 8 or 24 hollow pins deliver an equal flow of gas to each tube, vial or well.
    Blowdown Pin Plate

  6. Digitally controlled heating from the hotplate gently adds energy to the sample to speed the evaporation process.

Typical evaporation times

Solvent Samples Volume (ml) Vessel Evap. Time (min)
Methanol 24 2 3.5 ml Vial 20
Methanol 8 5 20 ml Vial 22
Acetonitrile 24 2 3.5 ml Vial 20
Acetonitrile 24 2 7 ml Vial 35
Water 8 5 20 ml Vial 157
DMF 24 2 3.5ml Vial 138
DMF 24 2 7 ml Vial 145
40 ºC Base Temperature. Flowrate 10 L/min (8 well), 20 L/min (24 well)

Range

GreenHouse Blowdown Systems

Upgrade your GreenHouse Plus to a Blowdown System

System 16 - GreenHouse Blowdown Basic Upgrade

RR99657 System 16 – GreenHouse Blowdown Basic Upgrade

Comprising of:
RR99670 – GreenHouse Blowdown Head
RR99672 – Long Blowdown Pin Plate 6 x 4 (for GreenHouse Tubes)
RR99677 – GreenHouse Blowdown Base Adapter
RR99684 – Blowdown Condenser
RR99688 – Blowdown 150ml Reservoir

System 17 - GreenHouse Blowdown Complete Upgrade

RR99658 System 17 – GreenHouse Blowdown Complete Upgrade

Comprising of:
RR99670 – GreenHouse Blowdown Head
RR99672 – Long Blowdown Pin Plate 6 x 4 (for GreenHouse Tubes)
RR99673 – Blowdown Pin Plate 6 x 4
RR99674 – Blowdown Pin Plate 4 x 2
RR99677 – GreenHouse Blowdown Base Adapter
RR99680 – Flowmeter 2 to 27 litres/min with Stand
RR99681 – Gas Connection Tubing – 5m length
RR99684 – Blowdown Condenser
RR99688 – Blowdown 150ml Reservoir
RR99691 – AT01 Vial Rack 4 x 2 (For 27.8mm OD Vials)
RR99692 – AT02 Vial Rack 6 x 4 (For 13mm OD Vials)
RR99693 – AT03 Vial Rack 6 x 4 (For 13.8mm OD Vials)
RR99695 – AT05 Vial Rack 4 x 2 (For 24.3mm OD Vials)
RR99696 – AT06 Vial Rack 6 x 4 (For 15mm OD Vials)

Dedicated stand-alone Blowdown Systems

System 18 - GreenHouse Blowdown Basic Stand-alone

RR99659 System 18 – GreenHouse Blowdown Basic Stand-alone

Comprising of:
RR99670 – GreenHouse Blowdown Head
RR99672 – Long Blowdown Pin Plate 6 x 4 (for GreenHouse Tubes)
RR99673 – Blowdown Pin Plate 6 x 4
RR99692 – AT02 Vial Rack 6 x 4 (For 13mm OD Vials)
RR99679 – Blowdown Stand Alone Base
RR99604 – GreenHouse Glass Cylinder
RR99684 – Blowdown Condenser
RR99688 – Blowdown 150ml Reservoir

System 19 - GreenHouse Blowdown Basic Stand-alone + Stirrer

RR99660 System 19 – GreenHouse Blowdown Basic Stand-alone + Stirrer

Comprising of:
RR99670 – GreenHouse Blowdown Head
RR99672 – Long Blowdown Pin Plate 6 x 4 (for GreenHouse Tubes)
RR99673 – Blowdown Pin Plate 6 x 4
RR99692 – AT02 Vial Rack 6 x 4 (For 13mm OD Vials)
RR99679 – Blowdown Stand Alone Base
RR99604 – GreenHouse Glass Cylinder
RR99684 – Blowdown Condenser
RR99688 – Blowdown 150ml Reservoir
RR91206 – Carousel Tech Stirring Hotplate + Pt1000 230v UK Plug

System 20 - GreenHouse Blowdown Complete Stand-alone

RR99661 System 20 – GreenHouse Blowdown Complete Stand-alone

Comprising of:
RR99670 – GreenHouse Blowdown Head
RR99672 – Long Blowdown Pin Plate 6 x 4 (for GreenHouse Tubes)
RR99673 – Blowdown Pin Plate 6 x 4
RR99674 – Blowdown Pin Plate 4 x 2
RR99677 – GreenHouse Blowdown Base Adapter
RR99679 – Blowdown Stand Alone Base
RR99680 – Flowmeter 2 to 27 litres/min with Stand
RR99681 – Gas Connection Tubing – 5m length
RR99604 – GreenHouse Glass Cylinder
RR99684 – Blowdown Condenser
RR99688 – Blowdown 150ml Reservoir
RR99691 – AT01 Vial Rack 4 x 2 (For 27.8mm OD Vials)
RR99692 – AT02 Vial Rack 6 x 4 (For 13mm OD Vials)
RR99693 – AT03 Vial Rack 6 x 4 (For 13.8mm OD Vials)
RR99695 – AT05 Vial Rack 4 x 2 (For 24.3mm OD Vials)
RR99696 – AT06 Vial Rack 6 x 4 (For 15mm OD Vials)

System 21 - GreenHouse Blowdown Complete Stand-alone + Stirrer

RR99662 System 21 – GreenHouse Blowdown Complete Stand-alone + Stirrer

Comprising of:
RR99670 – GreenHouse Blowdown Head
RR99672 – Long Blowdown Pin Plate 6 x 4 (for GreenHouse Tubes)
RR99673 – Blowdown Pin Plate 6 x 4
RR99674 – Blowdown Pin Plate 4 x 2
RR99677 – GreenHouse Blowdown Base Adapter
RR99679 – Blowdown Stand Alone Base
RR99680 – Flowmeter 2 to 27 litres/min with Stand
RR99681 – Gas Connection Tubing – 5m length
RR99604 – GreenHouse Glass Cylinder
RR99684 – Blowdown Condenser
RR99688 – Blowdown 150ml Reservoir
RR99691 – AT01 Vial Rack 4 x 2 (For 27.8mm OD Vials)
RR99692 – AT02 Vial Rack 6 x 4 (For 13mm OD Vials)
RR99693 – AT03 Vial Rack 6 x 4 (For 13.8mm OD Vials)
RR99695 – AT05 Vial Rack 4 x 2 (For 24.3mm OD Vials)
RR99696 – AT06 Vial Rack 6 x 4 (For 15mm OD Vials)
RR91206 – Carousel Tech Stirring Hotplate + Pt1000 230v UK Plug

Accessories, Spares and Replacement Parts

Blowdown Components

RR99670     GreenHouse Blowdown Head
RR99672     Long Blowdown Pin Plate 6 x 4 (for GreenHouse Tubes)
RR99673     Blowdown Pin Plate 6 x 4
RR99674     Blowdown Pin Plate 4 x 2
RR99677     GreenHouse Blowdown Base Adapter
RR99679     Blowdown Stand Alone Base

Flowmeter

RR99680     Flowmeter 2 to 27 litres/min with Stand
RR99681     Gas Connection Tubing – 5m length

Glassware

RR99684     Blowdown Glass Condenser
RR99688     Blowdown 150ml Reservoir

Vial & Tubes Racks

RR99691     AT01 Vial Rack 4 x 2 (For 27.8mm OD Vials)
RR99692     AT02 Vial Rack 6 x 4 (For 13mm OD Vials)
RR99693     AT03 Vial Rack 6 x 4 (For 13.8mm OD Vials)
RR99695     AT05 Vial Rack 4 x 2 (For 24.3mm OD Vials)
RR99696     AT06 Vial Rack 6 x 4 (For 15mm OD Vials)
RR99697     AT07 Vial Rack 4 x 2 (For 23.8mm OD Vials)
