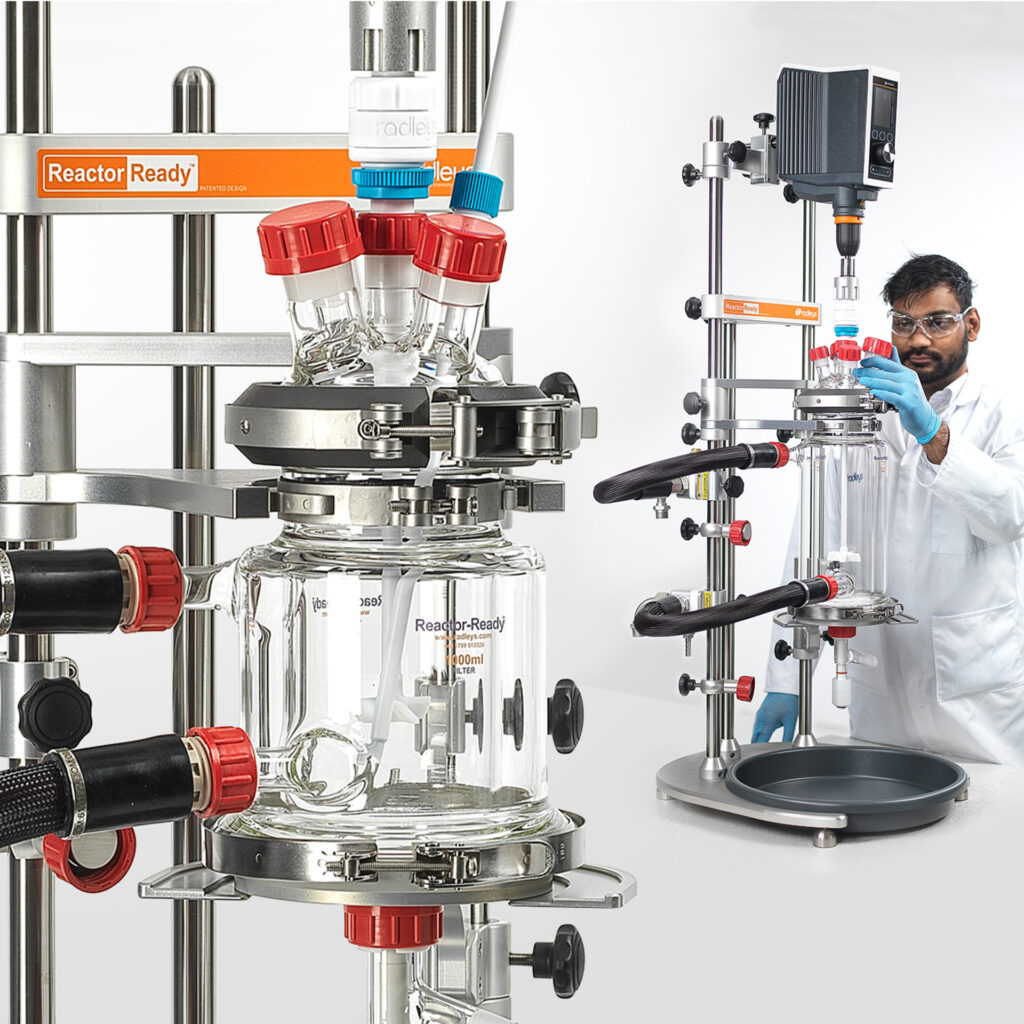

Reactor-Ready Filter Lab Reactor

Combine your jacketed lab reactor and filtration setup into a seamless workstation for synthesis and product isolation

Stirred, temperature-controlled, contained filtrations

Upgrade your existing Reactor-Ready framework to accept filter vessels or invest in a dedicated Filter Reactor

  • Filter vessels are fully jacketed down to base for accurate temperature control

  • Range of jacketed filter vessels in 1 and 2 litre volumes

  • Filter assembly allows for efficient solid-liquid separation with minimal hold-up

  • Unique filter support plate aligns the base with the vessel for tool-free assembly

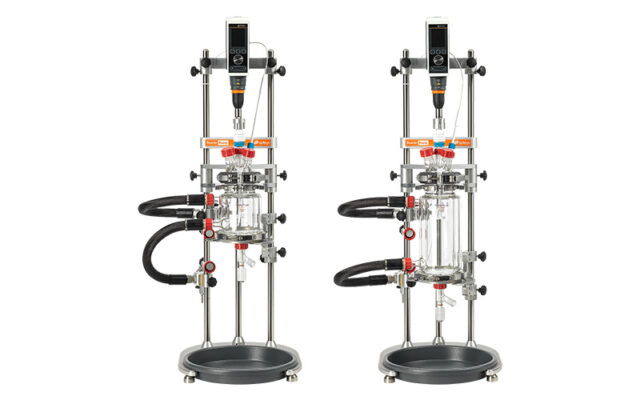

Synthesise and filter in the same vessel

Synthesise and filter in the same vessel

Our unique jacketed filter vessels allow for precise temperature control of the entire vessel contents during synthesis and filtration.

Webinar Introducing - Reator-Ready Filter Vessel

Webinar: Introducing the Radleys Reactor-Ready Filter Lab Reactor

Temperature controlled, stirred and contained filtrations – Radleys Reactor-Ready Filter Lab Reactor for crystallisations, reaction work-ups and product isolation

In this webinar we explore the Radleys range of Reactor-Ready filter vessels, demonstrate how to assemble and use the filter reactor as well as discuss potential applications.

Watch webinar on demand

Jacketed glass filter vessels

Fully jacketed glass filter vessels for precise temperature controlled filtrations

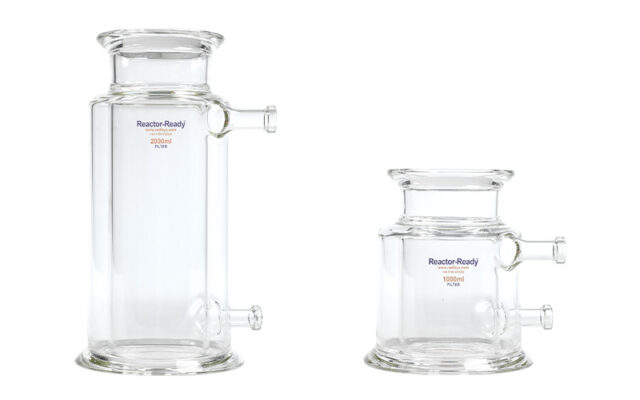

Reactor-Ready Filter Vessels

Features include

  • Precision engineered borosilicate glass vessels feature a jacket design that extends right down to the filter plate for precise temperature control of your entire vessel contents.
  • The upper DN100 polished flat lid flange combines with a FEP-encapsulated O-ring and PTFE collar to offer a leak-tight seal between the vessel and lid.
  • The straight sided vessel inner allows unhindered filtration and features a wide DN150 bottom flange giving easy access to the filter cake.
Filter plate assembly

Filter assembly allows efficient solid-liquid separations

  • Reusable filter membranes are available in a range of porosities and materials.
  • Filter plate with removable clamp allows for easy product collection and reassembly after filtrations.

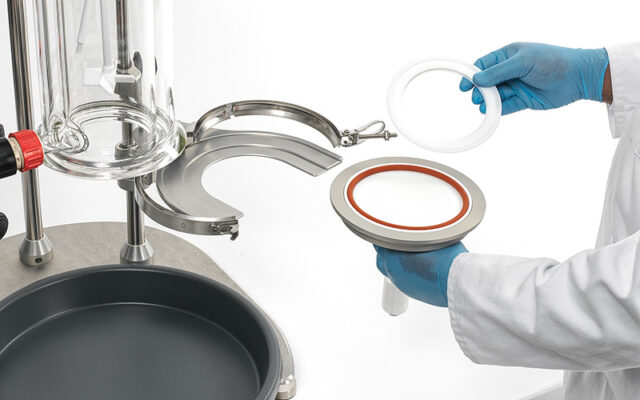

Filter assembly allows efficient solid-liquid separations

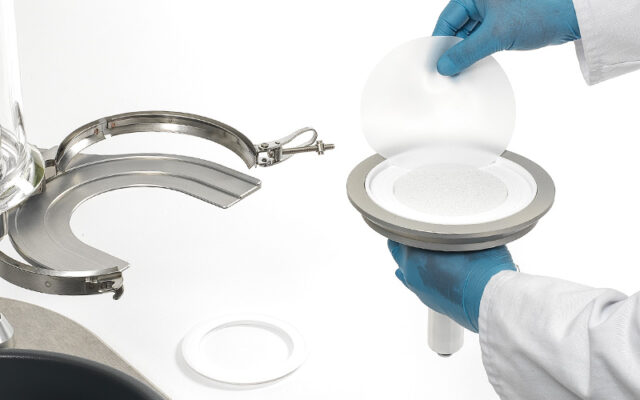

Filter plate assembly

The Reactor-Ready filter plate assembly enables efficient filtrations with easy solid recovery.

  • Innovative gasket and O-ring seal design reduces the risk of leaking.
  • The wide bottom flange and swivel filter support plate make cake retrieval and reassembly of the system quick and easy.

  • Glass Bottom Outlet Valve

    Easily removable for cleaning. 15 mm bore allows easy run off. Zero dead space design minimises material loss below filter media during reactions. Threaded outlet allows for connection to a collection vessel and vacuum pump for vacuum assisted filtrations.

  • Filter Membrane

    All kits include a Filter Membrane Evaluation Kit which includes one each of 6 styles of membrane pre-cut to size. Users can also cut their own filter membrane material to size.

  • Filter Plate and Gasket

    Available in PTFE or PEEK. PTFE (-30 to +120 °C) gives excellent chemical compatibility. PEEK (-30 to +180 °C) gives wider range of temperature and good chemical compatibility.

  • Sintered Glass Membrane Support

    Prevents filter media from being damaged during filtrations.

  • Aluminium Filter Plate Cup

    Holds filter plate rigidity during filtrations to ensure tight sealing of filter plate and vessel flange.

  • Gasket O-ring

    Kits include both Silicone (-30 to +180 °C) and Viton (-20 to +180 °C).

Filter assembly is quick and easy

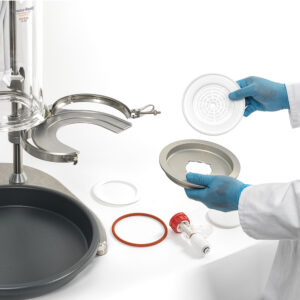

Filter Assembly 1

1. Aluminium filter plate cup supports your choice of PTFE or PEEK filter plate, giving wide solvent and temperature compatibility.

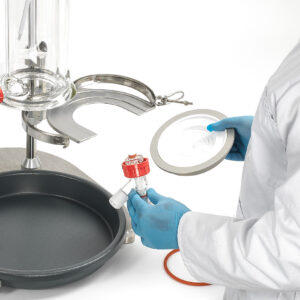

Filter Assembly 2

2. Removable 15 mm bore glass bottom outlet valve allows for easy cleaning.

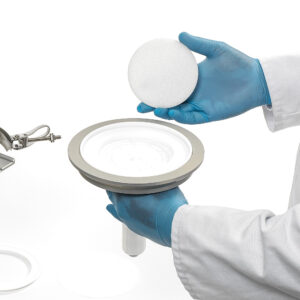

Filter Assembly 3

3. Sintered glass membrane support prevents filter media from being damaged during filtrations.

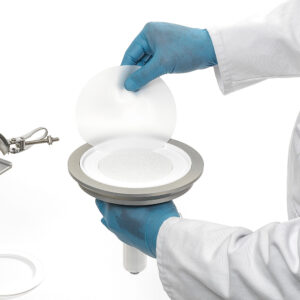

Filter Assembly 4

4. Pre-cut filter membranes are available in a selection of materials and porosities.

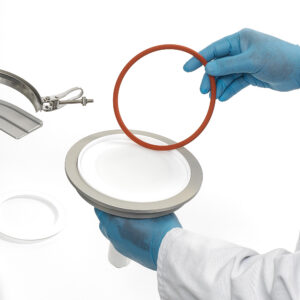

Filter Assembly 5

5. Filter kits include a Silicone (-30 °C to +180 °C) and Viton (-20 °C to +180 °C) O-ring.

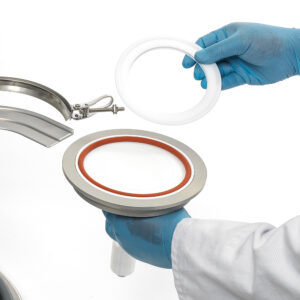

Filter Assembly 6

6. Gasket (available in PTFE or PEEK) combines with the O-ring to ensure efficient sealing.

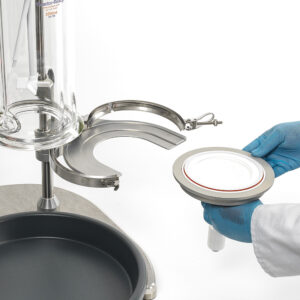

Filter Assembly 7

7. The swivel aluminium filter plate support allows for simple alignment of filter with the vessel and supports the filter plate and filter cake even when the clamp is unlocked.

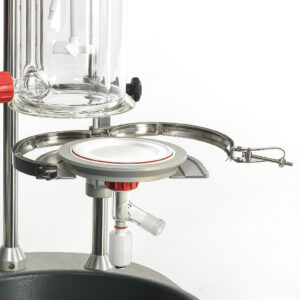

Filter Assembly 8

8. Filter clamp design allows the filter assembly to be clamped to the vessel lower flange with ease.

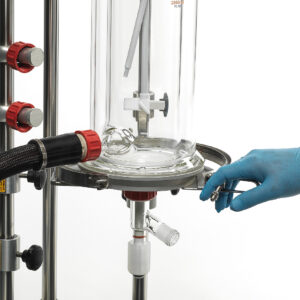

Filter Assembly 9

9. Vessel and filter assembly exchange is tool free and can be undertaken in minutes.

1 litre Filter Vessel 2 litre Filter Vessel
Cat No. (Reaction Vessel Only) RR171100 RR171200
Cat No. (Reaction Vessel Kit) RR170100 RR170200
Nominal Capacity 1 litre 2 litre
Total Working Volume 1.1 litres 2.2 litres
Internal Diameter 100 mm 100 mm
External Jacket Diameter 155 mm 155 mm
Jacketed Height 145 mm 285 mm
Total Vessel Height 205 mm 345 mm
Thermofluid Jacket Volume 0.94 litres 1.9 litres
Heat Transfer Area 0.05 m2 0.1 m2
Lid Flange (upper) DN100 DN100
Base Flange (lower) DN150 DN150
Sidearm 20 mm ID 20 mm ID

How to order Reactor-Ready Filter Lab Reactor

Reactor-Ready Filter Core

RR171000 Reactor-Ready Filter Core
Includes:
• Stand with base, drip tray, extended support rods, bosses and all clamps
• Vessel to framework insulated hoses with quick-release connections
• Upper and lower drain-down manifolds
• PTFE stirrer guide and drop-in coupling
• RR136000 – 5 Neck Glass Lid
• RR121090 – FEP Encapsulated Silicone Vessel O-Ring
• RR121095 – PTFE Support Collar for FEP O-Ring
• RR121048 – Vessel Support Collar
• RR171002 – Filter Plate Support
Important: The Filter Plate Clamp is not included and must be ordered separately.

Filter Plate Clamp

RR171004 Filter Plate Clamp – DN150

Important: Hoses to connect the Reactor-Ready framework to your thermoregulator are NOT included. You will require hoses with an M24x1.5 female connection or appropriate adapters. See opposite for hoses, adapters and suitable thermoregulators.

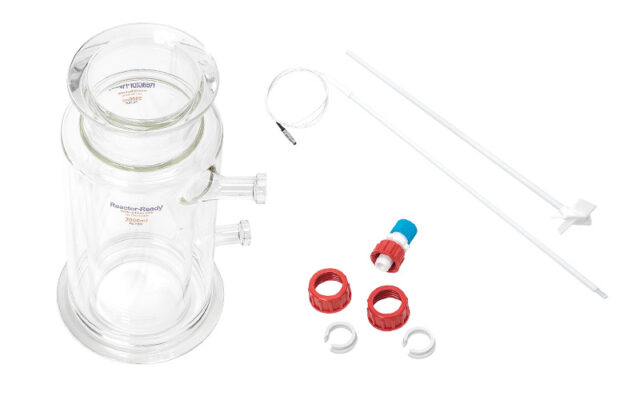

Filter Vessel Kits

Important: The Filter Vessel Kits are not included with the Reactor-Ready Filter Core and must be ordered separately.

RR170100 1000ml Single Jacketed Filter Vessel Kit – DN150
Includes:
• RR171100 – 1000ml Single Jacketed Filter Vessel – DN150
• RR171020 – Turbine PTFE Stirrer Shaft – 1000ml Filter Vessels
• RR141000 – Temp Probe 9mm + LEMO Plug – 1000ml & 2000ml Vessels
• RR140015 – PTFE Temperature Probe Adapter – 9mm

RR170200 2000ml Single Jacketed Filter Vessel Kit – DN1500
Includes:
• RR171200 – 2000ml Single Jacketed Filter Vessel – DN150
• RR171022 – Turbine PTFE Stirrer Shaft – 2000ml Filter Vessels
• RR141000 – Temp Probe 9mm + LEMO Plug – 1000ml & 2000ml Vessels
• RR140015 – PTFE Temperature Probe Adapter – 9mm

Filter Vessels Only

RR171100 1000ml Single Jacketed Filter Vessel – DN150
RR171200 2000ml Single Jacketed Filter Vessel – DN150

PTFE Impellers (for Filter Vessels)

RR171020 Turbine PTFE Stirrer Shaft – 1000ml Filter Vessels
RR171022 Turbine PTFE Stirrer Shaft – 2000ml Filter Vessels

PTFE Pt100 Temperature Probes and Adapters

RR141000 PTFE Temp Probe 9mm + LEMO Plug – 1000ml & 2000ml Vessels
RR140015 PTFE Temperature Probe Adapter – 9mm

Hei-Torque Overhead Stirrers

501-60410-00 Hei-Torque Core
501-62010-00 Hei-Torque 200 Expert
501-62020-00 Hei-Torque 200 Ultimate (USB/RS232)
501-64010-00 Hei Torque 400 Expert
501-64020-00 Hei-Torque 400 Ultimate (USB/RS232)

Upgrade your existing Reactor-Ready

Reactor-Ready Filter Upgrade Kit

RR171010 Reactor-Ready Filter Upgrade Kit
Includes:
• RR170015 – 1180mm Extended Support Rod Kit
• RR171002 – Filter Plate Support
Important: Filter Plate Clamp is not included and must be ordered separately.

Filter Plate Clamp

RR171004 Filter Plate Clamp – DN150

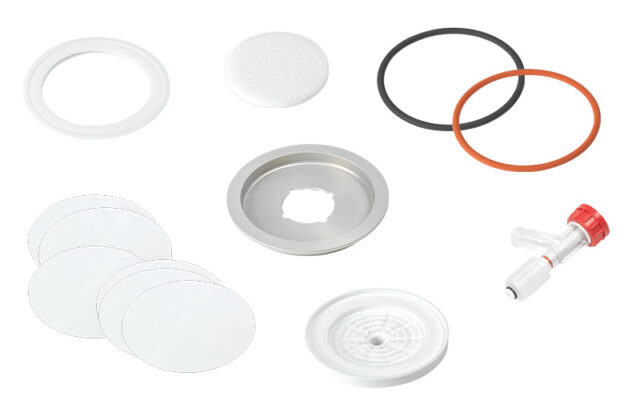

Filter Plate Kits

Important: The Filter Plate Kits are not included with the Reactor-Ready Filter Core and must be ordered separately.

RR170020 Filter Plate Kit PTFE – DN150
Includes:
• RR171028 – Filter Plate – PTFE (-30 to +120 C) DN150
• RR171036 – Filter Plate Cup – Aluminium DN150
• RR171040 – Filter Plate Gasket – PTFE (-30 to +120 C) DN150
• RR171048 – Filter Plate O-ring – Silicone (-30 to +180 C) DN150
• RR171050 – Filter Plate O-ring – Viton (-20 to +180 C) DN150
• RR171056 – Sintered Glass 100μm Membrane Support – DN150
• RR171060 – Glass BOV Body for Filter Vessel 15mm Piston
• RR171062 – Piston 15mm for Filter Vessel BOV
• RR170030 – Filter Membrane Evaluation Kit for DN150

RR170022 Filter Plate Kit PEEK – DN150
Includes:
• RR171030 – Filter Plate – PEEK (-30 to +180C) DN150
• RR171036 – Filter Plate Cup – Aluminium DN150
• RR171042 – Filter Plate Gasket – PEEK (-30 to +180C) DN150
• RR171048 – Filter Plate O-ring – Silicone (-30 to +180C) DN150
• RR171050 – Filter Plate O-ring – Viton (-20 to +180C) DN150
• RR171056 – Sintered Glass 100μm Membrane Support – DN150
• RR171060 – Glass BOV Body for Filter Vessel 15mm Piston
• RR171062 – Piston 15mm for Filter Vessel BOV
• RR170030 – Filter Membrane Evaluation Kit for DN150

To order kit components individually please refer to below:

Filter Plate Kit Components

RR171028 Filter Plate – PTFE (-30 to +120 C) DN150
RR171030 Filter Plate – PEEK (-30 to +180 C) DN150
RR171036 Filter Plate Cup – Aluminium DN150
RR171040 Filter Plate Gasket – PTFE (-30 to +120 C) DN150
RR171042 Filter Plate Gasket – PEEK (-30 to +180 C) DN150
RR171048 Filter Plate O-ring – Silicone (-30 to +180 C) DN150
RR171050 Filter Plate O-ring – Viton (-20 to +180 C) DN150
RR171056 Sintered Glass 100μm Membrane Support – DN150
RR171060 Glass BOV Body for Filter Vessel 15mm Piston
RR171062 Piston 15mm for Filter Vessel BOV

Filter Membranes

RR170030 Filter Membrane Evaluation Kit for DN150, Pk 6 (includes one each of filter membranes below)
RR171064 Polyester Filter Membrane 1μm for DN150, Pk 3
RR171066 Polyester Filter Membrane 5μm for DN150, Pk 3
RR171068 Polyester Filter Membrane 10μm for DN150, Pk 3
RR171070 Polyester Filter Membrane 20μm for DN150, Pk 3
RR171072 Polyester Filter Membrane 40μm for DN150, Pk 3
RR171074 PEEK Filter Membrane 35μm for DN150, Pk 3

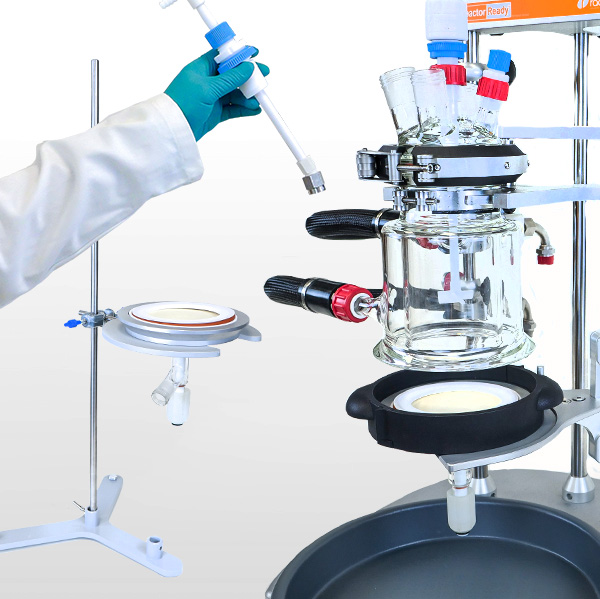

Reactor-Ready Filter Core Accessories

RR170015 Reactor-Ready – 1180mm Extended Support Rod Kit
RR171002 Filter Plate Support

Important: The Vessel Support Collar IS INCLUDED with your Reactor-Ready Filter Core, however if you require a spare it can be ordered separately.

Reaction Vessel Support Collar

RR121048 Vessel Support Collar

Filtrate Collection Kits

RR170042 – 2000ml Filtrate Collection Kit
Includes:
• RR171602 – Filtrate Collection Vessel 2000ml
• RR171606 – Bung 57mm + Hole 12mm Ø Tubing – Nat Rubber
• RR139354 – PTFE Tubing 10mm ID x 12mm OD – 1m length
• RR171610 – Elbow Fitting for 12mm OD Tubing – Stainless Steel
• RR139085 – Adapter Rodaviss B19 to GL25
• RR139350 – GL25 HT Compression Fitting for 12mm OD Tubing
• RR171608 – Rubber Tubing 6.5mm ID x 16.5mm OD – 2m long

RR170044 – 5000ml Filtrate Collection Kit
Includes:
• RR171604 – Filtrate Collection Vessel 5000ml
• RR171607 – Bung 67mm + Hole 12mm Ø Tubing – Nat Rubber
• RR139354 – PTFE Tubing 10mm ID x 12mm OD – 1m length
• RR171610 – Elbow Fitting for 12mm OD Tubing – Stainless Steel
• RR139085 – Adapter Rodaviss B19 to GL25
• RR139350 – GL25 HT Compression Fitting for 12mm OD Tubing
• RR171608 – Rubber Tubing 6.5mm ID x 16.5mm OD – 2m long

To order components individually please refer to below:

Filtrate Kit Components

RR171602 Filtrate Collection Vessel 2000ml
RR171604 Filtrate Collection Vessel 5000ml
RR171606 Bung 57mm + Hole 12mm Ø Tubing – Nat Rubber
RR171607 Bung 67mm + Hole 12mm Ø Tubing – Nat Rubber
RR139354 PTFE Tubing 10mm ID x 12mm OD – 1m length
RR171610 Elbow Fitting for 12mm OD Tubing – Stainless Steel
RR139085 Adapter Rodaviss B19 to GL25
RR139350 GL25 HT Compression Fitting for 12mm OD Tubing
RR171608 Rubber Tubing 6.5mm ID x 16.5mm OD – 2m long

Cold Trap Kits

RR170046 Dry Ice 500ml Cold Trap Kit
Includes:
• RR722414 – Cold Trap High Vacuum 500ml
• RR31210 – Retort Stand
• RR71115 – Boss Head
• RR139364 – Rubber Belt Clamp

RR170048 Small Cold Trap Kit
Includes:
• RR724011 – Two-piece Cold Trap B34
• RR31210 – Retort Stand
• RR71115 – Boss Head
• RR139069 – 3-Prong Clamp

To order components individually please refer to below:

Cold Trap Kit Components

RR722414 Cold Trap High Vacuum 500ml, GL14 Sidearms + Fittings
RR724011 Two-piece Cold Trap B34 with GL14 Sidearms + Fittings
RR31210 Retort Stand, 2 Position Base + 12x750mm SS Rod
RR71115 Boss Head to 16mm
RR139364 Rubber Belt Clamp – 10mm rod, 60-170mm
RR139069 3-Prong Clamp

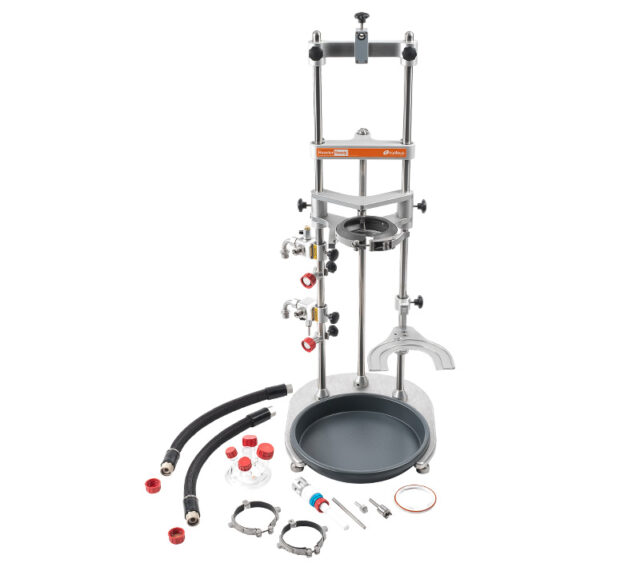

Reactor-Ready Filter Core system includes

Reactor-Ready Filter Core system includes

  • Stand with base, extended support rods, bosses and all clamps
  • Filter plate support
  • Glass reaction vessel lid
  • Vessel FEP O-ring seal and PTFE collar
  • HDPE drip tray
  • Vessel-to-manifold insulated hoses with quick-release connections
  • Lower inlet manifold + drain
  • Upper outlet manifold + vent
  • PTFE stirrer guide
  • Stainless steel drop-in stirrer guide coupling
  • Two stainless steel vessel support collars
  • Locking rod for support rod bosses
Filter Plate Kit includes

Filter Plate Kit includes

The Filter Plate Kit includes everything you need to get started with your filtrations, simply select what material you require for the filter base. Each Filter Plate Kit includes:

  • Filter Plate in PTFE or PEEK
  • Filter Plate Gasket in PTFE or PEEK
  • Aluminium Filter Plate Cup
  • Filter Plate O-ring (Viton and Silicone)
  • Sintered Glass Membrane Support Disc
  • Glass BOV and Piston
  • Filter Membrane Evaluation Kit (1 each of 6 membranes)
Filter vessel kits

Filter vessel kits

Filter vessel kits make ordering vessels and accessories simple and more cost effective.

These vessel kits include the vessel and accessories you need to get started. The Pt100 probe and turbine stirrer included in each kit are matched to the vessel size. Each vessel kit includes:

  • Filter vessel
  • PTFE turbine stirrer
  • Sidearm couplings
  • Pt100 PTFE temperature probe with LEMO Connector
  • PTFE temperature probe adapter

FAQs

Do you offer a demo of the Reactor-Ready Filter Lab Reactor?

Yes, we can offer a 1-2-1 Reactor-Ready Lab Reactor demo with an expert online or in person. Book your demo today by choosing a date and time that suits you and your colleagues.

How do I order Reactor-Ready Filter Reactor?

1. Select the Reactor-Ready Filter Core: RR171000.
2. Select the Filter Plate Clamp.
3. Choose the Filter Vessel Kit you require by selecting the vessel volume.
4. Choose the Filter Plate Kit you require by selecting the filter base material you want, PEEK or PTFE.
5. Select the overhead stirrer you require.
6. If you need a thermoregulator, hoses, hose adapters, thermofluid or accessory glassware, then select from the accessory list.

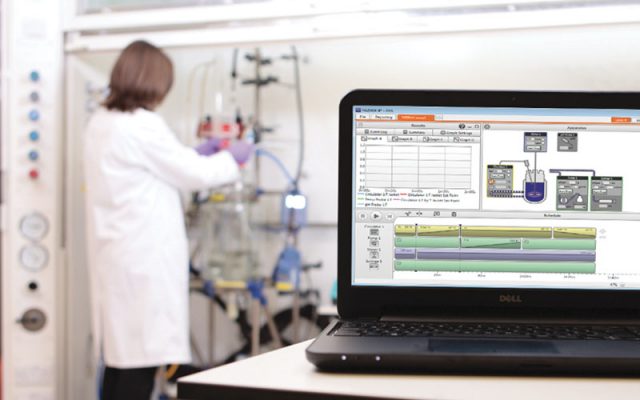

7. If you need automation, add the AVA Software and Data Hub.

How do I upgrade an existing Reactor-Ready?

1. Select the Filter Upgrade Kit: RR171010.
2. Select the Filter Plate Clamp.
3. Choose the Filter Vessel Kit you require by selecting the vessel volume.
4. Choose the Filter Plate Kit you require by selecting the filter base material you want, PEEK or PTFE.
5. You should already have an overhead stirrer and circulator etc.
