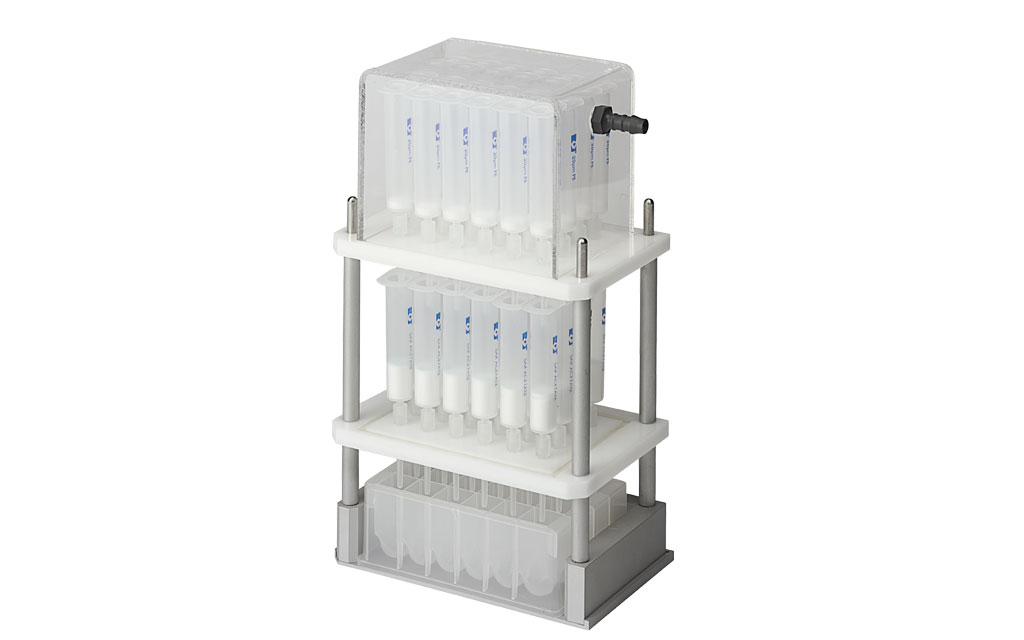

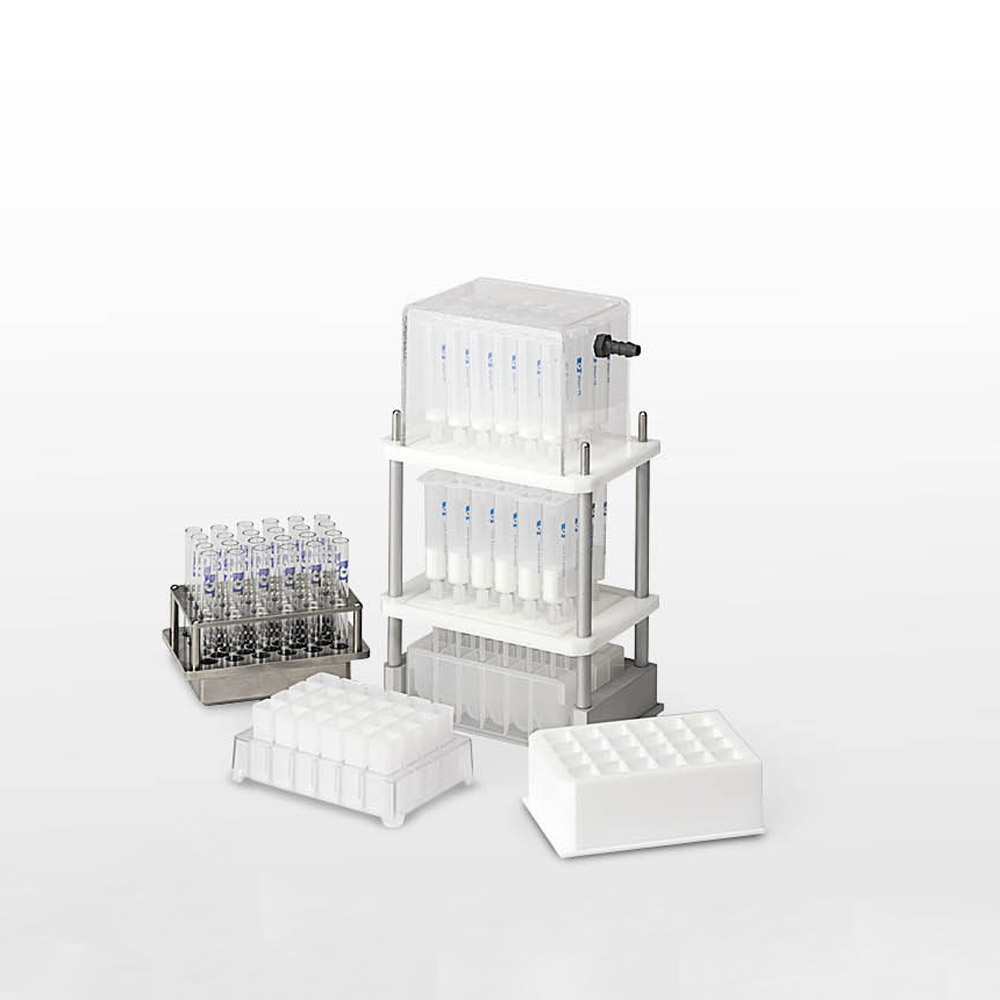

GreenHouse Work-Up Station

Innovative stacked column design allows two levels of sequential purification e.g. phase separation and SPE or filtration and SPE, one above the other.

Accepts all standard 24 well microtiter plates, as well as GreenHouse Reaction Blocks for fraction collection.
Request a demo

GreenHouse Work-Up Station

  • Removable upper support plate allows unit to be used for single or sequential purification
  • Clear gas cover allows pressure to be applied to increase flow rate of difficult samples
  • Accommodates all standard 3 ml and 6 ml tabbed or tabless SPE or filtration columns
  • Full range of Filtration, Phase Separation and SPE Columns including Silica, SCX, Aminopropyl and SAX Acetate

Key features

GreenHouse Work-Up Station
  1. Clear gas cover allows slight positive pressure to be applied to increase flow rate of difficult samples

  2. Easily removable upper support plate allows unit to be used for single or sequential parallel purification. Design accommodates

  3. Radleys offers a wide range of SPE columns, including silica, SAX acetate, aminopropyl, SCX, plus phase separation and filtration columns

  4. Design accommodates all standard 3 ml and 6 ml tabbed or tabless SPE or filtration columns

  5. Accepts all standard 24 well microtiter plates, as well as GreenHouse Plus reaction blocks for fraction collection.

  6. Silicone sponge gasket on upper and lower support plates seals with clear acrylic gas cover.

  7. Unique recessed design of support plates allows positioning of standard format columns within microtiter plate footprint without column tabs obstructing each other.

  8. Robust anodised aluminium construction.

  9. Stacked column design allows sequential purification; e.g. phase separation and SPE, or filtration and SPE.

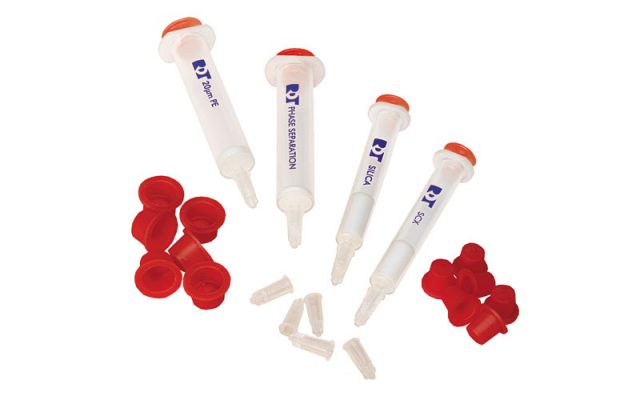

Greenhouse Work-Up Columns

Greenhouse Work-Up Columns

A complete range of columns dedicated to the GreenHouse Work-Up and preparative chemistry
  • Filtration, Phase Separation and SPE Columns including Silica, SCX, Aminopropyl and SAX Acetate

Range

GreenHouse Work-up Station

RR99800   GreenHouse Work-up Station
RR99801   GreenHouse Work-up Base Unit

Greenhouse Work-Up Columns

A complete range of columns include Filtration, Phase Separation and SPE Columns including Silica, SCX, Aminopropyl and SAX Acetate

SPE Columns

RR99810   Silica 500mg/3ml
RR99811   Silica 1.0g/6ml
RR99812   Aminopropyl 500mg/3ml
RR99813   Aminopropyl 1.0g/6ml
RR99814   SCX 500mg/3ml
RR99815   SCX 1.0g/6ml
RR99816   SAX Acetate 500mg/3ml
RR99817   SAX Acetate 1.0g/6ml

Filtration and Phase Separation Columns

RR99818   20um PE Filtration 3ml
RR99819   20um PE Filtration 6ml
RR99820   Phase Separation 3ml
RR99821   Phase Separation 6ml

Accessories and Replacement Parts

RR99802   Replacement Acrylic Gas Cover
RR99806   Stepped Connector for 3ml Columns
RR99807   Stepped Connector for 6ml Columns
RR99808   Clear Gas Tubing, 1 metre
RR99809   Spare Polypropylene Needle Tips
RR99822   Column Caps 3ml
RR99823   Column Caps 6ml
RR99824   Luer Tip Caps
