The Tornado accepts a wide selection of Carousel 6 Plus flasks and accessory glassware

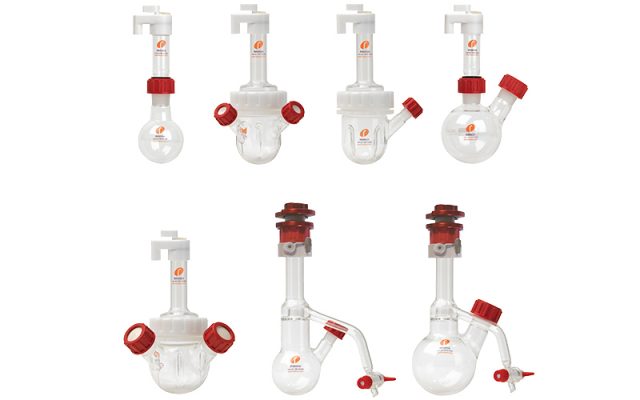

Tornado Glassware Options

Flask sizes and styles

  • Accepts 50 ml, 100 ml and 250 ml round bottom flasks
  • Choice of vessels with wide necks, sidearms and baffles
  • Wide neck flasks allow easier removal of viscous samples
  • Wide neck flasks allow use of larger stirrer blades
  • Baffled flasks improve stirring by disrupting the creation of a vortex

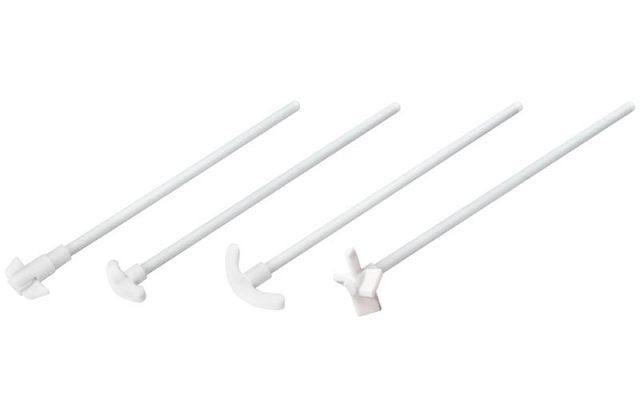

PTFE Stirrer Paddles

Tornado PTFE Stirring Paddles

A range of PTFE stirrer paddles have been designed specifically for the Tornado.

  • Centrifugal
  • Anchor
  • Propeller

The Centrifugal stirrer paddles will fit into any one of the standard narrow neck Carousel 6 Plus 50 ml, 100 ml, 170 ml or 250 ml flasks. The Anchor and Propeller stirrer paddles have been designed to fit in the wide neck 100 ml and 250 ml flasks.

Pinch-Grip Stirrer Guide Assembly

Pinch-Grip Stirrer Guide Assembly

The Tornado’s unique PEEK Pinch-Grip Stirrer Guide Assembly allows easy, tool-free insertion of the stirrer shafts and operation under an inert atmosphere.

Range

Standard Flasks and Reflux Tubes

RR99070   50ml Reaction Flask, Pack 6
RR99054   100ml Reaction Flask, Pack 6
RR99052   170ml Reaction Flask, Pack 6
RR99041   250ml Reaction Flask, Pack 6
RR99917   250ml Reaction Flask + Reflux Tube + Connecting Set, Pack 6
RR99918   B24/29 Reflux Tube + Connecting Set, Pack 6
RR99919   250ml Long Neck Reaction Flask, Pack 6

Standard Flasks with Sidearms

RR99071   50ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99074   100ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99077   250ml Reaction Flask with B24/29 Sidearm + Septa Port, Pack 6
RR99047   250ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99087   250ml Reaction Flask with 2x B14/23 Sidearms + Septa Port, Pack 6
RR99088   250ml Reaction Flask with 2x B24/29 Sidearms + Septa Port, Pack 6
RR99089   250ml Reaction Flask with 1x B14/23 + 1x B24/29 Sidearm + Septa Port, Pack 6



Wide Neck Flasks with Coupling

RR99924   Wide Neck Reflux Tube + Coupling, Pack 1
RR99925   Coupling for Wide Neck Flasks, Pack 1
RR99940   PTFE Wide Neck Support Collar, Pack 1
RR99941   Nitrile O-Ring for PTFE Wide Neck Support Collar, Pack 1
RR99926   50ml Wide Neck Flask, Pack 1
RR99928   100ml Wide Neck Flask, Pack 1
RR99933   250ml Wide Neck Flask, Pack 1

Wide Neck Flasks with Sidearms

RR99927   50ml Wide Neck Flask with B14/23 Sidearm + Septa Port, Pack 1
RR99929   100ml Wide Neck Flask with B14/23 Sidearm + Septa Port, Pack 1
RR99930   100ml Wide Neck Flask with 2x B14/23 Sidearms + Septa Port, Pack 1
RR99934   250ml Wide Neck Flask with B24/29 Sidearm + Septa Port, Pack 1
RR99935   250ml Wide Neck Flask with 2x B24/29 Sidearms + Septa Port, Pack 1

Wide Neck Flasks with Baffles and Sidearms

RR99931   100ml Baffled Wide Neck Flask with B14/23 Sidearm + Septa Port
RR99932   100ml Baffled Wide Neck Flask with 2x B14/23 Sidearms + Septa Port
RR99936   250ml Baffled Wide Neck Flask with B24/29 Sidearm + Septa Port
RR99937   250ml Baffled Wide Neck Flask with 2x B24/29 Sidearms + Septa Port

Azeotropic Vessels

RR99939 100ml Tornado Azeotropic Reaction Flask, Pack 3
RR99938 250ml Tornado Azeotropic Reaction Flask, Pack 3

Liquid and Solid Additions Funnel

RR99049   B14/23 Solid Additions Funnel, Pack 3
RR99079   B24/29 Solid Additions Funnel, Pack 3
RR99048   B14/23 Liquid Additions Dropping Funnel + Pressure Equalising Arm, Pack 3
RR99078   B24/29 Liquid Additions Dropping Funnel + Pressure Equalising Arm, Pack 3

Evaporation Adapters, Splash Heads and Evaporation Flasks

RR99045   Rotary Evaporator Adapters Rodaviss B29 Socket to B24 Cone, Pack 2
RR99046   Rotary Evaporator Adapters Ordinary B29 Socket to B24 Cone, Pack 2
RR99055   Rotary Evaporator Adapters USA 24/40 Socket to B24 Cone, Pack 2
RR99083   Splash Head Rodaviss B29 Socket to B24 Cone, Pack 1
RR99084   Splash Head Ordinary B29 Socket to B24 Cone, Pack 1
RR99085   Splash Head USA 24/40 Socket to B24 Cone, Pack 1
RR99053   250ml EZ-2/HT Evaporation Flask (Compatible with Genevac Evaporators), Pack 4

Flasks are NOT supplied with reflux tubes or PTFE caps, these must be purchased separately

Tornado PTFE Stirring Paddles

RR99240   Tornado PTFE Stirrer Shafts – Centrifugal, Pack 6
RR99241   Tornado PTFE Stirrer Shafts – Centrifugal, Pack 1

RR99244   Tornado PTFE Stirrer Shafts – Anchor for 100ml Flasks, Pack 6
RR99245   Tornado PTFE Stirrer Shafts – Anchor for 100ml Flasks, Pack 1
RR99248   Tornado PTFE Stirrer Shafts – Anchor for 250ml Flasks, Pack 6
RR99249   Tornado PTFE Stirrer Shafts – Anchor for 250ml Flasks, Pack 1

RR99251   Tornado PTFE Stirrer Shafts – Propeller, Pack 6
RR99252   Tornado PTFE Stirrer Shafts – Propeller, Pack 1

Aluminium Inserts

RR99142   Aluminium Insert for 5ml Reaction Flask, Pack 6
RR99141   Aluminium Insert for 10ml Reaction Flask, Pack 6
RR99140   Aluminium Insert for 25ml Reaction Flask, Pack 6
RR99060   Aluminium Insert for 50ml Reaction Flask, Pack 6
RR99058   Aluminium Insert for 100ml Reaction Flask, Pack 6
RR99057   Aluminium Insert for 170ml Reaction Flask, Pack 6

Replacement O-Rings & Quick Release Couplings

RR91060   Nitrile O-Rings 4mm Gas Outlet – Bottom, Pack 50
RR91061   Nitrile O-Rings 3mm Gas Outlet – Top, Pack 50
RR91062   Viton O-Rings 4mm Gas Outlet – Bottom, Pack 50
RR91063   Viton O-Rings 3mm Gas Outlet – Top, Pack 50
RR91065   Quick Release Male, Threaded, No Shut-off (6.4mm ID)
RR91066   Quick Release Female, Barbed 6.4mm, No Shut-off (6.4mm ID)
RR99062   Quick Release Male, Barbed 6.4mm + Shut-off (6.4mm ID), Pack 2
RR99063   Quick Release Male, R/A Barbed 6.4mm + Shut-off (6.4mm ID), Pack 2
RR99065   Quick Release Female, Threaded + Shut-off (6.4mm ID), Pack 2

Rodaviss Caps & Connecting Sets

RR99051   B14/23 Rodaviss Sealing Cap, Pack 10
RR99043   B24/29 Rodaviss Sealing Cap, Pack 10
RR99955   B14/23 Rodaviss Connecting Set, Pack 10
RR99044   B24/29 Rodaviss Connecting Set, Pack 10
RR99080   PTFE/Silicone Septa 20mm – B14/23, Pack 50
RR99081   PTFE/Silicone Septa 24.5mm – B19/26, Pack 50
RR99082   PTFE/Silicone Septa 29mm – B24/29, Pack 50
RR99068   B14/23 Rodaviss Connecting Cap, Pack 10
RR99090   B24/29 Rodaviss Connecting Cap, Pack 10

Other accessories

RR98906   Black Lab Marker, Pack 10
RR99061   Reaction Flask Support Ring, Pack 6
RR99067   Tubing for Inert Gas or Reflux Cooling, 2m
