Reactor-Ready Pilot Process Reaction Vessel Features
- Jacketed and vacuum jacketed vessels with dish shaped bottom.
- Feature a 1.25 to 1 ratio of internal height to diameter to mimic the geometry of plant scale reactors.
- Range of single vessels from 5 litres to 35 litres.
- Range of vacuum jacketed vessels from 5 litres to 10 litres.
- Custom styles and sizes available on request.
- Precision engineered borosilicate glass vessels with DN200 flange.

Reactor-Ready Pilot Process Reaction Vessel Features
- Double or vacuum jacketed vessels provide transparent insulation for faster cooling, lower temperatures and reduces frosting for improved contents visibility.
- DN200 ground and polished flat flange combines with the FEP encapsulated O-ring and a unique self-centering PTFE collar to offer a leak-tight seal between the vessel and lid.
- Convenient and cost effective vessel kits include stirrer, temperature probe and side-arm coupling.

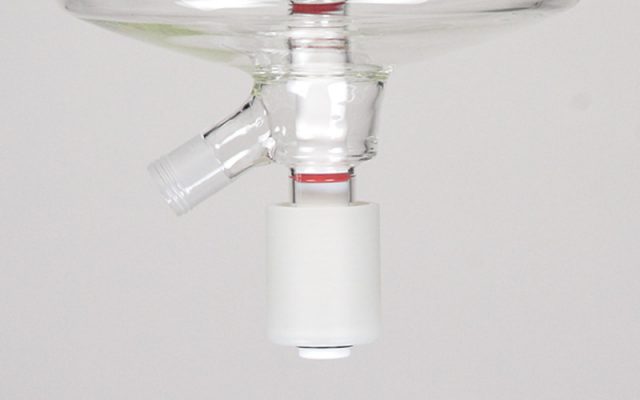

Vessels feature V5 Zero Dead Space Drain Stopcock
- Exclusive stopcock design prevents over-tightening that can cause glassbreakage
- Piston design allows quick and safe removal, eliminating the cleaning and assembly problems associated with other stopcocks
- Glass-filled PTFE pistons operate across the full temperature range -70 ºC to +230 ºC
- Pistons are interchangeable between vessels with a full range of replacement parts and FEP O-rings
- We recommend using Chemraz O-rings for temperatures above +150 ºC
- The large 25 mm bore pistons minimise sample hold-up and are ideal for slurries
Introducing our new 30 & 35 litre vessels
Scale up your chemistry from 5 to 35 litres, in a single framework, using the Reactor-Ready Pilot Lab Reactor.

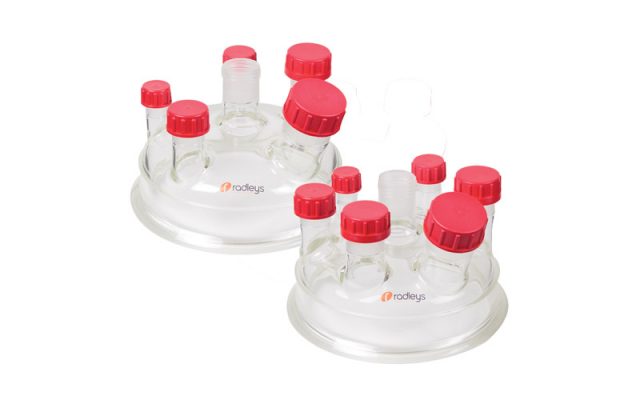

Reactor-Ready Pilot Process Vessel Lids
Choose from two precision ground standard configurations or request a custom design.
- DN200 Glass lids fit all vessel sizes:
- DN200 lid with either 6 or 7, Rodaviss conical ground glass joints
- Rodaviss joints are grease free and are interchangeable with ordinary 1-in-10 B and A length tapered conical joints
- Rodaviss A length joints are also available

PTFE Vessel Lids
Ideal for use with PAT and test probes
- Removable PTFE sockets and compression fittings allow for maximum flexibility, simply unscrew and change the fitting to suit your set-up.
- More suitable for PAT and test probes than equivalent glass lids.
- Allows for more ports in a smaller space (8 rather than 6 or 7).
- More robust and less likely to break than glass.
- Less dead space at top of vessel.

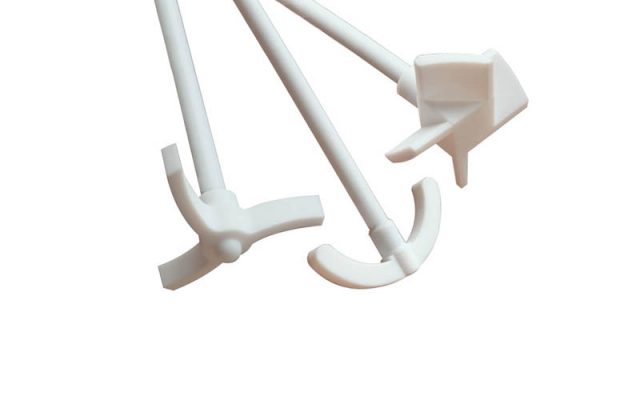

PTFE Stirrer Shafts
- Chemically inert PTFE rotors moulded onto a 16 mm ø PTFE encapsulated metal core
- Available in Anchor, Retreat Curve and Turbine or Propeller styles
- PTFE Turbine Stirring Shaft is included with all Pilot vessel kits

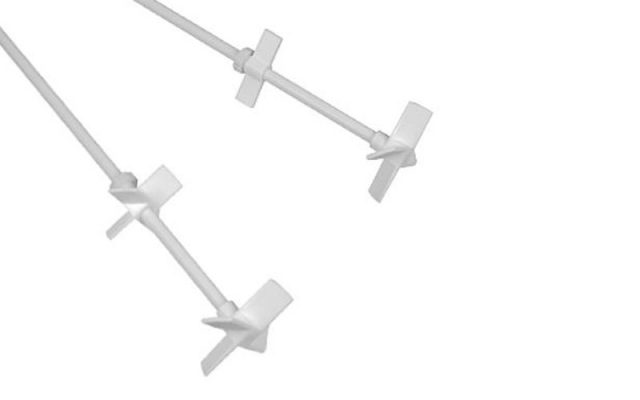

PTFE Adjustable Rotors
- Fit 16 mm shafts and can be position anywhere along shaft
- Chemically inert PTFE with glass filled PTFE locking nut
- RR258300 – 4 blade 45˚ Angle Rotor forces the product down and creates good
axial flow with low shear force - RR258302 – 2 Blade Vertical Rotor creates tangential flow with gentle stirring

Reactor-Ready Pilot PTFE Pt100 Temperature Probes and Adapters

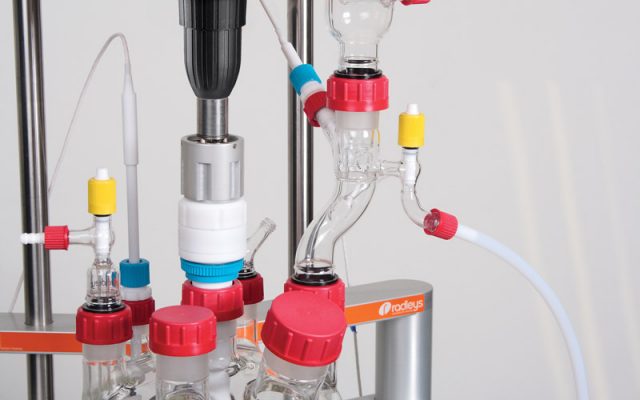

Reactor-Ready Pilot Reflux Divider Kits
Reflux divider kits allow condensed vapours to be either refluxed back into the reactor or diverted into a separate receiving vessel.
- Choice of receiving flasks 500 ml, 1, 2 and 5 litre. All receiver flasks feature three necks,decanting stopcock and are suitable for stacking. Receiver flasks must be ordered separately
- Reflux divider kits are available with optional vapour temperature sensor

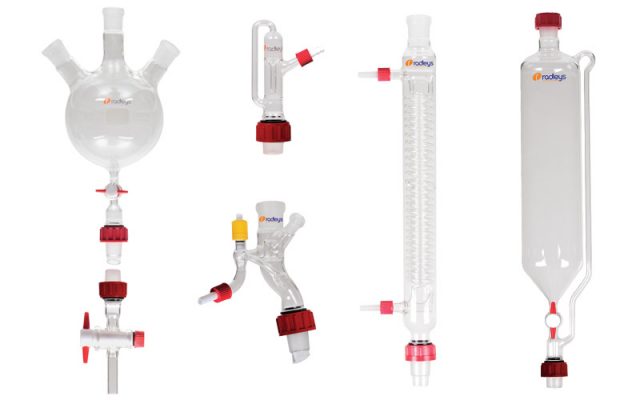

Reactor-Ready Pilot glassware
Process Reaction Vessel Specifications
Pilot Single Jacketed Reaction Vessels
5 litre | 10 litre | 15 litre | 20 litre | 30 litre | 35 litre | |
Cat No. (Vessel Only) | RR235050 | RR235100 | RR235150 | RR235200 | RR235300 | RR235350 |
Cat No. (Vessel Kit) | RR220005 | RR220015 | RR220025 | RR220035 | RR220045 | RR220050 |
Nominal Capacity | 5 Litres | 10 Litres | 15 Litres | 20 Litres | 30 Litres | 35 Litres |
Total Working Volume | 5.6 Litres | 12.9 Litres | 16.4 Litres | 22.7 Litres | 33.0 Litres | 38.5 Litres |
Internal Diameter | 180 mm | 240 mm | 260 mm | 290 mm | 340mm | 340mm |
External Diameter | 250 mm | 300 mm | 315 mm | 350 mm | 415mm | 415mm |
Jacketed Height | 230 mm | 300 mm | 325 mm | 363 mm | 378 mm | 433 mm |
External Height | 510 mm | 590 mm | 620 mm | 660 mm | 710mm | 760mm |
Thermofluid Jacket Volume | 4.6 Litres | 6.2 Litres | 5.7 Litres | 9.8 Litres | 12.4 Litres | 14 Litres |
Heat Transfer Area | 0.16m2 | 0.27m2 | 0.31m2 | 0.38 m2 | 0.45m2 | 0.52m2 |
Flange | DN200 | |||||
Sidearm | 20mm ID Reactor-Ready | |||||
Piston | V5 Zero Dead Space 25 mm Glass Filled PTFE | |||||
Piston Run-off | B24 Rodaviss Socket |
Pilot Vacuum Jacketed Reaction Vessels
5 litre | 10 litre | |
Cat No. (Vessel only) | RR235052 | RR235102 |
Cat No. (Vessel Kit) | RR220010 | RR220020 |
Nominal Capacity | 5 Litres | 10 Litres |
Total Working Volume | 5.6 Litres | 12.9 Litres |
Internal Diameter | 180 mm | 240 mm |
External Diameter | 300 mm | 350 mm |
Jacketed Height | 225 mm | 300 mm |
External Height | 530 mm | 610 mm |
Thermofluid Jacket Volume | 3.9 Litres | 5.4 Litres |
Heat Transfer Area | 0.16 m2 | 0.27 m2 |
Flange | DN200 | |
Sidearm | 20 mm ID Reactor-Ready | |
Piston | V5 Zero Dead Space 25 mm Glass Filled PTFE | |
Piston Run-off | B24 Rodaviss Socket |
Process Reaction Vessel Kits
Comprises: glass reaction vessel, PTFE Turbine stirrer, sidearm couplings, Pt100 PTFE temperature probe and PTFE probe adapter.
RR220005 5L Single Jacketed Pilot Process Vessel Kit.
RR220015 10L Single Jacketed Pilot Process Vessel Kit.
RR220025 15L Single Jacketed Pilot Process Vessel Kit.
RR220035 20L Single Jacketed Pilot Process Vessel Kit.
RR220045 30L Single Jacketed Pilot Vessel Kit (must also purchase RR210002 Lower Support Plate).
RR220050 35L Single Jacketed Pilot Vessel Kit (must also purchase RR210002 Lower Support Plate).
RR220010 5L Vacuum Jacketed Pilot Process Vessel Kit.
RR220020 10L Vacuum Jacketed Pilot Process Vessel Kit.
Jacketed and Vacuum Jacketed Reaction Vessels
RR235050 5L Single Jacketed Pilot Vessel.
RR235100 10L Single Jacketed Pilot Vessel.
RR235150 15L Single Jacketed Pilot Vessel.
RR235200 20L Single Jacketed Pilot Vessel.
RR235300 30L Single Jacketed Pilot Vessel (must also purchase RR210002 Lower Support Plate).
RR235350 35L Single Jacketed Pilot Vessel (must also purchase RR210002 Lower Support Plate).
RR235052 5L Vacuum Jacketed Pilot Vessel.
RR235102 10L Vacuum Jacketed Pilot Vessel.
Reactor-Ready Pilot Process Vessel Lids
RR236000 – 6 Neck DN200 Lid.
1 x B34 central vertical – stirrer.
1 x B19 side vertical – probe.
1 x B24 side vertical – gas purge.
1 x B29 side vertical – drop funnel, bubbler, liquid inlet adapter.
1 x B34 side vertical – condenser and reflux.
1 x B45 side angled – solid additions.
RR236002 – 7 Neck DN200 Lid.
1 x B34 central vertical – stirrer.
1 x B19 side vertical – probe.
1 x B24 side vertical – gas purge.
1 x B29 side vertical – drop funnel, bubbler, liquid inlet adapter.
2 x B34 side vertical – condenser and reflux.
1 x B45 side angled – solid additions.
PTFE Stirrer Shafts
RR258051 Anchor PTFE Stirrer Shaft – 5L Pilot Vessels.
RR258052 Retreat Curve PTFE Stirrer Shaft – 5L Pilot Vessels.
RR258053 Turbine PTFE Stirrer Shaft – 5L Pilot Vessels.
RR258101 Anchor PTFE Stirrer Shaft – 10L Pilot Vessels.
RR258102 Retreat Curve PTFE Stirrer Shaft – 10L Pilot Vessels.
RR258103 Turbine PTFE Stirrer Shaft – 10L Pilot Vessels.
RR258151 Anchor PTFE Stirrer Shaft – 15L Pilot Vessels.
RR258152 Retreat Curve PTFE Stirrer Shaft – 15L Pilot Vessels.
RR258153 Turbine PTFE Stirrer Shaft – 15L Pilot Vessels.
RR258201 Anchor PTFE Stirrer Shaft – 20L Pilot Vessels.
RR258202 Retreat Curve PTFE Stirrer Shaft – 20L Pilot Vessels.
RR258203 Turbine PTFE Stirrer Shaft – 20L Pilot Vessels.
RR258306 Anchor PTFE Stirrer Shaft – 30L Pilot Vessels.
RR258307 Retreat Curve PTFE Stirrer Shaft – 30L Pilot Vessels.
RR258308 Turbine PTFE Stirrer Shaft – 30L Pilot Vessels.
RR258351 Anchor PTFE Stirrer Shaft – 35L Pilot Vessels.
RR258352 Retreat Curve PTFE Stirrer Shaft – 35L Pilot Vessels.
RR258353 Turbine PTFE Stirrer Shaft – 35L Pilot Vessels.
PTFE Adjustable Rotors
RR258300 Adjustable PTFE 4 Blade 45 Angle Rotor 16mm OD 100mm Rotor.
RR258302 Adjustable PTFE 2 Blade Vertical Rotor 16mm OD 100mm Rotor.
PTFE Pt100 Temperature Probes & Adapters
RR145000 Pt100 PTFE Temp. Probe 9mm + Lemo Plug – 5L to 10L Vessels.
RR146000 Pt100 PTFE Temp. Probe 9mm + Lemo Plug – 15L to 35L Vessels.
RR140015 PTFE Temperature Probe Adapter – 9mm.
PTFE Baffles + PTFE Probe Baffles
RR257000 PTFE Baffle – 16mm OD, 35mm, 600mm.
RR257002 PTFE Baffle – 16mm OD, 35mm, 700mm.
RR257004 Pt100 PTFE Baffle Probe + Lemo – 16mm OD, 35mm, 600mm.
RR257006 Pt100 PTFE Baffle Probe + Lemo – 16mm OD, 35mm, 700mm.
RR257008 B24 to 16mm PTFE Compression Fitting.
RR257010 B29 to 16mm PTFE Compression Fitting.
RR257012 B34 to 16mm PTFE Compression Fitting.
RR239200 - Pilot Reflux Divider Kit
RR139320 – Reflux Divider Head, B34 + GL18 fittings.
RR139300 – Large Double Coil Rodaviss Condenser 60mm B34 + GL18 + fittings.
RR139012 – Right Angle Adapter B34 + GL14 + PTFE fittings.
RR139332 – Adapter Rodaviss B24 to GL25.
RR139350 – GL25 HT Compression Fitting for 12mm OD Tubing.
RR139354 – PTFE Tubing 10mm ID x 12mm OD – 1m length.
RR139360 – 3 x Pilot Boss Head – 22-35mm, 8-12mm.
RR139372 – 4-Prong Large Clamp – 10mm rod, 30-80mm.
RR139376 – Lower Support Ring – 10m rod, 76mm ID.
RR139374 – Universal Clamp Cork Jaws – 10mm rod, 0-80mm.
Note: A suitable receiver flask/s RR139324/6/8/30 is required to complete this kit.
RR239202 - Pilot Reflux Divider Kit with Vapour Temperature Probe
RR139322 – Reflux Divider Head, B34 + GL18 fittings +B14 temp port
RR139300 – Large Double Coil Rodaviss Condenser 60mm B34 + GL18 + fittings.
RR139012 – Right Angle Adapter B34 + GL14 + PTFE fittings.
RR139332 – Adapter Rodaviss B24 to GL25.
RR139350 – GL25 HT Compression Fitting for 12mm OD Tubing.
RR139354 – PTFE Tubing 10mm ID x 12mm OD – 1m length.
RR139133 – Pt100 PTFE Temp. Probe (Reflux Divider Head) + 2m Cable.
RR139135 – PTFE Temperature Probe Adapter (B14 for Reflux Divider Head).
RR139360 – 3 x Pilot Boss Head – 22-35mm, 8-12mm.
RR139372 – 4-Prong Large Clamp – 10mm rod, 30-80mm.
RR139374 – Universal Clamp Cork Jaws – 10mm rod, 0-80mm.
RR139376 – Lower Support Ring – 10m rod, 76mm ID.
Note: A suitable receiver flask/s RR139324/6/8/30 is required to complete this kit.
Pilot Clamps and Bosses
RR139360 Pilot Boss Head – 22-35mm, 8-12mm.
RR139362 Rod Extender – 10mm, 100mm long, for 10mm rods.
RR139364 Rubber Belt Clamp – 10mm rod, 60-170mm.
RR139366 Chain Clamp – 10mm rod, 40-120mm.
RR139368 Chain Clamp – 10mm rod, 80-150mm.
RR139370 Chain Clamp – 10mm rod, 100-170mm.
RR139372 4-Prong Large Clamp – 10mm rod, 30-80mm.
RR139374 Universal Clamp Cork Jaws – 10mm rod, 0-80mm.
RR139376 Lower Support Ring – 10m rod, 76mm ID.
Pilot Height Reduction Kits
RR210070 Reactor-Ready Pilot Core – 200mm Height Reduction Kit.
RR210072 Reactor-Ready Pilot Core – 300mm Height Reduction Kit.
Important: The height reduction kits replace the main upright rods and rear tensioning bars to reduce the overall height of your system by either 200 mm or 300 mm respectively. Ideal for locations where height is restricted.
General Maintenance Accessories
RR210100 Reactor-Ready Pilot Maintenance Kit (includes all items listed below).
Does not include Chemraz O-rings or 25 mm Piston..
RR121027 Oil Wipe for Support Rods, Pk 10.
RR121136 Stirrer Guide Bearing Seal B34 16mm.
RR121138 Stirrer Guide Ferrule & Shaft Seal B34 16mm.
RR121071 23mm Viton O-Rings for Quick Release Hose Coupling, Pk 2.
RR210050 34mm Viton O-Rings for Quick Release Hose Coupling – NW20, Pk 2.
RR210022 FEP Encapsulated Silicone Vessel O-ring – 200mm.
RR166104 Replacement 25mm Piston Top O-Ring FEP, Pk 2.
RR166106 Replacement 25mm Piston Middle O-Ring FEP.
Important: For temperatures above 150 ˚C we recommend the use of high performance Chemraz piston O-rings to prevent possible weeping. Chemraz O-rings are suitable for temperatures from 0 ˚C to +230 ˚C and should not be used below 0 ˚C.
RR210074 Replacement 25mm Piston Top O-Ring Chemraz (0ºC to 230ºC), Pk 2.
RR166070 Piston 25mm for Single & Vacuum Jacketed Vessels.
Reactor-Ready Pilot Glass Lids
DN200 Glass Lids fit all Vessel sizes. Choose from two standard configurations with 6 or 7 Rodaviss glass joints or request a custom design: Lids are NOT included with the Pilot core and must be ordered separately.
RR236000 6 Neck Lid DN200 – 1xB19, 1xB24, 1xB29, 2xB34, 1xB45.
RR236002 7 Neck Lid DN200 – 1xB19, 1xB24, 1xB29, 3xB34, 1xB4.
PTFE Vessel Lids
Ideal for use with PAT and test probes.
RR136200 – 8 port with PTFE sockets.
• 1 x B19 Vertical (3/4” NPT)
• 1 x B24 Vertical (3/4” NPT)
• 1 x B29, Vertical (1” NPT)
• 1 x B29, Vertical (1 ½” NPT)
• 1 x B34 Central Vertical (1 ½” NPT)
• 1 x B34 Vertical (1 ½” NPT)
• 1 x B34 15 degree angled (1 ½” NPT)
• 1 x B45 10×10 compound (1 ½” NPT)
RR136210 – 8 port without sockets.
• 1 x 1½” NPT central vertical.
• 1 x 1½” NPT side 15° angled.
• 1 x 1½” NPT side 10°x10° compound.
• 2 x 1½” NPT side vertical.
• 1 x ¾” NPT side vertical.
• 1 x ¾” NPT side vertical.
• 1 x 1” NPT side vertical.
PTFE Sockets, Compression Fittings & Blanking Plugs for DN200 PTFE Lids
RR136300 Rodaviss B19 Socket Adapter (¾” NPT).
RR136301 Rodaviss B24 Socket Adapter (¾” NPT).
RR136302 Rodaviss B29 Socket Adapter (¾” NPT).
RR136303 Rodaviss B34 Socket Adapter (¾” NPT).
RR136304 Rodaviss B45 Socket Adapter (¾” NPT).
RR136305 Rodaviss B24 Socket Adapter (1” NPT).
RR136306 Rodaviss B29 Socket Adapter (1” NPT).
RR136307 Rodaviss B34 Socket Adapter (1” NPT).
RR136308 Rodaviss B45 Socket Adapter (1” NPT).
RR136309 Rodaviss B24 Socket Adapter (1½” NPT).
RR136310 Rodaviss B29 Socket Adapter (1½” NPT).
RR136311 Rodaviss B34 Socket Adapter (1½” NPT).
RR136313 Rodaviss B45 Socket Adapter (1½” NPT).
RR136312 Reactor-Ready Pilot Central B34 Socket Adapter (1½” NPT).
RR136316 8mm Bore Compression Fitting ¾” NPT.
RR136317 12mm Bore Compression Fitting ¾” NPT.
RR136318 14mm Bore Compression Fitting ¾” NPT.
RR136319 16mm Bore Compression Fitting ¾” NPT.
RR136320 19mm Bore Compression Fitting ¾” NPT.
RR136321 8mm Bore Compression Fitting 1” NPT.
RR136322 12mm Bore Compression Fitting 1” NPT.
RR136323 14mm Bore Compression Fitting 1” NPT.
RR136324 16mm Bore Compression Fitting 1” NPT.
RR136325 19mm Bore Compression Fitting 1” NPT.
RR136326 25mm Bore Compression Fitting 1” NPT.
RR136327 PTFE Blanking Plug ¼” NPT.
RR136328 PTFE Blanking Plug ¾” NPT.
RR136329 PTFE Blanking Plug 1” NPT.
RR136330 PTFE Blanking Plug 1½” NPT.

Webinar: Reaction system design – Learn from the experts
In this webinar we look at some considerations when designing a jacketed lab reactor system and their implications.
We then follow on with some bespoke design options available for our jacketed reactors, where we review a variety of subjects including reactor geometry, thermal fluid connections, lid port design, drain valves and more illustrated with some examples of custom systems we have done for users.

Webinar: The benefits of Jacketed Lab Reactors and considerations when choosing a system
When purchasing a jacketed lab reactor setup for scaling up your process, there are many considerations to be made.
In this webinar we cover the fundamental points of specifying the right reactor and ancillary devices to ensure that you get the optimal performance of your jacketed lab reactor system for scale-up and process development.
