Pilot Reaction Vessel Features

Reactor-Ready Pilot Process Reaction Vessel Features

  • Jacketed and vacuum jacketed vessels with dish shaped bottom.
  • Feature a 1.25 to 1 ratio of internal height to diameter to mimic the geometry of plant scale reactors.
  • Range of single vessels from 5 litres to 35 litres.
  • Range of vacuum jacketed vessels from 5 litres to 10 litres.
  • Custom styles and sizes available on request.
  • Precision engineered borosilicate glass vessels with DN200 flange.
Reactor-Ready Pilot Glass Lids

Reactor-Ready Pilot Process Reaction Vessel Features

  • Double or vacuum jacketed vessels provide transparent insulation for faster cooling, lower temperatures and reduces frosting for improved contents visibility.
  • DN200 ground and polished flat flange combines with the FEP encapsulated O-ring and a unique self-centering PTFE collar to offer a leak-tight seal between the vessel and lid.
  • Convenient and cost effective vessel kits include stirrer, temperature probe and side-arm coupling.

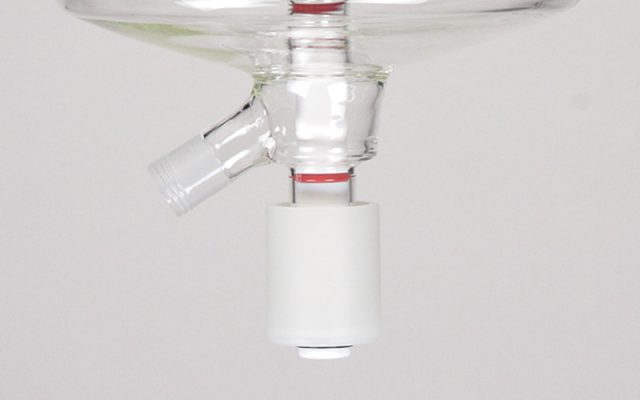

Vessels feature V5 Zero Dead Space Drain Stopcock

Vessels feature V5 Zero Dead Space Drain Stopcock

  • Exclusive stopcock design prevents over-tightening that can cause glassbreakage
  • Piston design allows quick and safe removal, eliminating the cleaning and assembly problems associated with other stopcocks
  • Glass-filled PTFE pistons operate across the full temperature range -70 ºC to +230 ºC
  • Pistons are interchangeable between vessels with a full range of replacement parts and FEP O-rings
  • We recommend using Chemraz O-rings for temperatures above +150 ºC
  • The large 25 mm bore pistons minimise sample hold-up and are ideal for slurries
Reactor-Ready Pilot Vessels 30 and 35L NEW

Introducing our new 30 & 35 litre vessels

Scale up your chemistry from 5 to 35 litres, in a single framework, using the Reactor-Ready Pilot Lab Reactor.

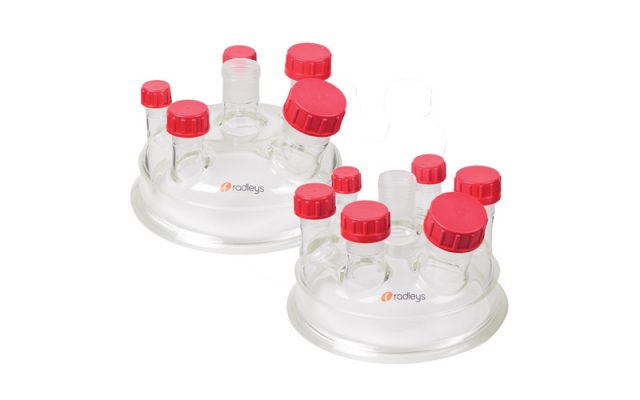

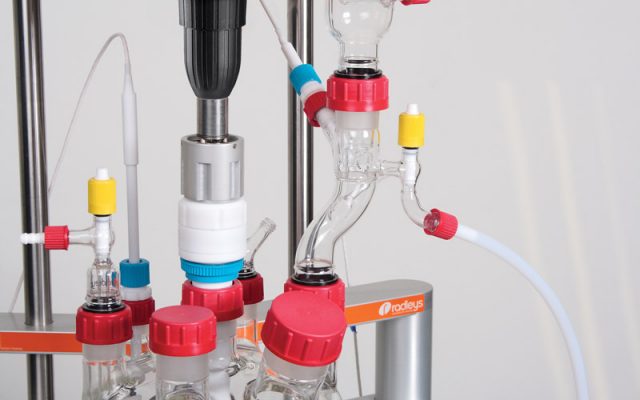

Reactor-Ready Pilot Process Vessel Lids

Reactor-Ready Pilot Process Vessel Lids

Choose from two precision ground standard configurations or request a custom design.

  • DN200 Glass lids fit all vessel sizes:
  • DN200 lid with either 6 or 7, Rodaviss conical ground glass joints
  • Rodaviss joints are grease free, will not jam and are interchangeable with ordinary 1-in-10 B and A length tapered conical joints
  • Rodaviss A length joints are also available
Reactor-Ready Pilot - PTFE Lids

PTFE Vessel Lids

Ideal for use with PAT and test probes

  • Removable PTFE sockets and compression fittings allow for maximum flexibility, simply unscrew and change the fitting to suit your set-up.
  • More suitable for PAT and test probes than equivalent glass lids.
  • Allows for more ports in a smaller space (8 rather than 6 or 7).
  • More robust and less likely to break than glass.
  • Less dead space at top of vessel.

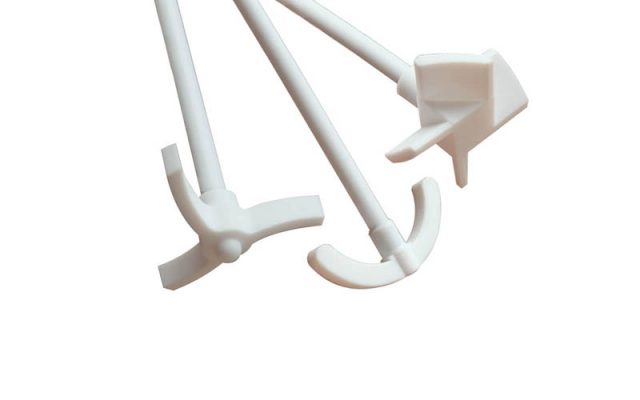

Reactor Ready PTFE Stirring Shaft

PTFE Stirrer Shafts

  • Chemically inert PTFE rotors moulded onto a 16 mm ø PTFE encapsulated metal core
  • Available in Anchor, Retreat Curve and Turbine or Propeller styles
  • PTFE Turbine Stirring Shaft is included with all Pilot vessel kits

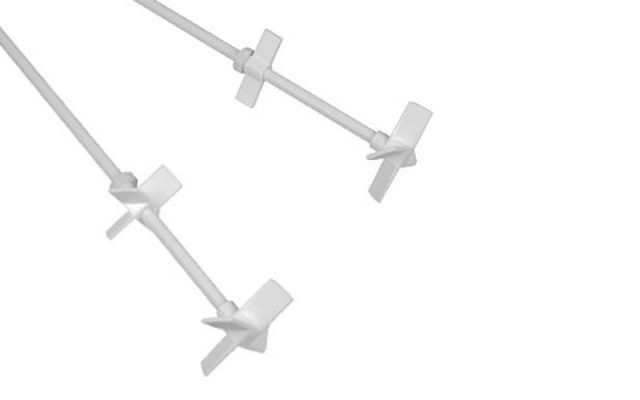

PTFE Adjustable Rotors

PTFE Adjustable Rotors

  • Fit 16 mm shafts and can be position anywhere along shaft
  • Chemically inert PTFE with glass filled PTFE locking nut
  • RR258300 – 4 blade 45˚ Angle Rotor forces the product down and creates good
    axial flow with low shear force
  • RR258302 – 2 Blade Vertical Rotor creates tangential flow with gentle stirring

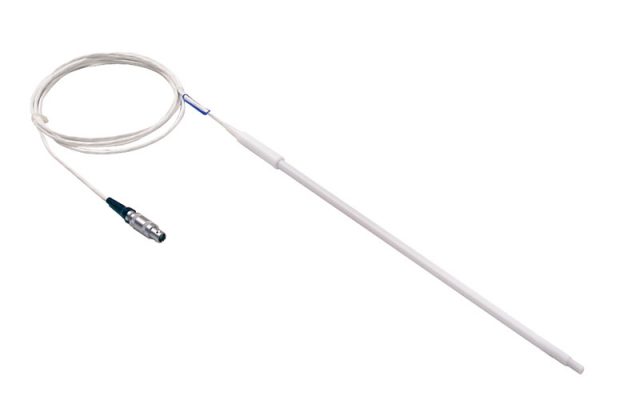

Reactor-Ready Pilot PTFE Pt100 Temperature Probes and Adapters

Reactor-Ready Pilot PTFE Pt100 Temperature Probes and Adapters

Wide choice of Pilot PTFE Pt 100 Temperature probes to suit your application
Reactor-Ready Pilot Reflux Divider Kits

Reactor-Ready Pilot Reflux Divider Kits

Reflux divider kits allow condensed vapours to be either refluxed back into the reactor or diverted into a separate receiving vessel.

  • Choice of receiving flasks 500 ml, 1, 2 and 5 litre. All receiver flasks feature three necks,decanting stopcock and are suitable for stacking. Receiver flasks must be ordered separately
  • Reflux divider kits are available with optional vapour temperature sensor

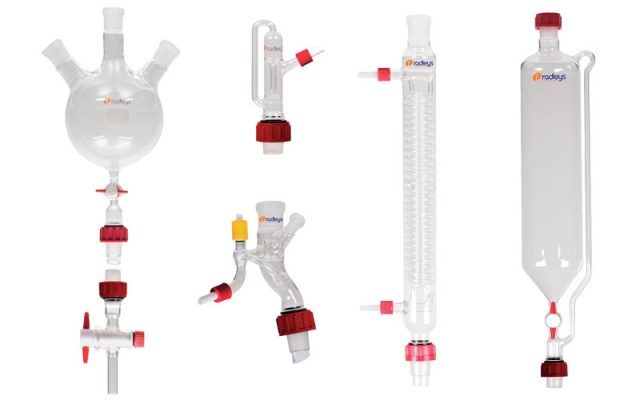

Reactor Ready Pilot Glassware

Reactor-Ready Pilot glassware

Wide choice of standard glassware and accessories to suit your application

Process Reaction Vessel Specifications



Pilot Single Jacketed Reaction Vessels

5 litre 10 litre 15 litre 20 litre 30 litre 35 litre
Cat No. (Vessel Only) RR235050 RR235100 RR235150 RR235200 RR235300 RR235350
Cat No. (Vessel Kit) RR220005 RR220015 RR220025 RR220035 RR220045 RR220050
Nominal Capacity 5 Litres 10 Litres 15 Litres 20 Litres 30 Litres 35 Litres
Total Working Volume 5.6 Litres 12.9 Litres 16.4 Litres 22.7 Litres 33.0 Litres 38.5 Litres
Internal Diameter 180 mm 240 mm 260 mm 290 mm 340mm 340mm
External Diameter 250 mm 300 mm 315 mm 350 mm 415mm 415mm
Jacketed Height 230 mm 300 mm 325 mm 363 mm 378 mm 433 mm
External Height 510 mm 590 mm 620 mm 660 mm 710mm 760mm
Thermofluid Jacket Volume 4.6 Litres 6.2 Litres 5.7 Litres 9.8 Litres 12.4 Litres 14 Litres
Heat Transfer Area 0.16m2 0.27m2 0.31m2 0.38 m2 0.45m2 0.52m2
Flange DN200
Sidearm 20mm ID Reactor-Ready
Piston V5 Zero Dead Space 25 mm Glass Filled PTFE
Piston Run-off B24 Rodaviss Socket



Pilot Vacuum Jacketed Reaction Vessels

5 litre 10 litre
Cat No. (Vessel only) RR235052 RR235102
Cat No. (Vessel Kit) RR220010 RR220020
Nominal Capacity 5 Litres 10 Litres
Total Working Volume 5.6 Litres 12.9 Litres
Internal Diameter 180 mm 240 mm
External Diameter 300 mm 350 mm
Jacketed Height 225 mm 300 mm
External Height 530 mm 610 mm
Thermofluid Jacket Volume 3.9 Litres 5.4 Litres
Heat Transfer Area 0.16 m2 0.27 m2
Flange DN200
Sidearm 20 mm ID Reactor-Ready
Piston V5 Zero Dead Space 25 mm Glass Filled PTFE
Piston Run-off B24 Rodaviss Socket

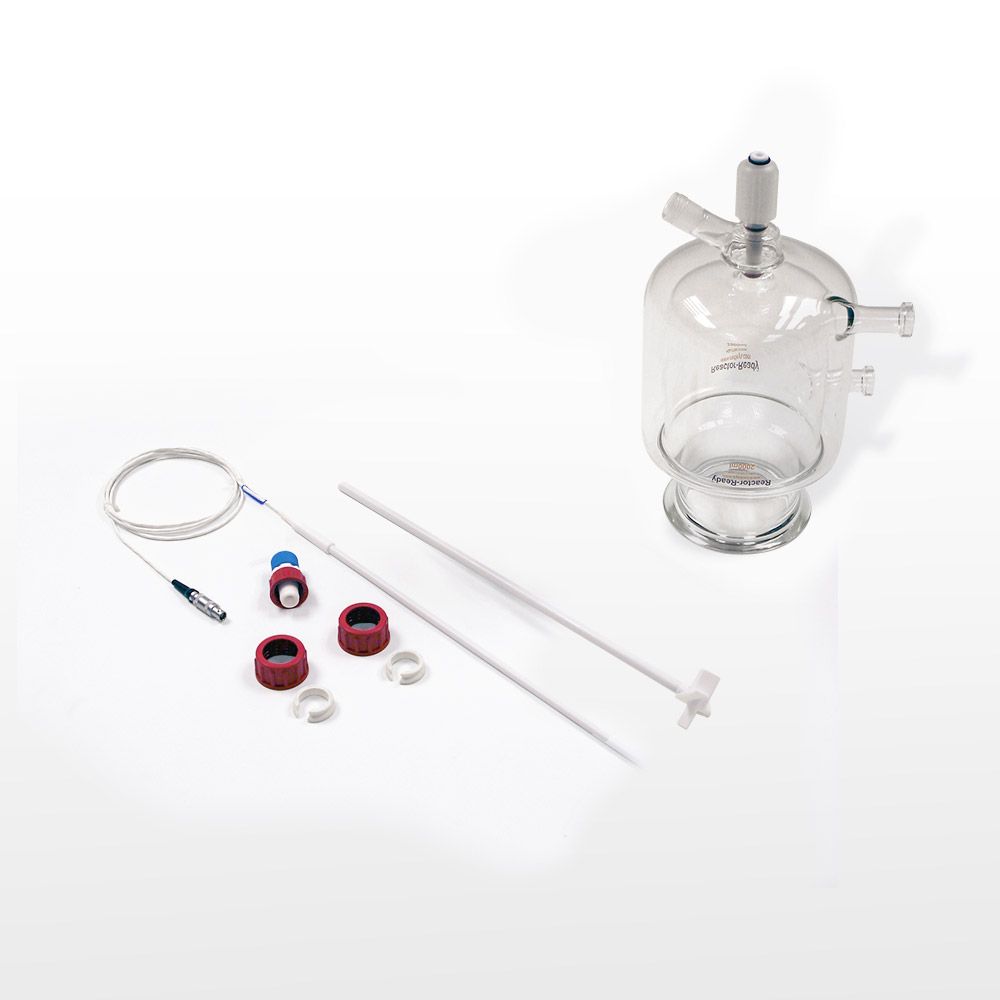

Process Reaction Vessel Kits

Comprises: glass reaction vessel, PTFE Turbine stirrer, sidearm couplings, Pt100 PTFE temperature probe and PTFE probe adapter.

RR220005     5L Single Jacketed Pilot Process Vessel Kit.
RR220015     10L Single Jacketed Pilot Process Vessel Kit.
RR220025     15L Single Jacketed Pilot Process Vessel Kit.
RR220035     20L Single Jacketed Pilot Process Vessel Kit.
RR220045     30L Single Jacketed Pilot Vessel Kit (must also purchase RR210002 Lower Support Plate).
RR220050     35L Single Jacketed Pilot Vessel Kit (must also purchase RR210002 Lower Support Plate).

RR220010     5L Vacuum Jacketed Pilot Process Vessel Kit.
RR220020     10L Vacuum Jacketed Pilot Process Vessel Kit.

Jacketed and Vacuum Jacketed Reaction Vessels

RR235050     5L Single Jacketed Pilot Vessel.
RR235100     10L Single Jacketed Pilot Vessel.
RR235150     15L Single Jacketed Pilot Vessel.
RR235200     20L Single Jacketed Pilot Vessel.
RR235300     30L Single Jacketed Pilot Vessel (must also purchase RR210002 Lower Support Plate).
RR235350     35L Single Jacketed Pilot Vessel (must also purchase RR210002 Lower Support Plate).

RR235052     5L Vacuum Jacketed Pilot Vessel.
RR235102     10L Vacuum Jacketed Pilot Vessel.

Reactor-Ready Pilot Process Vessel Lids

RR236000 – 6 Neck DN200 Lid.

1 x B34 central vertical – stirrer.
1 x B19 side vertical – probe.
1 x B24 side vertical – gas purge.
1 x B29 side vertical – drop funnel, bubbler, liquid inlet adapter.
1 x B34 side vertical – condenser and reflux.
1 x B45 side angled – solid additions.

RR236002 – 7 Neck DN200 Lid.

1 x B34 central vertical – stirrer.
1 x B19 side vertical – probe.
1 x B24 side vertical – gas purge.
1 x B29 side vertical – drop funnel, bubbler, liquid inlet adapter.
2 x B34 side vertical – condenser and reflux.
1 x B45 side angled – solid additions.

PTFE Stirrer Shafts

RR258051     Anchor PTFE Stirrer Shaft – 5L Pilot Vessels.
RR258052     Retreat Curve PTFE Stirrer Shaft – 5L Pilot Vessels.
RR258053     Turbine PTFE Stirrer Shaft – 5L Pilot Vessels.

RR258101     Anchor PTFE Stirrer Shaft – 10L Pilot Vessels.
RR258102     Retreat Curve PTFE Stirrer Shaft – 10L Pilot Vessels.
RR258103     Turbine PTFE Stirrer Shaft – 10L Pilot Vessels.

RR258151     Anchor PTFE Stirrer Shaft – 15L Pilot Vessels.
RR258152     Retreat Curve PTFE Stirrer Shaft – 15L Pilot Vessels.
RR258153     Turbine PTFE Stirrer Shaft – 15L Pilot Vessels.

RR258201     Anchor PTFE Stirrer Shaft – 20L Pilot Vessels.
RR258202     Retreat Curve PTFE Stirrer Shaft – 20L Pilot Vessels.
RR258203     Turbine PTFE Stirrer Shaft – 20L Pilot Vessels.

RR258306     Anchor PTFE Stirrer Shaft – 30L Pilot Vessels.
RR258307     Retreat Curve PTFE Stirrer Shaft – 30L Pilot Vessels.
RR258308     Turbine PTFE Stirrer Shaft – 30L Pilot Vessels.

RR258351     Anchor PTFE Stirrer Shaft – 35L Pilot Vessels.
RR258352     Retreat Curve PTFE Stirrer Shaft – 35L Pilot Vessels.
RR258353     Turbine PTFE Stirrer Shaft – 35L Pilot Vessels.

PTFE Adjustable Rotors

RR258300     Adjustable PTFE 4 Blade 45 Angle Rotor 16mm OD 100mm Rotor.
RR258302     Adjustable PTFE 2 Blade Vertical Rotor 16mm OD 100mm Rotor.

PTFE Pt100 Temperature Probes & Adapters

RR145000     Pt100 PTFE Temp. Probe 9mm + Lemo Plug – 5L to 10L Vessels.
RR146000     Pt100 PTFE Temp. Probe 9mm + Lemo Plug – 15L to 35L Vessels.
RR140015     PTFE Temperature Probe Adapter – 9mm.

PTFE Baffles + PTFE Probe Baffles

RR257000     PTFE Baffle – 16mm OD, 35mm, 600mm.
RR257002     PTFE Baffle – 16mm OD, 35mm, 700mm.
RR257004     Pt100 PTFE Baffle Probe + Lemo – 16mm OD, 35mm, 600mm.
RR257006     Pt100 PTFE Baffle Probe + Lemo – 16mm OD, 35mm, 700mm.
RR257008     B24 to 16mm PTFE Compression Fitting.
RR257010     B29 to 16mm PTFE Compression Fitting.
RR257012     B34 to 16mm PTFE Compression Fitting.

RR239200 - Pilot Reflux Divider Kit

RR139320 – Reflux Divider Head, B34 + GL18 fittings.
RR139300 – Large Double Coil Rodaviss Condenser 60mm B34 + GL18 + fittings.
RR139012 – Right Angle Adapter B34 + GL14 + PTFE fittings.
RR139332 – Adapter Rodaviss B24 to GL25.
RR139350 – GL25 HT Compression Fitting for 12mm OD Tubing.
RR139354 – PTFE Tubing 10mm ID x 12mm OD – 1m length.
RR139360 – 3 x Pilot Boss Head – 22-35mm, 8-12mm.
RR139372 – 4-Prong Large Clamp – 10mm rod, 30-80mm.
RR139376 – Lower Support Ring – 10m rod, 76mm ID.
RR139374 – Universal Clamp Cork Jaws – 10mm rod, 0-80mm.
Note: A suitable receiver flask/s RR139324/6/8/30 is required to complete this kit.

RR239202 - Pilot Reflux Divider Kit with Vapour Temperature Probe

RR139322 – Reflux Divider Head, B34 + GL18 fittings +B14 temp port
RR139300 – Large Double Coil Rodaviss Condenser 60mm B34 + GL18 + fittings.
RR139012 – Right Angle Adapter B34 + GL14 + PTFE fittings.
RR139332 – Adapter Rodaviss B24 to GL25.
RR139350 – GL25 HT Compression Fitting for 12mm OD Tubing.
RR139354 – PTFE Tubing 10mm ID x 12mm OD – 1m length.
RR139133 – Pt100 PTFE Temp. Probe (Reflux Divider Head) + 2m Cable.
RR139135 – PTFE Temperature Probe Adapter (B14 for Reflux Divider Head).
RR139360 – 3 x Pilot Boss Head – 22-35mm, 8-12mm.
RR139372 – 4-Prong Large Clamp – 10mm rod, 30-80mm.
RR139374 – Universal Clamp Cork Jaws – 10mm rod, 0-80mm.
RR139376 – Lower Support Ring – 10m rod, 76mm ID.
Note: A suitable receiver flask/s RR139324/6/8/30 is required to complete this kit.

Pilot Clamps and Bosses

RR139360     Pilot Boss Head – 22-35mm, 8-12mm.
RR139362     Rod Extender – 10mm, 100mm long, for 10mm rods.
RR139364     Rubber Belt Clamp – 10mm rod, 60-170mm.
RR139366     Chain Clamp – 10mm rod, 40-120mm.
RR139368     Chain Clamp – 10mm rod, 80-150mm.
RR139370     Chain Clamp – 10mm rod, 100-170mm.
RR139372     4-Prong Large Clamp – 10mm rod, 30-80mm.
RR139374     Universal Clamp Cork Jaws – 10mm rod, 0-80mm.
RR139376     Lower Support Ring – 10m rod, 76mm ID.

Pilot Height Reduction Kits

RR210070     Reactor-Ready Pilot Core – 200mm Height Reduction Kit.
RR210072     Reactor-Ready Pilot Core – 300mm Height Reduction Kit.

Important: The height reduction kits replace the main upright rods and rear tensioning bars to reduce the overall height of your system by either 200 mm or 300 mm respectively. Ideal for locations where height is restricted.

General Maintenance Accessories

RR210100     Reactor-Ready Pilot Maintenance Kit (includes all items listed below).
Does not include Chemraz O-rings or 25 mm Piston..
RR121027     Oil Wipe for Support Rods, Pk 10.
RR121136     Stirrer Guide Bearing Seal B34 16mm.
RR121138     Stirrer Guide Ferrule & Shaft Seal B34 16mm.
RR121071     23mm Viton O-Rings for Quick Release Hose Coupling, Pk 2.
RR210050     34mm Viton O-Rings for Quick Release Hose Coupling – NW20, Pk 2.
RR210022     FEP Encapsulated Silicone Vessel O-ring – 200mm.
RR166104     Replacement 25mm Piston Top O-Ring FEP, Pk 2.
RR166106     Replacement 25mm Piston Middle O-Ring FEP.

Important: For temperatures above 150 ˚C we recommend the use of high performance Chemraz piston O-rings to prevent possible weeping. Chemraz O-rings are suitable for temperatures from 0 ˚C to +230 ˚C and should not be used below 0 ˚C.

RR210074     Replacement 25mm Piston Top O-Ring Chemraz (0ºC to 230ºC), Pk 2.
RR166070     Piston 25mm for Single & Vacuum Jacketed Vessels.

Reactor-Ready Pilot Glass Lids

DN200 Glass Lids fit all Vessel sizes. Choose from two standard configurations with 6 or 7 Rodaviss glass joints or request a custom design: Lids are NOT included with the Pilot core and must be ordered separately.

RR236000     6 Neck Lid DN200 – 1xB19, 1xB24, 1xB29, 2xB34, 1xB45.
RR236002     7 Neck Lid DN200 – 1xB19, 1xB24, 1xB29, 3xB34, 1xB4.

PTFE Vessel Lids

Ideal for use with PAT and test probes.

RR136200 – 8 port with PTFE sockets.
• 1 x B34 central vertical (1½” NPT).
• 1 x B34 side 15° angled (1½” NPT).
• 1 x B45 side 10°x10° compound (1½” NPT).
• 2 x B34 side vertical (1½” NPT).
• 1 x B19 side vertical (¾” NPT).
• 1 x B24 side vertical (¾” NPT).
• 1 x B29 Side vertical (1” NPT).

RR136210 – 8 port without sockets.
• 1 x 1½” NPT central vertical.
• 1 x 1½” NPT side 15° angled.
• 1 x 1½” NPT side 10°x10° compound.
• 2 x 1½” NPT side vertical.
• 1 x ¾” NPT side vertical.
• 1 x ¾” NPT side vertical.
• 1 x 1” NPT side vertical.

PTFE Sockets, Compression Fittings & Blanking Plugs for DN200 PTFE Lids

RR136300 Rodaviss B19 Socket Adapter (¾” NPT).
RR136301 Rodaviss B24 Socket Adapter (¾” NPT).
RR136302 Rodaviss B29 Socket Adapter (¾” NPT).
RR136303 Rodaviss B34 Socket Adapter (¾” NPT).
RR136304 Rodaviss B45 Socket Adapter (¾” NPT).
RR136305 Rodaviss B24 Socket Adapter (1” NPT).
RR136306 Rodaviss B29 Socket Adapter (1” NPT).
RR136307 Rodaviss B34 Socket Adapter (1” NPT).
RR136308 Rodaviss B45 Socket Adapter (1” NPT).
RR136309 Rodaviss B24 Socket Adapter (1½” NPT).
RR136310 Rodaviss B29 Socket Adapter (1½” NPT).
RR136311 Rodaviss B34 Socket Adapter (1½” NPT).
RR136313 Rodaviss B45 Socket Adapter (1½” NPT).
RR136312 Reactor-Ready Pilot Central B34 Socket Adapter (1½” NPT).
RR136316 8mm Bore Compression Fitting ¾” NPT.
RR136317 12mm Bore Compression Fitting ¾” NPT.
RR136318 14mm Bore Compression Fitting ¾” NPT.
RR136319 16mm Bore Compression Fitting ¾” NPT.
RR136320 19mm Bore Compression Fitting ¾” NPT.
RR136321 8mm Bore Compression Fitting 1” NPT.
RR136322 12mm Bore Compression Fitting 1” NPT.
RR136323 14mm Bore Compression Fitting 1” NPT.
RR136324 16mm Bore Compression Fitting 1” NPT.
RR136325 19mm Bore Compression Fitting 1” NPT.
RR136326 25mm Bore Compression Fitting 1” NPT.
RR136327 PTFE Blanking Plug ¼” NPT.
RR136328 PTFE Blanking Plug ¾” NPT.
RR136329 PTFE Blanking Plug 1” NPT.
RR136330 PTFE Blanking Plug 1½” NPT.

Reaction System Design - On Demand

Webinar: Reaction system design – Learn from the experts

Watch a preview here

In this webinar we look at some considerations when designing a jacketed lab reactor system and their implications.

We then follow on with some bespoke design options available for our jacketed reactors, where we review a variety of subjects including reactor geometry, thermal fluid connections, lid port design, drain valves and more illustrated with some examples of custom systems we have done for users.

Watch webinar on demand



The benefits of Jacketed Lab Reactors and considerations when choosing a system - On Demand

Webinar: The benefits of Jacketed Lab Reactors and considerations when choosing a system

Watch a preview here

When purchasing a jacketed lab reactor setup for scaling up your process, there are many considerations to be made.

In this webinar we cover the fundamental points of specifying the right reactor and ancillary devices to ensure that you get the optimal performance of your jacketed lab reactor system for scale-up and process development.

Watch webinar on demand
