For unattended and continuous use
The Distimatic module can be combined with any benchtop Hei-Vap or Hei-Vap Industrial to allow for continuous distillation of large volumes of solvent. The module enables evaporations to be run unattended, enabling you to leave your rotary evaporator running overnight or during the weekend.

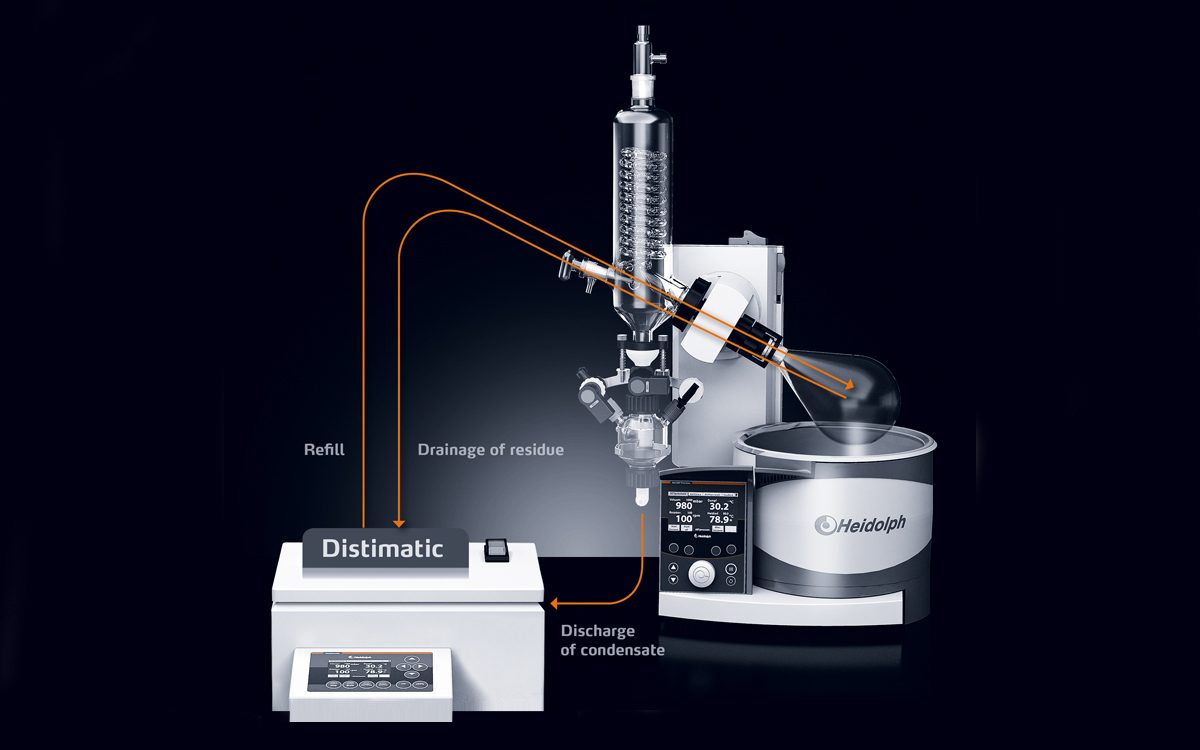

Automatic solvent supply of the evaporating flask
Refilling with Sensor-Mode runs automatically and is based on the desired level of liquid in the evaporation flask. Refilling with Time-Mode is done for a set time duration
Automatic discharge of condensate
A valve matrix controls the continuous discharge of the condensate from the system into a temporary storage flask. The collected condensate will be discharged into your collecting tank by a diaphragm pump.
Automatic drainage of residue
The residue in the evaporating flask is drained into a collecting tank. Afterwards the process starts again automatically by refilling the evaporating flask.
End of distillation process
The process can be terminated automatically after evaporation is completed or manually at any time by the operator.
The Distimatic module
Designed to automated the distillation processes in your lab. Increase your throughput and run fast, reliable and continuous solvent evaporation applications safely.
The Distimatic is the world’s first and only automated evaporation module that allows for drainage of the residue when evaporation is completed, allowing for a completely autonomous process.
- Wide range of possibilities to adjust settings according to your individual needs
- The bench-top system can be used in common fume hoods due to the space saving design
- Automatic drainage of residue: residue in the evaporation flask will be drained off
- Bumping is eliminated by continuously feeding small volumes into evaporating flask
- Automated in unattended distillation in two different modes
- Automatic refill of the evaporation flask and continuous automatic discharge of condensate
- Compatible with all Heidolph bench-top and large-scale rotary evaporators
- Applications are completed in an automated and unattended process giving solvent separations of nearly 100%
- In case of an emergency the complete system will power off entirely
| Distimatic Bench-top without drainage of residue | Distimatic Bench-top with drainage of residue | |
| Compatibility | Hei-VAP and Laborota 4000 series | Hei-VAP and Laborota 4000 series |
| Automatic refill of sample | ✔ | ✔ |
| Automatic discharge of condensate | ✔ | ✔ |
| Automatic drainage of residue | – | ✔ |
| Total power multiple socket | 3,500 W | 3,500 W |
| Emergency-Stop button | ✔ | ✔ |
| Condensate pump | Integrated diaphragm pump | Integrated diaphragm pump |
| Residue Pump | – | diaphragm pump |
| Protection class DIN EN 60529 – Automatic module | IP 54 | IP 54 |
| Protection class DIN EN 60529 – Residue pump | – | IP 65 |
Automatic modules for Bench-Top Evaporators
591-53000-00 – Distimatic Bench-top including automatic drainage of residue and Glassware set G9B
591-53000-02 – Distimatic Bench-top including automatic drainage of residue and Glassware set G9B XL
591-51000-00 – Distimatic Bench-top without automatic drainage of residue and Glassware set G9B
591-51000-02 – Distimatic Bench-top without automatic drainage of residue and Glassware set G9B XL
Automatic Modules for Large Scale Evaporators
591-54000-00 -Industrial Distimatic Automatic Module inc Residue Extraction for Glass Set A
591-55000-00 – Industrial Distimatic Automatic Module including Residue Extraction for Glass Set R
591-52000-00 – Hei-VAP Industrial Distimatic Automatic Module without Residue Extraction
Hei-VAP Industrial Distimatic Packages with automatic drainage of residue
518-13154-00 – Distimatic Industrial Platinum 2 Pkg A Glassware Set
518-11155-00 – Distimatic Industrial Platinum 1 Pkg R Glassware Set
518-14154-00 – Distimatic Industrial Platinum 3 Pkg A2 Glassware Set
518-14154-20 – Distimatic Industrial Platinum 7 Pkg A1 Glassware Set
Hei-VAP Industrial Distimatic Packages without automatic drainage of residue
518-13152-00 – Distimatic Industrial Platinum 5 Pkg A Glassware Set
518-11152-00 – Distimatic Industrial Platinum 6 Pkg R Glassware Set
518-14152-00 – Distimatic Industrial Platinum 4 Pkg A2 Glassware Set
518-14152-20 – Distimatic Industrial Platinum 8 Pkg A1 Glassware Set
Distimatic Benchtop Packages with drainage of residue
576-83915-00 – Distimatic Integration Package 24/7
For integration into an existing vacuum and cooling liquid system including drainage of residue
Includes:
- Distimatic Bench-top including automatic drainage of residue
- Hei-VAP Ultimate Control Rotary Evaporator with motor lift and coated, vertical glassware set G9B XL
- Tube Set
576-81915-00 – Distimatic Workstation 24/7
Complete package with vacuum pump, chiller additional accesories – including drainage of residue
Includes:
- Distimatic Bench-top including automatic drainage of residue
- Hei-VAP Ultimate Control Rotary Evaporator with motor lift and coated, vertical glassware set G9B XL
- Chiller Hei-CHILL 1200
- Thermal fluid Kryo 30 (20 l)
- RS 232 Cable
- Vacuum pump Rotavac Vario Control
- Condenser for Rotavac Vario
- Tube Set
- Heating bath liquid 5l
- 5l Evaporation flask
Distimatic Benchtop Packages with drainage of residue
576-82915-00 – Distimatic Integration Package
For integration into an existing vacuum and cooling liquid system but without drainage of residue
Includes:
- Distimatic Bench-top without automatic drainage of residue
- Hei-VAP Ultimate Control Rotary Evaporator with motor lift and coated, vertical glassware set G9B XL
- Tube Set
576-80915-00 – Distimatic Workstation
Complete package with vacuum pump, chiller additional accesories but without drainage of residue
Includes:
- Distimatic Bench-top without automatic drainage of residue
- Hei-VAP Ultimate Control Rotary Evaporator with motor lift and coated, vertical glassware set G9B XL
- Chiller Hei-CHILL 1200
- Thermal fluid Kryo 30 (20 l)
- RS 232 Cable
- Vacuum pump Rotavac Vario Control
- Condenser for Rotavac Vario
- Tube Set
- Heating bath liquid 5l
- 5l Evaporation flask
NEW! Hei-VOLUME Distimatic Pro
Check out the new Hei-VOLUME Distimatic Pro for unattended evaporations on Industrial scale
