Carousel 6 Plus glassware and accessories

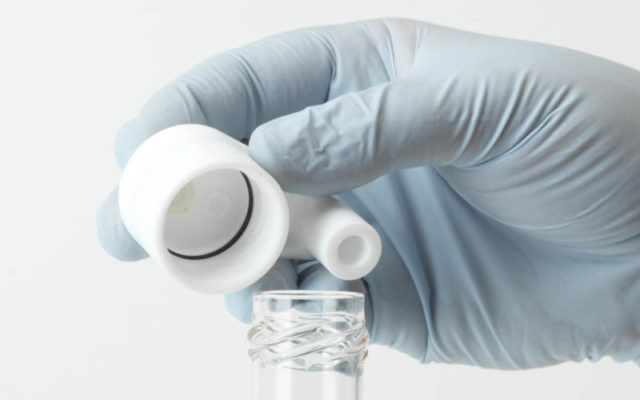

Easy-On PTFE reaction caps

Manufactured from chemically-resistant PTFE

Attach using a 1/4 turn quick-thread
Easy-On push connection to the Carousel’s radial gas system
Caps feature a Suba-Seal silicone septa and on/off valve for isolation and removal
Storage caps have septa, but no sidearm or valve
Caps include a replaceable Nitrile O-ring with an optional Viton replacement
Replaceable septa allow the addition of reagents or removal of samples
All septa are silicone as standard (Viton is available)

Carousel 6 Plus Glassware

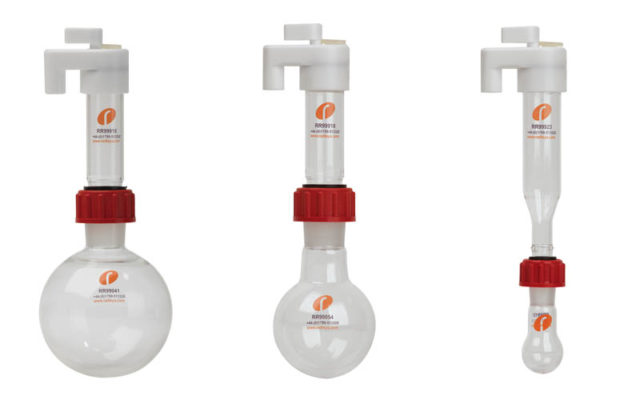

Standard Flasks

Choice of sizes: 5 ml, 10 ml, 25 ml, 50 ml, 100 ml, 170 ml and 250 ml
Precision engineered round bottom design ensures an excellent fit with the Carousel’s wells, maximising heat transfer
Flasks feature a B24/B29 Rodaviss joint for connection to the detachable Reflux Tube
Reflux Tubes feature a quick-thread for an excellent gas tight seal up to 1 psi
Optional single piece 250 ml Long Neck design

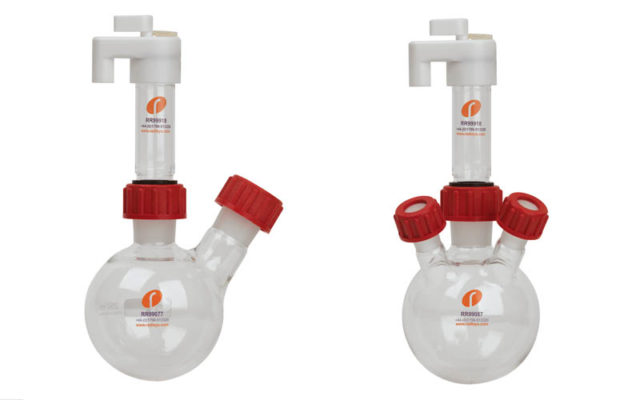

Standard Flasks with Sidearms

Flasks are available with B14/23 and B24/29 sidearm options and include Rodaviss caps and sealing septa
Sidearms are compatible with Dropping Funnels and Solid Addition Funnels

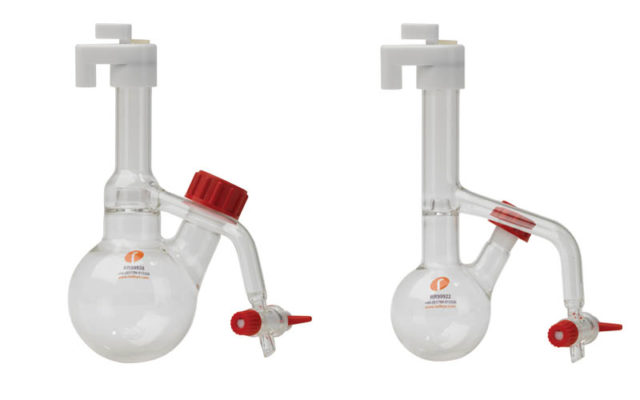

Azeotropic Flasks (Dean & Stark)

Unique single piece flasks fit directly into the Carousel 6 Plus, allowing chemists to perform up to six Azeotropic processes in parallel
Choice of sizes: 100 ml and 250 ml
Special Tornado version to accept centrifugal stirring paddle
Replaceable PTFE stopcock for removal of the aqueous phase

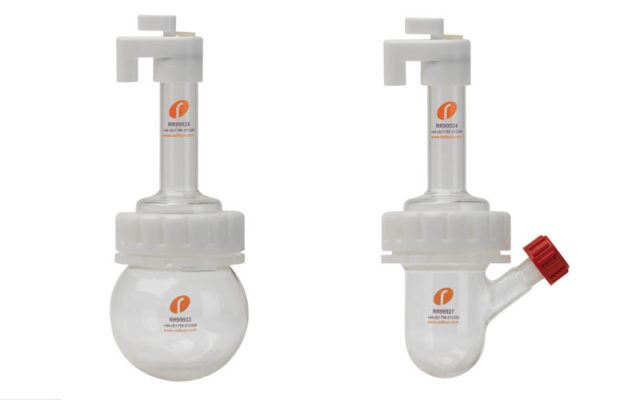

Wide Neck flasks with quick coupling

Wide neck flasks allow easier removal of viscous or solid samples and facilitate the use of the anchor and propeller style PTFE stirrer blade options (Tornado)
These unique vessels feature a 50 mm ID flat flange, which combines with a Nitrile O-ring and our unique self centering PTFE collar to offer a leak-tight seal between the glass flask and wide neck reflux tube.
The two flanges are compressed together using a two part threaded polymer coupling, which both holds the components rigid and offers an excellent gas tight seal

Wide Neck flasks

Wide Neck flasks with Sidearms

One or two sidearms ideal for attaching dropping funnels or powder funnels.

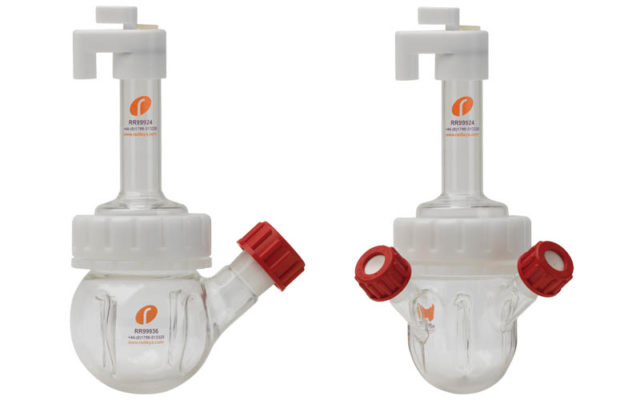

Wide Neck flasks with Baffles and Sidearms

Baffled flasks improve the turbulence within the flask by disrupting the creation of a central vortex.

The range
Downloadable resources

Easy-On PTFE reaction caps

RR91070 Easy-On PTFE Cap, Pack 6
RR91072 Easy-On PTFE Storage Cap, Pack 6
RR98076 Silicone Septa for PTFE Caps, Pack 100
RR98176 Viton Septa for PTFE Caps, Pack 100

Standard Flasks and Reflux Tubes

RR99151 5ml Reaction Flask with B14/23 Neck, Pack 6
RR99148 10ml Reaction Flask with B14/23 Neck, Pack 6
RR99923 B14/23 Reflux Tube + Connecting Set, Pack 6
RR99145 25ml Reaction Flask, Pack 6
RR99070 50ml Reaction Flask, Pack 6
RR99054 100ml Reaction Flask, Pack 6
RR99052 170ml Reaction Flask, Pack 6
RR99041 250ml Reaction Flask, Pack 6
RR99917 250ml Reaction Flask + Reflux Tube + Connecting Set, Pack 6
RR99918 B24/29 Reflux Tube + Connecting Set, Pack 6
RR99919 250ml Long Neck Reaction Flask, Pack 6

Standard Flasks with Sidearms

RR99071 50ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99074 100ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99077 250ml Reaction Flask with B24/29 Sidearm + Septa Port, Pack 6
RR99047 250ml Reaction Flask with B14/23 Sidearm + Septa Port, Pack 6
RR99087 250ml Reaction Flask with 2x B14/23 Sidearms + Septa Port, Pack 6
RR99088 250ml Reaction Flask with 2x B24/29 Sidearms + Septa Port, Pack 6
RR99089 250ml Reaction Flask with 1x B14/23 + 1x B24/29 Sidearm + Septa Port, Pack 6

Wide Neck Flasks with Coupling

RR99924 Wide Neck Reflux Tube + Coupling
RR99925 Coupling for Wide Neck Flasks
RR99940 PTFE Wide Neck Support Collar
RR99941 Nitrile O-Ring for PTFE Wide Neck Support Collar
RR99926 50ml Wide Neck Flask
RR99928 100ml Wide Neck Flask
RR99933 250ml Wide Neck Flask

Wide Neck Flasks with Sidearms

RR99927 50ml Wide Neck Flask with B14/23 Sidearm + Septa Port
RR99929 100ml Wide Neck Flask with B14/23 Sidearm + Septa Port
RR99930 100ml Wide Neck Flask with 2x B14/23 Sidearms + Septa Port
RR99934 250ml Wide Neck Flask with B24/29 Sidearm + Septa Port
RR99935 250ml Wide Neck Flask with 2x B24/29 Sidearms + Septa Port

Wide Neck Flasks with Baffles & Sidearms

RR99931 100ml Baffled Wide Neck Flask with B14/23 Sidearm + Septa Port
RR99932 100ml Baffled Wide Neck Flask with 2x B14/23 Sidearms + Septa Port
RR99936 250ml Baffled Wide Neck Flask with B24/29 Sidearm + Septa Port
RR99937 250ml Baffled Wide Neck Flask with 2x B24/29 Sidearms + Septa Port

Azeotropic Glassware

RR99922 100ml Azeotropic Reaction Flask, Pack 3
RR99920 250ml Azeotropic Reaction Flask, Pack 3
RR99939 100ml Tornado Azeotropic Reaction Flask, Pack 3
RR99938 250ml Tornado Azeotropic Reaction Flask, Pack 3

Liquid and Solid Additions Funnel

RR99049 B14/23 Solid Additions Funnel, Pack 3
RR99079 B24/29 Solid Additions Funnel, Pack 3
RR99048 B14/23 Liquid Additions Dropping Funnel + Pressure Equalising Arm, Pack 3
RR99078 B24/29 Liquid Additions Dropping Funnel + Pressure Equalising Arm, Pack 3

Evaporation Adapters, Splash Heads and Evaporation Flasks

RR99045 Rotary Evaporator Adapters Rodaviss B29 Socket to B24 Cone, Pack 2
RR99046 Rotary Evaporator Adapters Ordinary B29 Socket to B24 Cone, Pack 2
RR99055 Rotary Evaporator Adapters USA 24/40 Socket to B24 Cone, Pack 2
RR99083 Splash Head Rodaviss B29 Socket to B24 Cone
RR99084 Splash Head Ordinary B29 Socket to B24 Cone
RR99085 Splash Head USA 24/40 Socket to B24 Cone
RR99053 250ml EZ-2/HT Evaporation Flask (Compatible with Genevac Evaporators), Pack 4

Flasks are NOT supplied with reflux tubes or PTFE caps, these must be purchased separately

Aluminium Inserts

RR99142 Aluminium Insert for 5ml Reaction Flask, Pack 6
RR99141 Aluminium Insert for 10ml Reaction Flask, Pack 6
RR99140 Aluminium Insert for 25ml Reaction Flask, Pack 6
RR99060 Aluminium Insert for 50ml Reaction Flask, Pack 6
RR99058 Aluminium Insert for 100ml Reaction Flask, Pack 6
RR99057 Aluminium Insert for 170ml Reaction Flask, Pack 6

PTFE Magnetic Stirring Bars

RR98075 Cross Shape Stirring Bar 10mm, Pack 40
RR98091 Cross Shape Stirring Bar 16.5mm RE, Pack 20
RR98096 Elliptical Stirring Bar 10mm RE, Pack 40
RR98097 Elliptical Stirring Bar 15mm RE, Pack 20
RR99064 Elliptical Stirring Bar 25mm RE, Pack 10
RR98070 Octagonal Stirring Bar 13mm, Pack 20
RR98071 Pivot Ring Stirring Bar 12 x 6mm, Pack 40
RR98095 PTFE Magnetic Stirring Bar Evaluation Kit, Pack 30
RR98094 PTFE Magnetic Stirring Bar Retriever 350mm
RR98114 Magnetic Stirring Bar Restrainer

Replacement O-Rings & Quick Release Couplings

RR91060 Nitrile O-Rings 4mm Gas Outlet – Bottom, Pack 50
RR91061 Nitrile O-Rings 3mm Gas Outlet – Top, Pack 50
RR91062 Viton O-Rings 4mm Gas Outlet – Bottom, Pack 50
RR91063 Viton O-Rings 3mm Gas Outlet – Top, Pack 50
RR91065 Quick Release Male, Threaded, No Shut-off (6.4mm ID)
RR91066 Quick Release Female, Barbed 6.4mm, No Shut-off (6.4mm ID)
RR99062 Quick Release Male, Barbed 6.4mm + Shut-off (6.4mm ID), Pack 2
RR99063 Quick Release Male, R/A Barbed 6.4mm + Shut-off (6.4mm ID), Pack 2
RR99065 Quick Release Female, Threaded + Shut-off (6.4mm ID), Pack 2

Rodaviss Caps & Connecting Sets

RR99051 B14/23 Rodaviss Sealing Cap, Pack 10
RR99043 B24/29 Rodaviss Sealing Cap, Pack 10
RR99955 B14/23 Rodaviss Connecting Set, Pack 10
RR99044 B24/29 Rodaviss Connecting Set, Pack 10
RR99080 PTFE/Silicone Septa 20mm – B14/23, Pack 50
RR99081 PTFE/Silicone Septa 24.5mm – B19/26, Pack 50
RR99082 PTFE/Silicone Septa 29mm – B24/29, Pack 50
RR99068 B14/23 Rodaviss Connecting Cap, Pack 10
RR99090 B24/29 Rodaviss Connecting Cap, Pack 10
