Easy-On PTFE reaction caps

Easy-On PTFE caps

Easy-On PTFE reaction caps

Manufactured from chemically-resistant PTFE

  • Attach using a 1/4 turn quick-thread
  • Easy-On push connection to the Carousel’s radial gas system
  • Caps feature a Suba-Seal silicone septa and on/off valve for isolation and removal
  • Storage caps have septa, but no sidearm or valve
  • Caps include a replaceable Nitrile O-ring with an optional Viton replacement
  • Replaceable septa allow the addition of reagents or removal of samples
  • All septa are silicone as standard (Viton is available)
Reaction tubes 1 to 20ml with reducing insert

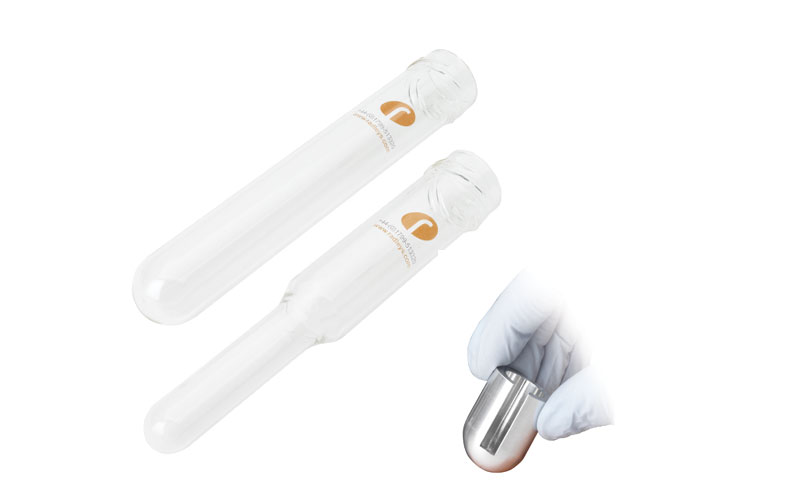

Glass reaction tubes and insert

Individual glass reaction tubes give a working volume of 1 to 20 ml per tube

  • Tubes are 150 mm x 24 mm ø and manufactured from heavy walled borosilicate glass and feature a unique quick-thread for fast attachment to the caps
  • The standard reaction tube has a reaction volume of 5 ml to 20 ml
  • The reduced volume tube has a working volume of 1 to 5 ml (the lower part of these tubes tapers to 16 mm)
  • The reduced volume tubes require the aluminium insert to reduce the well size accordingly

Range

Caps and Tubes

RR91070   Easy-On PTFE Cap, Pack 6
RR91072   Easy-On PTFE Storage Cap, Pack 6
RR98076   Silicone Septa for PTFE Caps, Pack 100
RR98176   Viton Septa for PTFE Caps, Pack 100
RR91080   Quick-Thread Glass Reaction Tube 24x150mm, Pack 6
RR91081   Quick-Thread Glass Reaction Tube 24x150mm, Pack 1
RR91088   Quick-Thread Reduced Volume Tube 24x150mm, Pack 6
RR91089   Carousel 12 Plus Reduced Volume Inserts, Pack 6

PTFE Magnetic Stirrer Bars

RR98070   Octagonal Stirring Bar 13mm, Pack 20
RR98071   Pivot Ring Stirring Bar 12x6mm, Pack 40
RR98075   Cross Shape Stirring Bar 10mm, Pack 40
RR98091   Cross Shape Stirring Bar 16.5mm – Rare Earth, Pack 20
RR98096   Elliptical Stirring Bar 10mm – Rare Earth, Pack 40
RR98097   Elliptical Stirring Bar 15mm – Rare Earth, Pack 20
RR98113   Cylindrical Stirring Bar 12mm – Rare Earth, Pack 20
RR98094   PTFE Magnetic Stir Bar Retriever 350mm
RR98095   PTFE Magnetic Stir Bar Evaluation Kit, Pack 30
RR98114   Stirring Bar Restrainer

Racks and Other Accessories

RR98901   Zinc Plated Wire Rack for 36x24mm Carousel Tubes
RR98902   Zinc Plated Wire Rack for 40x24mm Carousel Tubes
RR98903   Zinc Plated Wire Rack for 80x24mm Carousel Tubes
RR98906   Black Lab Marker (writes on glass, metal and plastic), Pack 10

Spare Parts & Replacement O-rings

RR98160   O-Rings for Caps – Viton 24mm, Pack 100
RR98060   O-Rings for Caps – Nitrile 24mm (standard), Pack 100
RR91060   Nitrile O-Rings 4mm Gas Outlet – Bottom, Pack 50
RR91061   Nitrile O-Rings 3mm Gas Outlet – Top, Pack 50
RR91062   Viton O-Rings 4mm Gas Outlet – Bottom, Pack 50
RR91063   Viton O-Rings 3mm Gas Outlet – Top, Pack 50
RR91065   Quick Release Male Body Coupling No Shut-off
RR91066   Quick Release Barbed Coupling No Shut-off
RR99062   Quick Release Barbed Coupling + Shut-off, Pack 2
RR99063   90° Elbow Quick Release Barbed Coupling + Shut-off, Pack 2
RR99065   Quick Release Male Body Coupling + Shut-off, Pack 2
