Can you provide a second rotor for my Reactor-Ready Pilot stirrer shaft?

We offer three PTFE adjustable rotors that can be added to Reactor-Ready Pilot PTFE stirrers (16 mm shafts). These are usually only used with the larger vessels. Please select the appropriate size adjustable rotor for your vessel.

You can choose from:

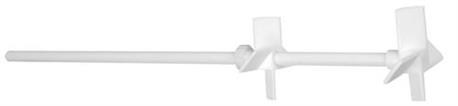

• RR258300: Adjustable PTFE 4 Blade 45 Angle Rotor 16mm OD 100mm Rotor

Which is a turbine shape that forces the product down and creates good axial flow with low shear force.

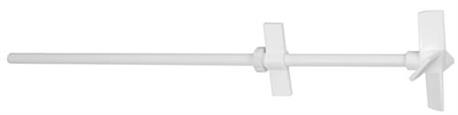

• RR258302: Adjustable PTFE 2 Blade Vertical Rotor 16mm OD 100mm Rotor

Which creates tangential flow with gentle stirring.

You can position an adjustable rotor where you want along the shaft and secure it in place with the glass-filled PTFE locking nut.

Different sizes of adjustable rotors are also available for other jacketed lab reactors such as Reactor-Ready; please see the separate FAQ ‘Can you provide a second rotor for my Reactor-Ready stirrer shaft?’ or contact us for further details.
