Introduction

Researchers at Friedrich Schiller University Jena have published new work exploring a practical route to carboxylic acid α-end-functionalised poly(2-oxazoline)s, using commercially available benzylic initiators for cationic ring-opening polymerisation.

The study, published in Polymer Chemistry by Caroline T. Holick, Nora Engel, Nicole Fritz, Christine Weber and Ulrich S. Schubert, focused on the synthesis of functional poly(2-oxazoline) building blocks for advanced polymer architectures. The research used the Radleys Heat-On Block System as part of the experimental workflow for reflux polymerisation reactions.

Poly(2-oxazoline)s, often abbreviated as POx, are attracting growing interest as potential alternatives to poly(ethylene glycol), particularly in biomedical applications. Their structure can be adapted through careful control of side chains and end groups, making them useful for the development of functional polymers, drug delivery materials and bioconjugation strategies.

A key challenge in this area is the preparation of well-defined POx structures with useful reactive groups at the chain ends. Carboxylic acid groups are particularly valuable because they can support further modification, including the attachment of small molecules, biomolecules, labels or other polymeric building blocks. However, introducing carboxylic acid functionality into POx requires careful synthetic design, as unprotected carboxylic acids can interfere with the cationic ring-opening polymerisation process.

Investigating new initiators for functional POx synthesis

The Friedrich Schiller University Jena team investigated two commercially available bromomethylbenzoate initiators: methyl-3-(bromomethyl)benzoate and methyl-4-(bromomethyl)benzoate. These initiators were selected as potential routes to protected carboxylic acid α-end groups, which could later be converted into free carboxylic acids through hydrolysis.

The researchers compared the performance of the two initiators in the cationic ring-opening polymerisation of 2-oxazolines, including both hydrophilic poly(2-ethyl-2-oxazoline) and hydrophobic poly(2-n-nonyl-2-oxazoline). The work included kinetic studies, detailed end-group analysis and the synthesis of more complex polymer structures, including amphiphilic block copolymers and heterotelechelic polymers.

This level of synthetic control is important because end-group fidelity can strongly influence how a polymer behaves in later modification steps. If a polymer chain lacks the intended reactive end group, it may not perform as expected in subsequent functionalisation or conjugation chemistry.

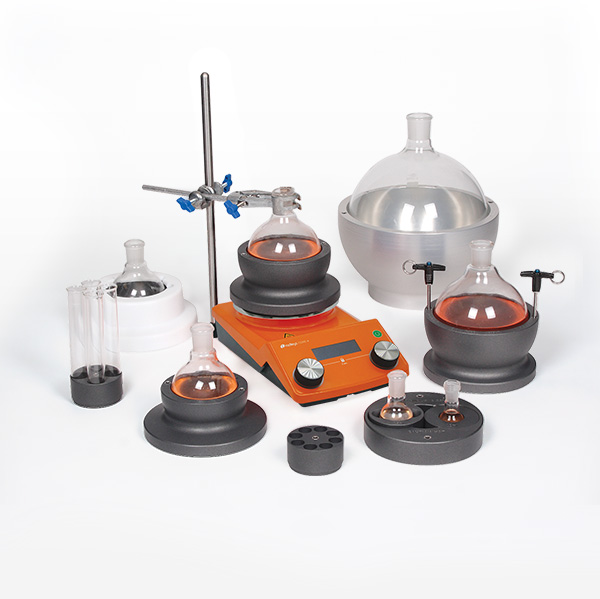

Radleys Heat-On block system. Image shows a wide range of products.

Heat-On in the experimental workflow

The paper reports that, for reflux studies, the polymerisation solutions were heated using a Radleys Heat-On set to 85 °C. These reactions were carried out under a constant gentle flow of argon, with aliquots taken at regular intervals for analysis.

The study compared polymerisation carried out at 140 °C using a microwave synthesiser with polymerisation under reflux conditions at 85 °C. This comparison was important because higher-temperature cationic ring-opening polymerisation can promote chain transfer reactions, leading to proton-initiated polymer chains that lack the desired α-end group.

The results showed that poly(2-ethyl-2-oxazoline) prepared at 140 °C contained more than 20% proton-initiated chains, indicating a significant level of undesired chain transfer. In contrast, when the polymerisation was carried out at 85 °C in acetonitrile under reflux conditions, this chain transfer was almost absent. This made the reflux conditions particularly valuable for preparing polymers with high end-group fidelity.

For chemists working with reflux reactions in round-bottom flasks, Heat-On provides a practical alternative to oil baths and heating mantles. The solid aluminium block design supports routine flask-based synthetic chemistry while helping to avoid the mess, contamination risk and disposal issues associated with oil baths. In this study, Heat-On supported a controlled reflux workflow that was directly relevant to the success of the optimised polymerisation conditions.

Enabling well-defined polymer building blocks

Using the optimised reflux conditions, the researchers found that methyl-3-(bromomethyl)benzoate showed slightly faster initiation than the para-substituted analogue. This initiator was then used for further experiments, including the synthesis of block copolymers and heterotelechelic poly(2-oxazoline)s.

The work demonstrated that the methyl ester α-end groups could be converted into carboxylic acid groups by hydrolysis. Importantly, this deprotection step could be carried out while preserving azide ω-end groups, creating heterotelechelic polymers with orthogonal functionality. This means the polymers contain different reactive groups at opposite chain ends, allowing selective further modification.

Such polymers are valuable building blocks for advanced materials research. In particular, the combination of carboxylic acid or methyl ester groups with azide functionality opens up routes to further coupling reactions, attachment of functional molecules and construction of more complex polymer architectures.

Conclusion

The research from Friedrich Schiller University Jena demonstrates a straightforward approach to preparing carboxylic acid α-end-functionalised poly(2-oxazoline)s using commercially available benzylic initiators. By optimising the reaction conditions, the team showed that high end-group fidelity could be achieved while reducing undesired chain transfer.

Radleys Heat-On was used as part of the reflux polymerisation workflow, supporting reactions carried out at 85 °C in acetonitrile. These lower-temperature reflux conditions played an important role in the study, helping the researchers access well-defined functional POx structures suitable for further modification.

This case study highlights how practical heating tools can support advanced synthetic polymer research. For laboratories carrying out reflux chemistry in round-bottom flasks, Heat-On offers a safer, cleaner and more convenient alternative to traditional oil baths, while maintaining the flexibility needed for research-scale synthesis.

Link to paper: https://pubs.rsc.org/en/content/articlelanding/2026/py/d6py00309e
