Why process chemists are moving reactor development to smaller scales

One of the biggest differences between exploratory flask chemistry and process development chemistry is the level of control required.

When chemists begin investigating:
• reaction robustness
• heat transfer
• addition profiles
• mixing efficiency
• crystallisation behaviour
• scalability

…the reaction setup itself becomes increasingly important.

Stirrer hotplates can work well for simple chemistry, but they do not always reflect the conditions used later in development or manufacturing. Overhead stirring, controlled jacket temperatures, and reactor-style vessel geometry can all have a significant impact on reaction performance and reproducibility.

This is where small-scale jacketed reactors are becoming increasingly valuable.

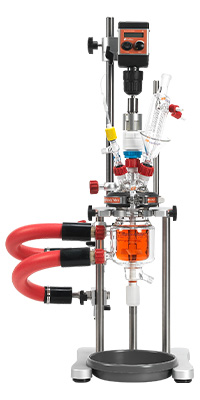

The Reactor-Ready Mini was developed to bring genuine reactor control to small-scale reactions, with vessels from 50 to 500 mL, allowing chemists to begin process development work earlier while maintaining conditions more representative of larger-scale reactor systems.

One of the biggest challenges in process development is ensuring chemistry behaves consistently as scale changes.

A reaction that performs well in a flask may behave very differently once transferred into a reactor system with different mixing characteristics, thermal transfer properties, or vessel geometry. This can create additional development work later in a project, particularly when moving towards pilot-scale or manufacturing environments.

Rather than treating small-scale chemistry and larger-scale development as completely separate workflows, many chemists now prefer to introduce reactor-style conditions earlier in the process.

Reactor-Ready Mini uses the same vessel geometry found across the wider Reactor-Ready range, helping chemists generate data under conditions that more closely resemble larger reactor systems. The vessels feature a scale-up-friendly geometry with a 1.25:1 height-to-diameter ratio and torispherical dish-shaped base, supporting more consistent mixing and heat transfer behaviour across scales.

This continuity becomes particularly valuable when projects progress from reaction optimisation into scale-up studies or process transfer activities.

Reactor-Ready Mini also supports effective scale-down studies, allowing process chemists to recreate larger-scale reactor conditions at smaller working volumes. This can be especially useful when investigating process issues, screening variables, reducing material consumption and waste, or generating supporting data without occupying larger reactor systems.

Small-scale chemistry is often assumed to be simpler chemistry. In reality, reactions performed at small volumes can still involve:
• sensitive temperature profiles
• viscous solutions or slurries
• controlled additions
• gas evolution
• exothermic behaviour
• crystallisation steps

Under these conditions, consistent mixing and accurate thermal control become essential.

Unlike magnetic stirring, overhead stirring can provide more representative mixing performance for process development work, particularly when handling suspensions or more demanding chemistries. Reactor-Ready Mini combines overhead stirring with jacketed temperature control, allowing chemists to move beyond the limitations of traditional flask setups while still working at small scale.

The system also supports jacket temperatures from -70 °C to +230 °C, enabling a wide range of synthetic and process chemistry applications.

Although compactness is not the primary driver for adopting reactor systems at smaller scales, it remains an important practical advantage.

Fumehood space is often limited, particularly in busy process chemistry laboratories running multiple projects simultaneously. Reactor-Ready Mini was designed with a compact footprint while still delivering the functionality expected from a jacketed lab reactor.

Reactor-Ready Mini also supports rapid, tool-free vessel exchange, allowing chemists to switch between vessel sizes or projects efficiently. Combined with reduced solvent and material usage at smaller scales, this can help teams work more efficiently while minimising waste.

As chemistry progresses, development workflows often need to evolve quickly. Reactions that begin at 50 or 100 mL may later require transfer into litre-scale or pilot-scale systems.

The wider Reactor-Ready range is designed to support this progression, with scalable reactor systems available from 50 mL through to 35 L. By maintaining a consistent approach to vessel geometry and reactor design across the range, chemists can scale chemistry more confidently without needing to completely redesign their workflow at each stage.

For many teams, this means Reactor-Ready Mini is not simply a small reactor. It is an entry point into a more scalable and controlled approach to process chemistry.
