Reactor-Ready Vessels and Accessories

Reactor-Ready Standard Vessels

Single and vacuum jacketed vessels from 250 ml to 3 litres

  • Single and vacuum jacketed options.

  • 250 ml to 5 litres

  • Custom styles and sizes available on request

  • Precision-engineered borosilicate glass

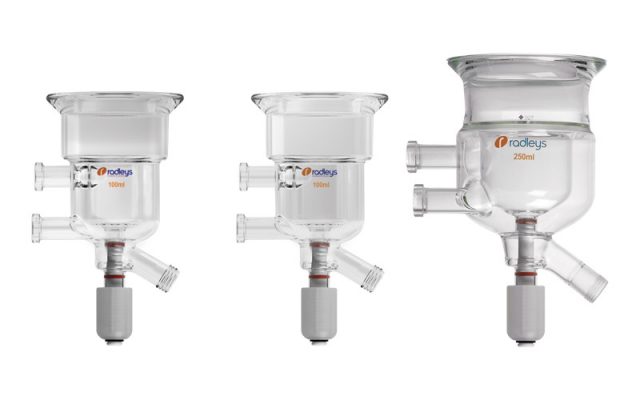

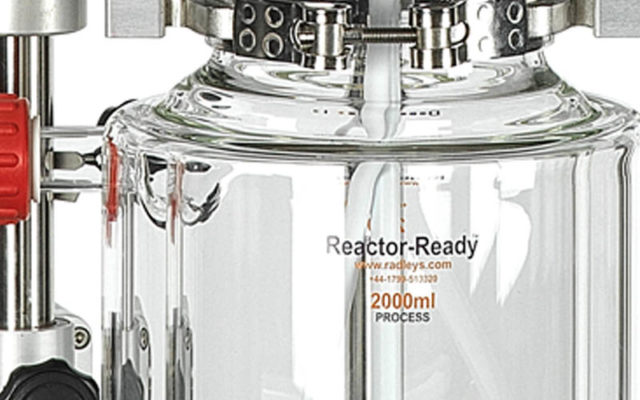

Reactor-Ready Process Vessels

Process Vessels mimic the geometry of plant scale reactors and feature a 1.25 to 1 ratio of internal height to internal diameter, with dish shaped bottom

  • Single and vacuum jacketed options.

  • 100 ml to 5 litres

  • Custom styles and sizes available on request

  • Precision-engineered borosilicate glass

Reactor-Ready Vessels

Standard Reactor-Ready Vessel Features

  • DN100 ground and polished flat flange combines with the FEP encapsulated O-ring and our unique self-centering PTFE collar to offer a leak-tight seal between the vessel and lid (supplied separately)
  • Convenient and cost effective vessel kits include stirrer, temperature probe and side-arm coupling

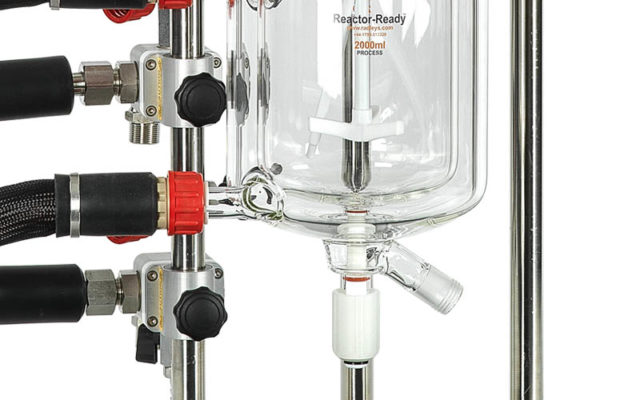

V4 Zero Dead Space Drain Stopcock

V4 Zero Dead Space Drain Stopcock

  • Exclusive stopcock design prevents over-tightening that can cause glass breakage.
  • Piston design allows quick and safe removal, eliminating the cleaning and assembly problems associated with other stopcock styles.
  • Glass filled PTFE piston prevents leaking or weeping across the full temperature range (-70 ºC to +230 ºC).
  • Interchangeable between vessels with a full range of replacement parts and FEP O-rings.
  • The large 15 mm bore minimises sample hold-up and is ideal for slurries (25 mm available on request)

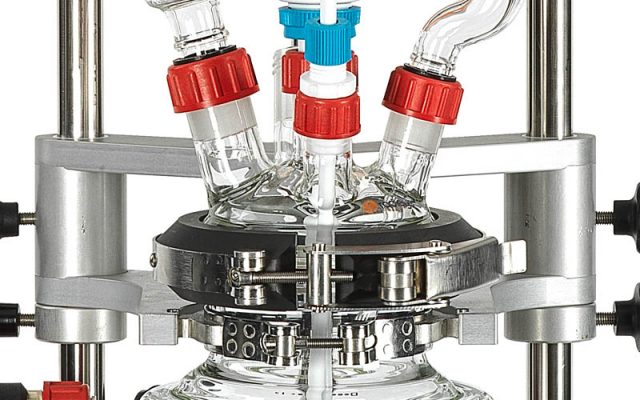

Reactor ready

DN100 5 neck Glass Lid fits all Vessel sizes

  • Supplied as part of the Reactor-Ready Core
  • DN100 lid with 5 x Rodaviss, grease-free, safety joints.
  • All Rodaviss joints are interchangeable with ordinary A, B and C length conical joints.
  • Rodaviss A length joints available if required
PTFE Stirrer Shafts

PTFE Stirrer Shafts

Wide choice of PTFE Stirring Shafts to suit your application
  • Reactor-Ready is offered with a choice of PTFE Stirring Shafts: Anchor, Retreat Curve and Turbine or Propeller styles
  • PTFE Anchor Stirring Shaft is included with all standard reaction vessel kits
  • PTFE Turbine Stirring Shaft is included with all process reaction vessel kits

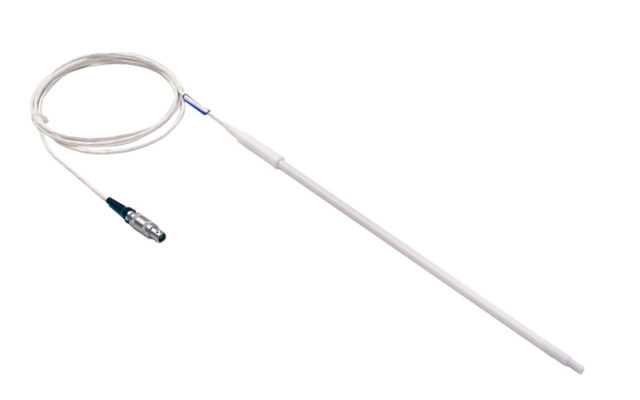

PTFE Pt100 Temperature Probes

PTFE Pt100 Temperature Probes

Wide choice of PTFE Pt100 temperature probes and adapters to suit your vessel
Reactor-Ready Glassware

Reactor-Ready Glassware

Glassware features Rodaviss joints and is compatible with the Reactor-Ready lid:

  • Condensers
  • Dropping funnels
  • Adapters
  • Reflux Divider Heads
  • Gas purge
  • Oil Bubbler
  • Solid Additions Funnel
  • Swan Neck Adapter
  • Clamps and connectors

Standard Reaction Vessel Kits

These cost effective kits include all you need to get started; glass reaction vessel, PTFE Anchor stirrer, sidearm couplings, Pt100 PTFE temperature probe and PTFE probe adapter.

  • RR120010     250ml Single Jacketed Vessel Kit
  • RR120015     250ml Vacuum Jacketed Vessel Kit
  • RR120020     500ml Single Jacketed Vessel Kit
  • RR120025     500ml Vacuum Jacketed Vessel Kit
  • RR120030     1000ml Single Jacketed Vessel Kit
  • RR120035     1000ml Vacuum Jacketed Vessel Kit
  • RR120040     2000ml Single Jacketed Vessel Kit
  • RR120045     2000ml Vacuum Jacketed Vessel Kit
  • RR120042     3000ml Single Jacketed Vessel Kit
  • RR120047     3000ml Vacuum Jacketed Vessel Kit

Standard Reaction Vessel Only

  • RR130250     250ml Single Jacketed Vessel
  • RR130255     250ml Vacuum Jacketed Vessel
  • RR130500     500ml Single Jacketed Vessel
  • RR130550     500ml Vacuum Jacketed Vessel
  • RR131000     1000ml Single Jacketed Vessel
  • RR131050     1000ml Vacuum Jacketed Vessel
  • RR132000     2000ml Single Jacketed Vessel
  • RR132050     2000ml Vacuum Jacketed Vessel
  • RR133000     3000ml Single Jacketed Vessel
  • RR133050     3000ml Vacuum Jacketed Vessel

Process Reaction Vessel Kits

These cost effective kits include all you need to get started; glass reaction vessel, PTFE Turbine stirrer, sidearm couplings, Pt100 PTFE temperature probe and PTFE probe adapter.

  • RR120105     100ml Single Jacketed Process Vessel Kit
  • RR120107     100ml Vacuum Jacketed Process Vessel Kit
  • RR120110     250ml Single Jacketed Process Vessel Kit
  • RR120115     250ml Vacuum Jacketed Process Vessel Kit
  • RR120120     500ml Single Jacketed Process Vessel Kit
  • RR120125     500ml Vacuum Jacketed Process Vessel Kit
  • RR120130     1000ml Single Jacketed Process Vessel Kit
  • RR120135     1000ml Vacuum Jacketed Process Vessel Kit
  • RR120140     2000ml Single Jacketed Process Vessel Kit
  • RR120145     2000ml Vacuum Jacketed Process Vessel Kit
  • RR120142     3000ml Single Jacketed Process Vessel Kit
  • RR120147     3000ml Vacuum Jacketed Process Vessel Kit
  • RR120150     5000ml Single Jacketed Process Vessel Kit
  • RR120155     5000ml Vacuum Jacketed Process Vessel Kit

Process Reaction Vessel Only

  • RR130102    100ml Single Jacketed Process Vessel
  • RR130152    100ml Vacuum Jacketed Process Vessel
  • RR130252    250ml Single Jacketed Process Vessel
  • RR130257    250ml Vacuum Jacketed Process Vessel
  • RR130502    500ml Single Jacketed Process Vessel
  • RR130552    500ml Vacuum Jacketed Process Vessel
  • RR131002    1000ml Single Jacketed Process Vessel
  • RR131052    1000ml Vacuum Jacketed Process Vessel
  • RR132002    2000ml Single Jacketed Process Vessel
  • RR132052    2000ml Vacuum Jacketed Process Vessel
  • RR133002    3000ml Single Jacketed Process Vessel
  • RR133052    3000ml Vacuum Jacketed Process Vessel
  • RR135002    5000ml Single Jacketed Process Vessel
  • RR135052    5000ml Vacuum Jacketed Process Vessel

PTFE Stirrer Shafts (for Standard Vessels)

  • RR150250     Anchor PTFE Stirrer Shaft – 250ml vessels
  • RR150255     Retreat Curve PTFE Stirrer Shaft – 250ml vessels
  • RR150260     Turbine PTFE Stirrer Shaft – 250ml vessels
  • RR150500     Anchor PTFE Stirrer Shaft – 500ml vessels
  • RR150505     Retreat Curve PTFE Stirrer Shaft – 500ml vessels
  • RR150510     Turbine PTFE Stirrer Shaft – 500ml vessels
  • RR151000     Anchor PTFE Stirrer Shaft – 1000ml vessels
  • RR151005     Retreat Curve PTFE Stirrer Shaft – 1000ml vessels
  • RR151010     Turbine PTFE Stirrer Shaft – 1000ml vessels
  • RR152000     Anchor PTFE Stirrer Shaft – 2000ml vessels
  • RR152005     Retreat Curve PTFE Stirrer Shaft – 2000ml vessels
  • RR152010     Turbine PTFE Stirrer Shaft – 2000ml vessels
  • RR153000     Anchor PTFE Stirrer Shaft – 3000ml vessels
  • RR153005     Retreat Curve PTFE Stirrer Shaft – 3000ml vessels
  • RR153010     Turbine PTFE Stirrer Shaft – 3000ml vessels

PTFE Stirrer Shafts (for Process Vessels)

  • RR150102     Anchor PTFE Stirrer Shaft – 100ml Process Vessels
  • RR150107     Retreat Curve PTFE Stirrer Shaft – 100ml Process Vessels
  • RR150112     Turbine PTFE Stirrer Shaft – 100ml Process Vessels
  • RR150252     Anchor PTFE Stirrer Shaft – 250ml Process Vessels
  • RR150257     Retreat Curve PTFE Stirrer Shaft – 250ml Process Vessels
  • RR150262     Turbine PTFE Stirrer Shaft – 250ml Process Vessels
  • RR150502     Anchor PTFE Stirrer Shaft – 500ml Process Vessels
  • RR150507     Retreat Curve PTFE Stirrer Shaft – 500ml Process Vessels
  • RR150512     Turbine PTFE Stirrer Shaft – 500ml Process Vessels
  • RR151002     Anchor PTFE Stirrer Shaft – 1000ml Process Vessels
  • RR151007     Retreat Curve PTFE Stirrer Shaft – 1000ml Process Vessels
  • RR151012     Turbine PTFE Stirrer Shaft – 1000ml Process Vessels
  • RR152002     Anchor PTFE Stirrer Shaft – 2000ml Process Vessels
  • RR152007     Retreat Curve PTFE Stirrer Shaft – 2000ml Process Vessels
  • RR152012     Turbine PTFE Stirrer Shaft – 2000ml Process Vessels
  • RR153002     Anchor PTFE Stirrer Shaft – 3000ml Process Vessels
  • RR153007     Retreat Curve PTFE Stirrer Shaft – 3000ml Process Vessels
  • RR153012     Turbine PTFE Stirrer Shaft – 3000ml Process Vessels
  • RR155002     Anchor PTFE Stirrer Shaft – 5000ml Process Vessels
  • RR155007     Retreat Curve PTFE Stirrer Shaft – 5000ml Process Vessels
  • RR155012     Turbine PTFE Stirrer Shaft – 5000ml Process Vessels

PTFE Pt100 Temperature Probes and Adapters

  • RR140250   Pt100 Probe 8mm with Lemo Plug – 250ml and 500ml vessels
  • RR141000   Pt100 Probe 9mm with Lemo Plug – 1000ml, 2000ml and 3000ml vessels
  • RR145000   Pt100 Probe 9mm with Lemo Plug – 5000ml vessels
  • RR140010   PTFE Temperature Probe Adapter – 8mm
  • RR140015   PTFE Temperature Probe Adapter – 9mm

Glassware Accessories

  • RR139005     Condenser Liebig 250mm B29 + GL14 + fittings
  • RR139007     Condenser Double Surface 200mm B29 + GL14 + fittings
  • RR139009     Condenser Jacket Coil Rodaviss B29 + GL14 + fittings
  • RR139011     Right Angle Adapter B29 + GL14 + PTFE fittings
  • RR139013     50ml Graduated Dropping Funnel Equalising Arm B24
  • RR139015     100ml Graduated Dropping Funnel Equalising Arm B24
  • RR139017     250ml Graduated Dropping Funnel Equalising Arm B24
  • RR139019     500ml Graduated Dropping Funnel Equalising Arm B24
  • RR139021     1000ml Graduated Dropping Funnel Equalising Arm B2
  • RR139023     Swan Neck Adapter B24 to B24
  • RR139025     Gas Purge Adapter B24 + GL14 + fittings
  • RR139027     Glass Cone Stopper B19
  • RR139029     Glass Cone Stopper B24
  • RR139031     Glass Cone Stopper B29
  • RR139033     Glass Cone Stopper B34
  • RR139034     Enlarging Adapter B19 to B24
  • RR139035     Enlarging Adapter B24 to B29
  • RR139037     Enlarging Adapter B29 to B34
  • RR139039     Reducing Adapter B24 to B19
  • RR139041     Reducing Adapter B29 to B19
  • RR139043     Reducing Adapter B29 to B24
  • RR139045     Reducing Adapter B34 to B19
  • RR139047     Reducing Adapter B34 to B24
  • RR139049     Reducing Adapter B34 to B29
  • RR139051     Oil Bubbler Type 1 B24 + GL14 + fittings
  • RR139053     Solid Additions Funnel B34 (with extended tube)
  • RR139057     Valved Liquid Inlet Adapter B24 to GL14
  • RR139059     Reflux Divider Head B29
  • RR139061     Reflux Divider Head Receiver Bend B24
  • RR139062     Reflux Divider Ball Joint Clip S19
  • RR139063     PTFE Hose Adapter B19 for 12mm ID Tubing
  • RR139067     Boss Head
  • RR139069     3-Prong Clamp
  • RR139079     PTFE Flexible Bellows B24
  • RR139081     PTFE Flexible Bellows B29
  • RR139083     PTFE Flexible Bellows B34
  • RR139091     Feed Adapter Rodaviss B24 to GL14
