Pilot Reaction Vessel Features

Reactor-Ready Pilot Process Reaction Vessel Features

  • Jacketed and vacuum jacketed vessels with dish shaped bottom.
  • Feature a 1.25 to 1 ratio of internal height to diameter to mimic the geometry of plant scale reactors.
  • Range of single vessels from 5 litres to 20 litres.
  • Range of vacuum jacketed vessels from 5 litres to 10 litres.
  • Custom styles and sizes available on request.
  • Precision engineered borosilicate glass vessels with DN200 flange.
Reactor-Ready Pilot Glass Lids

Reactor-Ready Pilot Process Reaction Vessel Features

  • Double or vacuum jacketed vessels provide transparent insulation for faster cooling, lower temperatures and reduces frosting for improved contents visibility.
  • DN200 ground and polished flat flange combines with the FEP encapsulated O-ring and a unique self-centering PTFE collar to offer a leak-tight seal between the vessel and lid.
  • Convenient and cost effective vessel kits include stirrer, temperature probe and side-arm coupling.

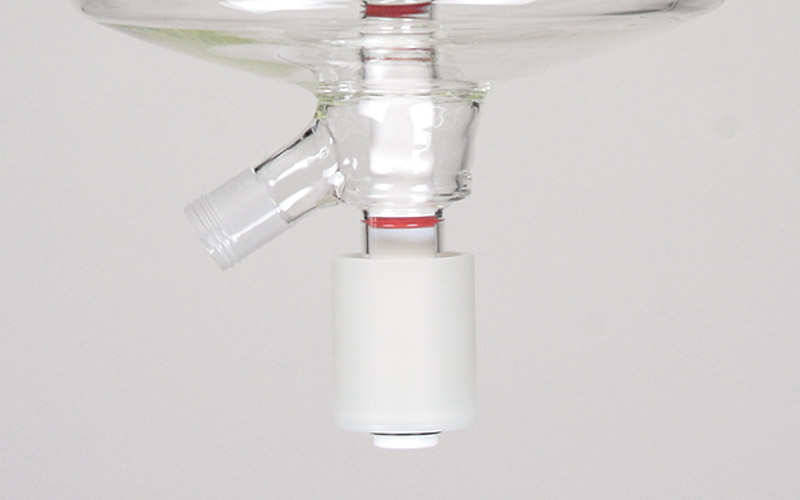

Vessels feature V5 Zero Dead Space Drain Stopcock

Vessels feature V5 Zero Dead Space Drain Stopcock

  • Exclusive stopcock design prevents over-tightening that can cause glassbreakage
  • Piston design allows quick and safe removal, eliminating the cleaning and assembly problems associated with other stopcocks
  • Glass-filled PTFE pistons operate across the full temperature range -70 ºC to +230 ºC
  • Pistons are interchangeable between vessels with a full range of replacement parts and FEP O-rings
  • We recommend using Chemraz O-rings for temperatures above +150 ºC
  • The large 25 mm bore pistons minimise sample hold-up and are ideal for slurries

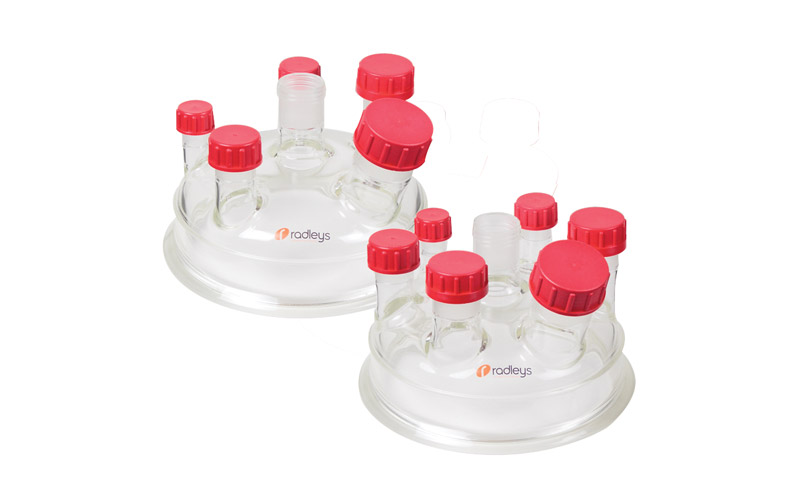

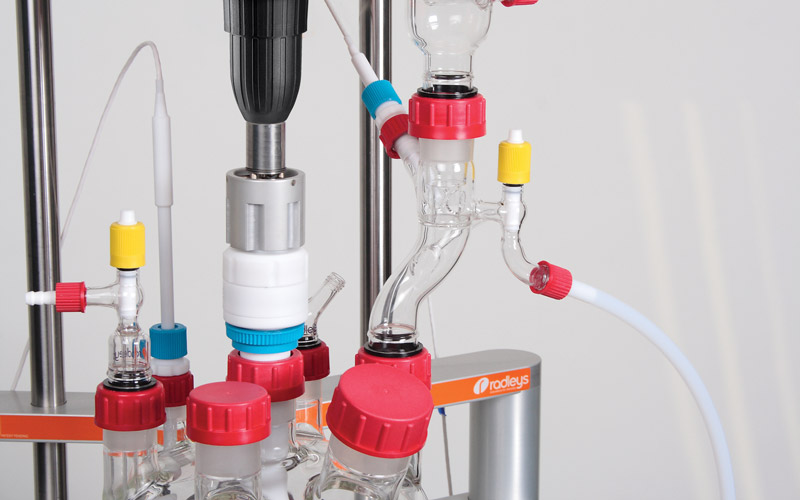

Reactor-Ready Pilot Process Vessel Lids

Reactor-Ready Pilot Process Vessel Lids

Choose from two precision ground standard configurations or request a custom design.

  • DN200 Glass lids fit all vessel sizes:
  • DN200 lid with either 6 or 7, Rodaviss conical ground glass joints
  • Rodaviss joints are grease free, will not jam and are interchangeable with ordinary 1-in-10 B and A length tapered conical joints
  • Rodaviss A length joints are also available
Reactor Ready PTFE Stirring Shaft

PTFE Stirrer Shafts

  • Chemically inert PTFE rotors moulded onto a 16 mm ø PTFE encapsulated metal core
  • Available in Anchor, Retreat Curve and Turbine or Propeller styles
  • PTFE Turbine Stirring Shaft is included with all Pilot vessel kits

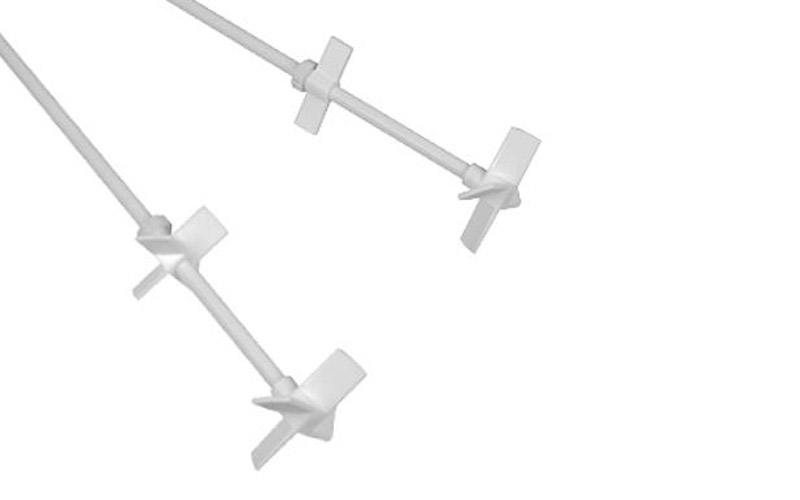

PTFE Adjustable Rotors

PTFE Adjustable Rotors

  • Fit 16 mm shafts and can be position anywhere along shaft
  • Chemically inert PTFE with glass filled PTFE locking nut
  • RR258300 – 4 blade 45˚ Angle Rotor forces the product down and creates good
    axial flow with low shear force
  • RR258302 – 2 Blade Vertical Rotor creates tangential flow with gentle stirring

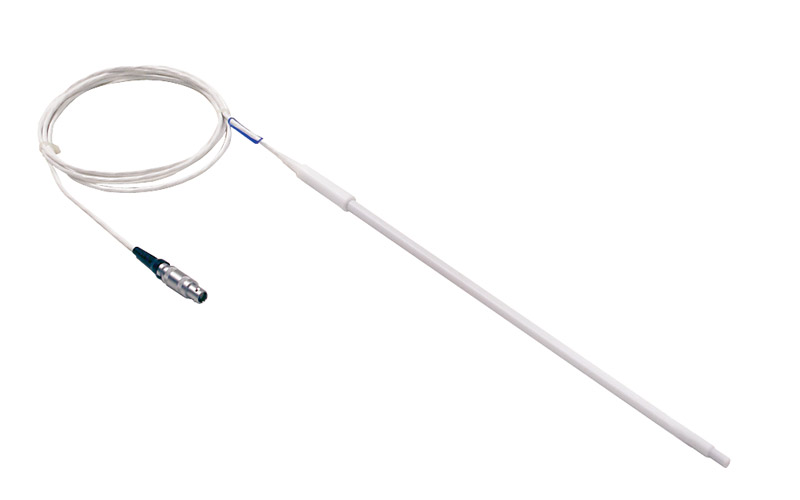

Reactor-Ready Pilot PTFE Pt100 Temperature Probes and Adapters

Reactor-Ready Pilot PTFE Pt100 Temperature Probes and Adapters

Wide choice of Pilot PTFE Pt 100 Temperature probes to suit your application
Reactor-Ready Pilot Reflux Divider Kits

Reactor-Ready Pilot Reflux Divider Kits

Reflux divider kits allow condensed vapours to be either refluxed back into the reactor or diverted into a separate receiving vessel.

  • Choice of receiving flasks 500 ml, 1, 2 and 5 litre. All receiver flasks feature three necks,decanting stopcock and are suitable for stacking. Receiver flasks must be ordered separately
  • Reflux divider kits are available with optional vapour temperature sensor

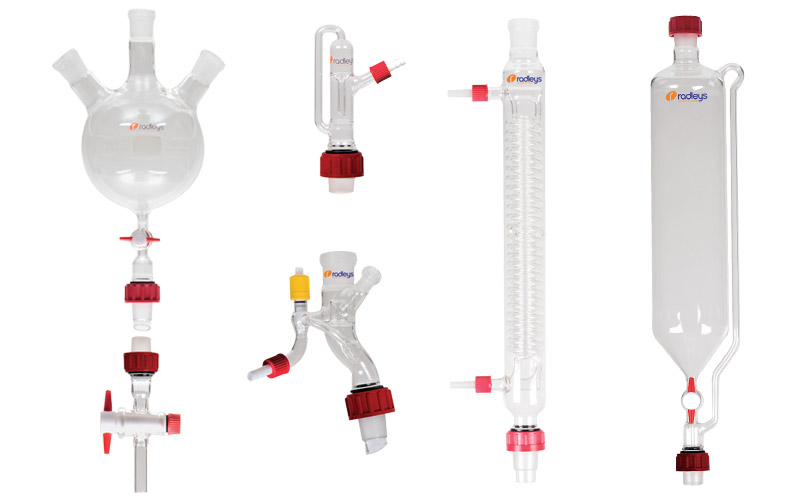

Reactor Ready Pilot Glassware

Reactor-Ready Pilot glassware

Wide choice of standard glassware and accessories to suit your application

Process Reaction Vessel Specifications



Pilot Single Jacketed Reaction Vessels

5 litre 10 litre 15 litre 20 litre
Cat No. (Vessel Only) RR235050 RR235100 RR235150 RR235200
Cat No. (Vessel Kit) RR220005 RR220015 RR220025 RR220035
Nominal Capacity 5 Litres 10 Litres 15 Litres 20 Litres
Total Working Volume 5.6 Litres 12.9 Litres 16.4 Litres 22.7 Litres
Internal Diameter 180 mm 240 mm 260 mm 290 mm
External Diameter 250 mm 300 mm 315 mm 350 mm
Jacketed Height 230 mm 300 mm 325 mm 363 mm
External Height 526 mm 606 mm 640 mm 674 mm
Thermofluid Jacket Volume 4.6 Litres 6.7 Litres 5.7 Litres 10.3 Litres
Heat Transfer Area 0.16m2 0.27m2 0.31m2 0.38 m2
Flange DN200
Sidearm 20mm ID Reactor-Ready
Piston V5 Zero Dead Space 25 mm Glass Filled PTFE
Piston Run-off B24 Rodaviss Socket



Pilot Vacuum Jacketed Reaction Vessels

5 litre 10 litre
Cat No. (Vessel only) RR235052 RR235102
Cat No. (Vessel Kit) RR220010 RR220020
Nominal Capacity 5 Litres 10 Litres
Total Working Volume 5.6 Litres 12.9 Litres
Internal Diameter 180 mm 240 mm
External Diameter 300 mm 350 mm
Jacketed Height 225 mm 300 mm
External Height 541 mm 623 mm
Thermofluid Jacket Volume 3.9 Litres 5.4 Litres
Heat Transfer Area 0.16 m2 0.27 m2
Flange DN200
Sidearm 20 mm ID Reactor-Ready
Piston V5 Zero Dead Space 25 mm Glass Filled PTFE
Piston Run-off B24 Rodaviss Socket



Range

Process Reaction Vessel Kits

Comprises: glass reaction vessel, PTFE Turbine stirrer, sidearm couplings, Pt100 PTFE temperature probe and PTFE probe adapter.

RR220005     5L Single Jacketed Pilot Process Vessel Kit
RR220015     10L Single Jacketed Pilot Process Vessel Kit
RR220025     15L Single Jacketed Pilot Process Vessel Kit
RR220035     20L Single Jacketed Pilot Process Vessel Kit

RR220010     5L Vacuum Jacketed Pilot Process Vessel Kit
RR220020     10L Vacuum Jacketed Pilot Process Vessel Kit

Jacketed and Vacuum Jacketed Reaction Vessels

RR235050     5L Single Jacketed Pilot Vessel
RR235100     10L Single Jacketed Pilot Vessel
RR235150     15L Single Jacketed Pilot Vessel
RR235200     20L Single Jacketed Pilot Vessel

RR235052     5L Vacuum Jacketed Pilot Vessel
RR235102     10L Vacuum Jacketed Pilot Vessel

Reactor-Ready Pilot Process Vessel Lids

RR236000 – 6 Neck DN200 Lid

1 x B34 central vertical – stirrer
1 x B19 side vertical – probe
1 x B24 side vertical – gas purge
1 x B29 side vertical – drop funnel, bubbler, liquid inlet adapter
1 x B34 side vertical – condenser and reflux
1 x B45 side angled – solid additions

RR236002 – 7 Neck DN200 Lid

1 x B34 central vertical – stirrer
1 x B19 side vertical – probe
1 x B24 side vertical – gas purge
1 x B29 side vertical – drop funnel, bubbler, liquid inlet adapter
2 x B34 side vertical – condenser and reflux
1 x B45 side angled – solid additions

PTFE Stirrer Shafts

RR258051     Anchor PTFE Stirrer Shaft – 5L Pilot Vessels
RR258052     Retreat Curve PTFE Stirrer Shaft – 5L Pilot Vessels
RR258053     Turbine PTFE Stirrer Shaft – 5L Pilot Vessels

RR258101     Anchor PTFE Stirrer Shaft – 10L Pilot Vessels
RR258102     Retreat Curve PTFE Stirrer Shaft – 10L Pilot Vessels
RR258103     Turbine PTFE Stirrer Shaft – 10L Pilot Vessels

RR258151     Anchor PTFE Stirrer Shaft – 15L Pilot Vessels
RR258152     Retreat Curve PTFE Stirrer Shaft – 15L Pilot Vessels
RR258153     Turbine PTFE Stirrer Shaft – 15L Pilot Vessels

RR258201     Anchor PTFE Stirrer Shaft – 20L Pilot Vessels
RR258202     Retreat Curve PTFE Stirrer Shaft – 20L Pilot Vessels
RR258203     Turbine PTFE Stirrer Shaft – 20L Pilot Vessels

PTFE Adjustable Rotors

RR258300     Adjustable PTFE 4 Blade 45 Angle Rotor 16mm OD 100mm Rotor
RR258302     Adjustable PTFE 2 Blade Vertical Rotor 16mm OD 100mm Rotor

PTFE Pt100 Temperature Probes & Adapters

RR145000     Pt100 PTFE Temp. Probe 9mm + Lemo Plug – 5L to 10L Vessels
RR146000     Pt100 PTFE Temp. Probe 9mm + Lemo Plug – 15L to 20L Vessels
RR140015     PTFE Temperature Probe Adapter – 9mm

PTFE Baffles + PTFE Probe Baffles

RR257000     PTFE Baffle – 16mm OD, 35mm, 600mm
RR257002     PTFE Baffle – 16mm OD, 35mm, 700mm
RR257004     Pt100 PTFE Baffle Probe + Lemo – 16mm OD, 35mm, 600mm
RR257006     Pt100 PTFE Baffle Probe + Lemo – 16mm OD, 35mm, 700mm
RR257008     B24 to 16mm PTFE Compression Fitting
RR257010     B29 to 16mm PTFE Compression Fitting
RR257012     B34 to 16mm PTFE Compression Fitting

RR239200 - Pilot Reflux Divider Kit

RR139320 – Reflux Divider Head, B34 + GL18 fittings
RR139300 – Large Double Coil Rodaviss Condenser 60mm B34 + GL18 + fittings
RR139012 – Right Angle Adapter B34 + GL14 + PTFE fittings
RR139332 – Adapter Rodaviss B24 to GL25
RR139350 – GL25 HT Compression Fitting for 12mm OD Tubing
RR139354 – PTFE Tubing 10mm ID x 12mm OD – 1m length
RR139360 – 3 x Pilot Boss Head – 22-35mm, 8-12mm
RR139372 – 4-Prong Large Clamp – 10mm rod, 30-80mm
RR139376 – Lower Support Ring – 10m rod, 76mm ID
RR139374 – Universal Clamp Cork Jaws – 10mm rod, 0-80mm
Note: A suitable receiver flask/s RR13934/6/8/30 is required to complete this kit

RR239202 - Pilot Reflux Divider Kit with Vapour Temperature Probe

RR139322 – Reflux Divider Head, B34 + GL18 fittings +B14 temp port
RR139300 – Large Double Coil Rodaviss Condenser 60mm B34 + GL18 + fittings
RR139012 – Right Angle Adapter B34 + GL14 + PTFE fittings
RR139332 – Adapter Rodaviss B24 to GL25
RR139350 – GL25 HT Compression Fitting for 12mm OD Tubing
RR139354 – PTFE Tubing 10mm ID x 12mm OD – 1m length
RR139133 – Pt100 PTFE Temp. Probe (Reflux Divider Head) + 2m Cable
RR139135 – PTFE Temperature Probe Adapter (B14 for Reflux Divider Head)
RR139360 – 3 x Pilot Boss Head – 22-35mm, 8-12mm
RR139372 – 4-Prong Large Clamp – 10mm rod, 30-80mm
RR139374 – Universal Clamp Cork Jaws – 10mm rod, 0-80mm
RR139376 – Lower Support Ring – 10m rod, 76mm ID
Note: A suitable receiver flask/s RR13934/6/8/30 is required to complete this kit

Pilot Clamps and Bosses

RR139360     Pilot Boss Head – 22-35mm, 8-12mm
RR139362     Rod Extender – 10mm, 100mm long, for 10mm rods
RR139364     Rubber Belt Clamp – 10mm rod, 60-170mm
RR139366     Chain Clamp – 10mm rod, 40-120mm
RR139368     Chain Clamp – 10mm rod, 80-150mm
RR139370     Chain Clamp – 10mm rod, 100-170mm
RR139372     4-Prong Large Clamp – 10mm rod, 30-80mm
RR139374     Universal Clamp Cork Jaws – 10mm rod, 0-80mm
RR139376     Lower Support Ring – 10m rod, 76mm ID

Pilot Height Reduction Kits

RR210070     Reactor-Ready Pilot Core – 200mm Height Reduction Kit
RR210072     Reactor-Ready Pilot Core – 300mm Height Reduction Kit

Important: The height reduction kits replace the main upright rods and rear tensioning bars to reduce the overall height of your system by either 200 mm or 300 mm respectively. Ideal for locations where height is restricted.

General Maintenance Accessories

RR210100     Reactor-Ready Pilot Maintenance Kit (includes all items listed below)
Does not include Chemraz O-rings or 25 mm Piston.
RR121027     Oil Wipe for Support Rods, Pk 10
RR121136     Stirrer Guide Bearing Seal B34 16mm
RR121138     Stirrer Guide Ferrule & Shaft Seal B34 16mm
RR121071     23mm Viton O-Rings for Quick Release Hose Coupling, Pk 2
RR210050     34mm Viton O-Rings for Quick Release Hose Coupling – NW20, Pk 2
RR210022     FEP Encapsulated Silicone Vessel O-ring – 200mm
RR166104     Replacement 25mm Piston Top O-Ring FEP, Pk 2
RR166106     Replacement 25mm Piston Middle O-Ring FEP

Important: For temperatures above 150 ˚C we recommend the use of high performance Chemraz piston O-rings to prevent possible weeping. Chemraz O-rings are suitable for temperatures from 0 ˚C to +230 ˚C and should not be used below 0 ˚C.

RR210074     Replacement 25mm Piston Top O-Ring Chemraz (0ºC to 230ºC), Pk 2
RR166070     Piston 25mm for Single & Vacuum Jacketed Vessels

Reactor-Ready Pilot Glass Lids

DN200 Glass Lids fit all Vessel sizes. Choose from two standard configurations with 6 or 7 Rodaviss glass joints or request a custom design: Lids are NOT included with the Pilot core and must be ordered separately

RR236000     6 Neck Lid DN200 – 1xB19, 1xB24, 1xB29, 2xB34, 1xB45
RR236002     7 Neck Lid DN200 – 1xB19, 1xB24, 1xB29, 3xB34, 1xB4
